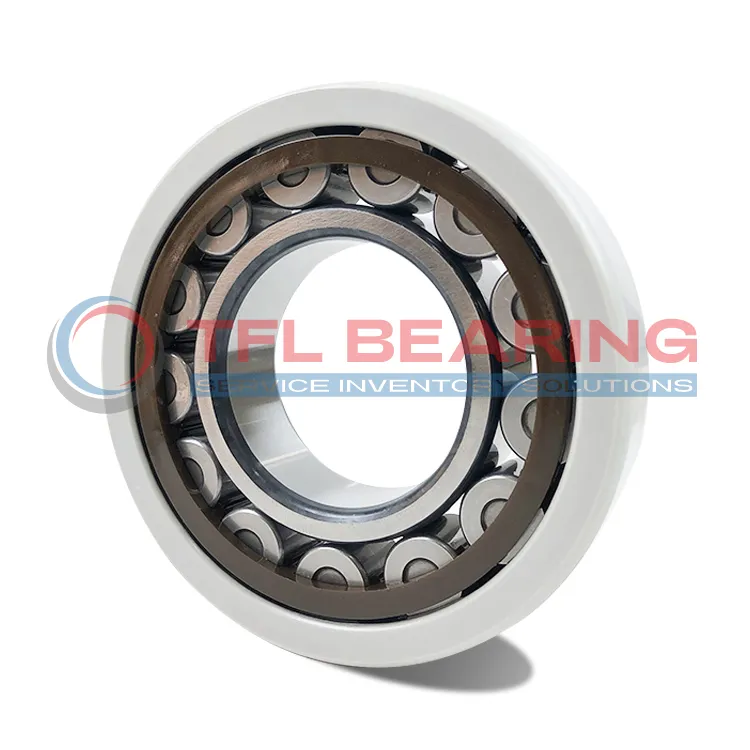

SKF INSOCOAT Cylindrical Roller Bearings NU 1011 ECP/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 1011 ECP/C3VL0241

The SKF INSOCOAT cylindrical roller bearing is a compact unit measuring 55mm by 90mm by 18mm, featuring an insulating coating on its outer ring.
This bearing handles dynamic loads up to 99 kN and operates smoothly at speeds reaching 6000 RPM.
Its nylon cage reduces noise and wear, while the C3 internal clearance accommodates thermal expansion for stable performance.
The insulation protects against electrical currents, making it suitable for electric motors or generators where stray currents are a concern.
Weighing just 0.4 kg, it’s a practical choice for various industrial applications and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 1011 ECP/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 55.0 mm
  • Outside Diameter 90.0 mm
  • Width 18.0 mm
  • Net Weight 0.4 kg
  • Basic Dynamic Load Rating 99.0 kN
  • Basic Static Load Rating 127.0 kN
  • Reference Speed 6000.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Nylon
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Cylindrical Roller Bearings NU 1011 ECP/C3VL0241 dimension drawing
Download DWG Download PDF

Features

Why Choose NU 1011 ECP/C3VL0241 Bearing for Precision Tasks?

NU 1011 ECP/C3VL0241 Bearing features an insulating coating on its outer ring, providing protection against electrical currents.
This design prevents damage from electrical erosion, ensuring consistent performance in electrically active environments.
With a breakdown voltage rating of 1000-3000 VDC, it handles high-voltage applications reliably.
The nylon cage maintains proper roller alignment, contributing to smooth operation and extended service life.

Application

Common Applications of NU 1011 ECP/C3VL0241 Bearing
NU 1011 ECP/C3VL0241 Bearing works well in industrial equipment like machine tools and conveyor systems, where its cylindrical roller design handles radial loads effectively. The insulation coating helps prevent electrical damage in motors and generators.

In automotive applications, NU 1011 ECP/C3VL0241 Bearing supports components like gearboxes and electric motors, providing reliable performance under various speeds. Its C3 clearance accommodates thermal expansion during extended operation.

For medical devices such as imaging equipment and laboratory instruments, NU 1011 ECP/C3VL0241 Bearing’s nylon cage reduces noise and vibration. The insulation coating ensures safety in sensitive electronic environments.

NU 1011 ECP/C3VL0241 Bearing fits automation systems like robotic arms and assembly lines, offering smooth movement with its high dynamic load capacity. The metric dimensions make it easy to integrate into standard machinery designs.
