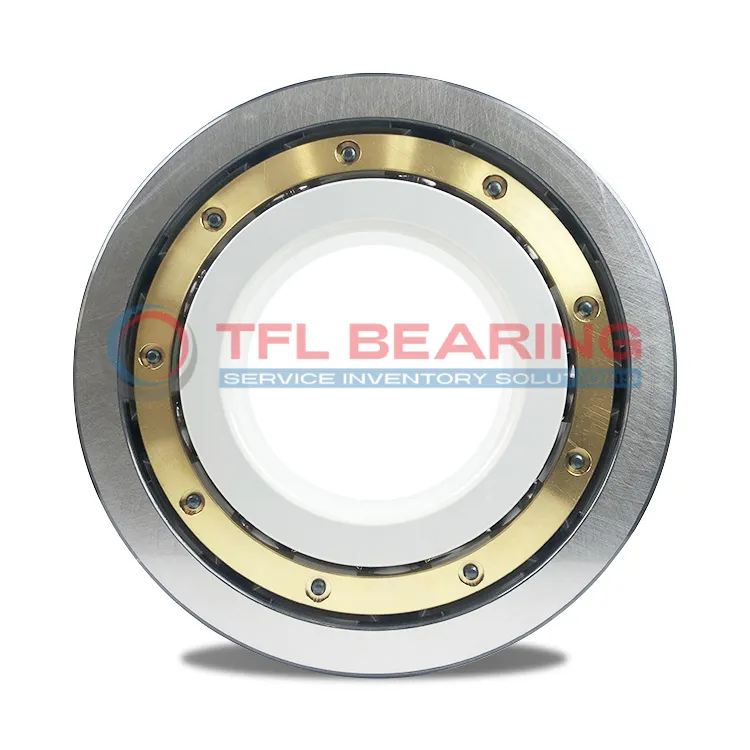

SKF INSOCOAT Bearings 6328M/C3VL2071

SKF INSOCOAT Bearings 6328M/C3VL2071

The SKF INSOCOAT bearing 6328M/C3VL2071 is a robust unit measuring 140mm by 300mm by 62mm, with a brass cage for added durability. It handles dynamic loads up to 265 kN and static loads up to 245 kN, suitable for high-speed applications up to 4800 RPM.

Its inner ring features a 500µm insulating coating (VL2071), providing electrical resistance of 200 MΩ and breakdown voltage up to 3000V. This design prevents electrical arcing, making it ideal for electric motors or generators.

With a C3 radial clearance, it accommodates thermal expansion in demanding environments. The bearing is RoHS compliant, ensuring safe use in industrial settings.

Weighing 21.3kg, it’s a sturdy choice for heavy-duty machinery where electrical insulation is critical. Perfect for wind turbines or large industrial drives.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6328M/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 140.0 mm
  • Outside Diameter 300.0 mm
  • Width 62.0 mm
  • Net Weight 21.3kg
  • Basic Dynamic Load Rating 265.0 kN
  • Basic Static Load Rating 245.0 kN
  • Reference Speed 4800.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

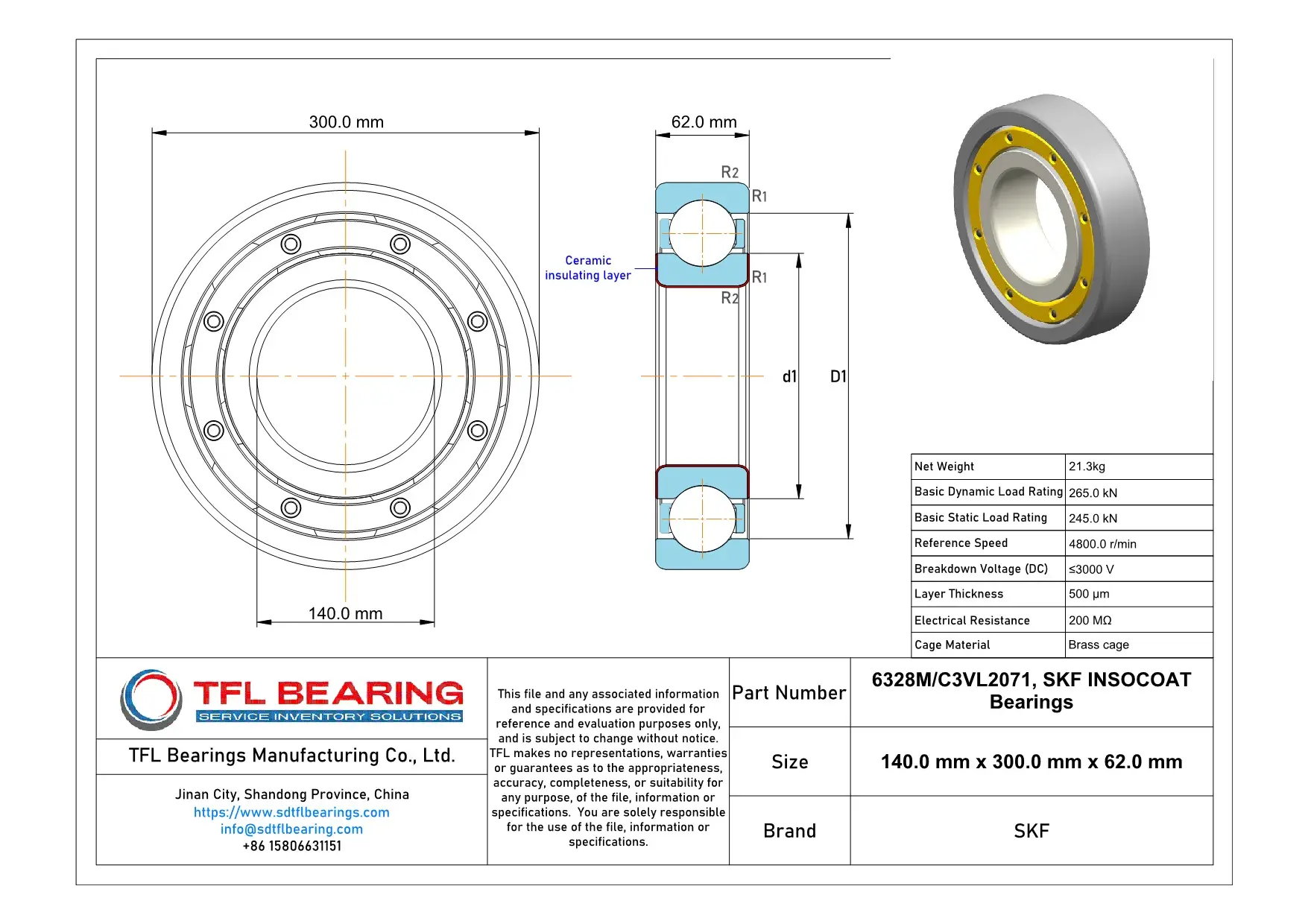

SKF INSOCOAT Bearings 6328M/C3VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6328M/C3VL2071 Bearing Engineered for Reliability?

6328M/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
The brass cage ensures smooth operation and reduces friction, enhancing durability.
With a basic dynamic load rating of 265.0 kN, it handles heavy loads efficiently.
Its breakdown voltage of ≤3000 V makes it suitable for high-voltage environments.

Application

Industrial Uses of 6328M/C3VL2071 Bearing
The 6328M/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical arcing.
This makes it a reliable choice for industries dealing with high-voltage equipment.

What Makes 6328M/C3VL2071 Bearing a Preferred Choice?
With its brass cage and C3 radial clearance, 6328M/C3VL2071 Bearing handles heavy loads and high speeds in industrial fans and pumps.
The insulation coating also ensures long-term performance in electrically demanding environments.

Perfect Fit for Automation: 6328M/C3VL2071 Bearing
In automated production lines, 6328M/C3VL2071 Bearing offers smooth operation and resistance to electrical damage.
Its robust design suits applications like conveyor systems and robotic arms.

Medical vs Industrial: Where 6328M/C3VL2071 Bearing Excels
While 6328M/C3VL2071 Bearing is ideal for industrial machinery, its precision also benefits medical imaging devices.
The insulation coating ensures safety in sensitive environments, making it versatile across sectors.
