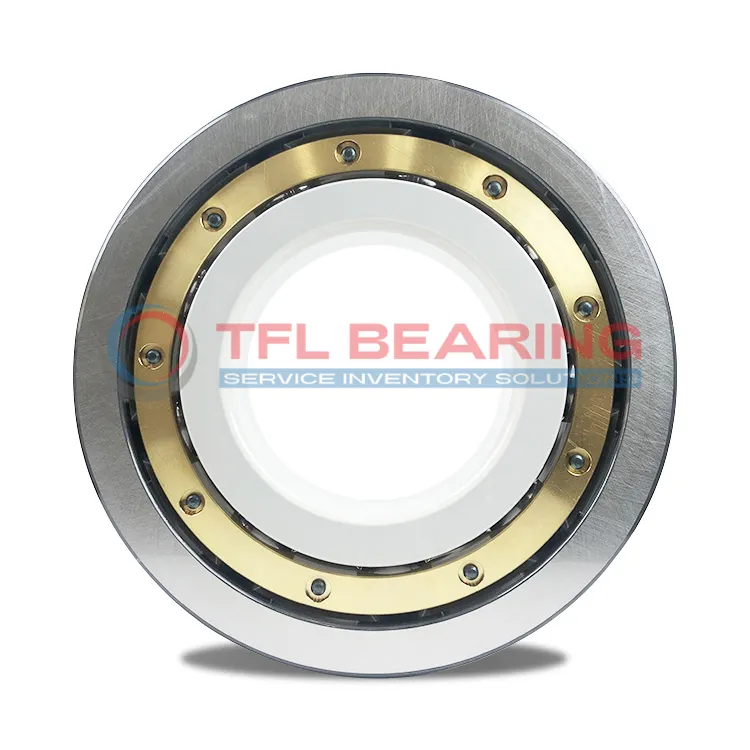

SKF INSOCOAT Bearings 6326M/C3VL2071

SKF INSOCOAT Bearings 6326M/C3VL2071

The SKF INSOCOAT bearing 6326M/C3VL2071 is a robust unit measuring 130mm by 280mm by 58mm, with a brass cage for durability. It features an inner ring insulation coating (VL2071) to prevent electrical damage, making it ideal for electric motors.

With a dynamic load rating of 229kN and a static load rating of 216kN, it handles heavy loads efficiently. Its reference speed of 5000 r/min ensures smooth operation in demanding applications.

The insulating coating offers a breakdown voltage of up to 3000V and an electrical resistance of 200 MΩ, protecting against current leakage. The C3 radial clearance allows for thermal expansion in high-speed settings.

Weighing 17.3kg, this bearing is suitable for industrial machinery, especially where electrical insulation is crucial. It complies with ROHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6326M/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 130.0 mm
  • Outside Diameter 280.0 mm
  • Width 58.0 mm
  • Net Weight 17.3kg
  • Basic Dynamic Load Rating 229.0 kN
  • Basic Static Load Rating 216.0 kN
  • Reference Speed 5000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6326M/C3VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6326M/C3VL2071 Bearing Engineered for Reliability?

6326M/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
The brass cage ensures smooth operation and reduces friction, even at high speeds.
With a basic dynamic load rating of 229.0 kN, it handles heavy loads reliably.
Its reference speed of 5000.0 r/min makes it suitable for high-performance applications.

Application

Industrial Uses of 6326M/C3VL2071 Bearing
The 6326M/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical erosion. This makes it a reliable choice for industries dealing with high-voltage equipment.

In wind turbine applications, 6326M/C3VL2071 Bearing handles heavy radial loads while maintaining smooth rotation. Its brass cage ensures durability even in harsh outdoor conditions.

For railway traction systems, 6326M/C3VL2071 Bearing’s high breakdown voltage and electrical resistance are key features. These properties help avoid current-induced damage in electrified rail networks.

What Makes 6326M/C3VL2071 Bearing a Preferred Choice?
The 6326M/C3VL2071 Bearing is often selected for industrial pumps due to its C3 clearance, which accommodates thermal expansion. This feature ensures consistent performance in variable temperature environments.

In mining equipment, 6326M/C3VL2071 Bearing’s robust design withstands heavy loads and vibrations. The brass cage further enhances its longevity in abrasive conditions.

Built for Heavy-Duty Use: 6326M/C3VL2071 Bearing
The 6326M/C3VL2071 Bearing excels in steel mill applications, where its high dynamic load rating supports rolling machinery. Its insulation coating also protects against stray currents.

For paper manufacturing machines, 6326M/C3VL2071 Bearing’s resistance to electrical damage and high-speed capability are valuable. The combination ensures reliable operation in humid environments.
