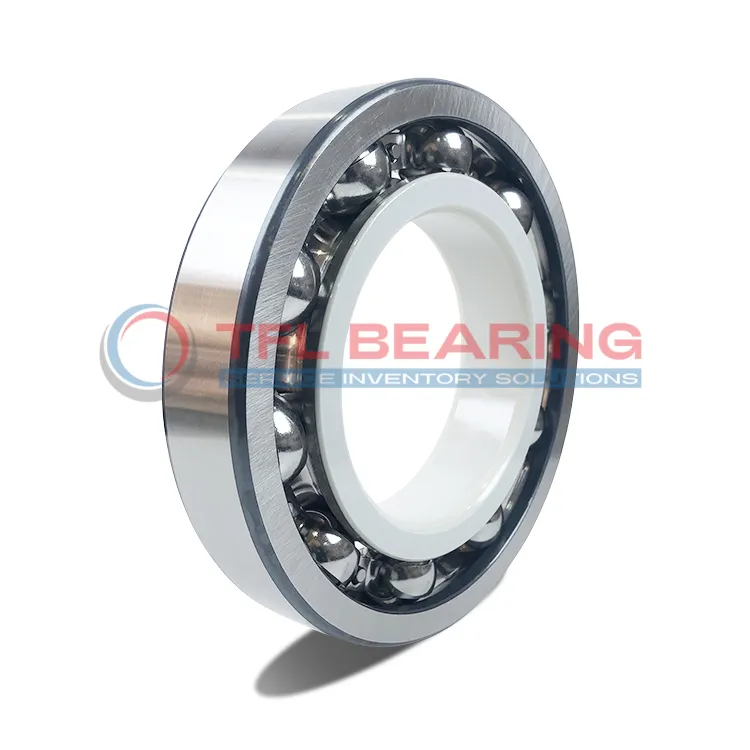

SKF INSOCOAT Bearings 6326/C3VL2071

SKF INSOCOAT Bearings 6326/C3VL2071

The SKF INSOCOAT bearing 6326/C3VL2071 is a robust unit measuring 130mm in bore diameter, 280mm outside, and 58mm wide, with a net weight of 14.7kg. Its inner ring features a 500µm insulating coating, providing electrical resistance up to 200 MΩ.

This bearing handles dynamic loads up to 229 kN and static loads of 216 kN, with a reference speed of 5000 RPM. The C3 radial clearance ensures smooth operation under varying thermal conditions.

The sheet metal cage enhances durability, while the VL2071 coating prevents electrical arcing, ideal for motors or generators. It complies with ROHS standards for environmental safety.

Suitable for high-voltage environments, it offers reliable performance in industrial applications where electrical insulation is crucial. The breakdown voltage stays below 3000 V for consistent protection.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6326/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 130.0 mm
  • Outside Diameter 280.0 mm
  • Width 58.0 mm
  • Net Weight 14.7kg
  • Basic Dynamic Load Rating 229.0 kN
  • Basic Static Load Rating 216.0 kN
  • Reference Speed 5000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6326/C3VL2071 dimension drawing
Download DWG Download PDF

Features

What Makes 6326/C3VL2071 Bearing Suitable for High-Temperature Applications?

6326/C3VL2071 Bearing features an inner ring insulation coating, providing excellent electrical resistance up to 200 MΩ.
This design prevents electrical arcing, making it ideal for high-temperature environments.

With a basic dynamic load rating of 229.0 kN, it handles heavy loads while maintaining performance.
The C3 radial internal clearance ensures smooth operation even under thermal expansion.

Its reference speed of 5000.0 r/min allows for efficient use in various industrial applications.
The sheet metal cage enhances durability, reducing maintenance needs.

Application

Industrial Uses of 6326/C3VL2071 Bearing
The 6326/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical damage. Its high dynamic load rating ensures reliable performance in demanding industrial environments.

Where Is 6326/C3VL2071 Bearing Used?
You’ll often find 6326/C3VL2071 Bearing in wind turbines and large pumps, thanks to its ability to handle high speeds and heavy loads. The C3 radial clearance makes it suitable for applications with thermal expansion concerns.

Built for Heavy-Duty Use: 6326/C3VL2071 Bearing
With a breakdown voltage of up to 3000 V, 6326/C3VL2071 Bearing is ideal for equipment exposed to electrical currents. The sheet metal cage adds durability, making it a solid choice for long-term use.

Automotive vs Aerospace: Applications of 6326/C3VL2071 Bearing
In automotive systems, 6326/C3VL2071 Bearing supports alternators and traction motors, while in aerospace, it’s used in auxiliary power units. Its insulation properties protect against stray currents in both fields.

Perfect Fit for Automation: 6326/C3VL2071 Bearing
The 6326/C3VL2071 Bearing works well in robotic arms and automated machinery, where precision and electrical insulation are key. Its high reference speed ensures smooth operation in fast-paced production lines.
