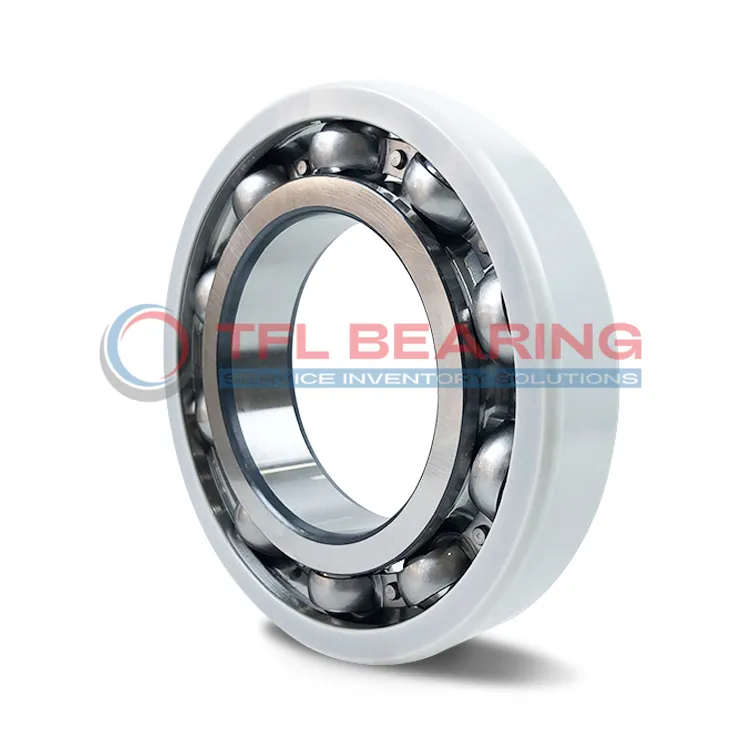

SKF INSOCOAT Bearings 6320/C3VL0241

SKF INSOCOAT Bearings 6320/C3VL0241

The SKF 6320/C3VL0241 is an INSOCOAT bearing with a 100mm bore and 215mm outer diameter, designed for electrical insulation. Its outer ring features a 500µm coating, providing protection against electrical currents up to 3000V.

This bearing handles dynamic loads up to 182kN and spins smoothly at speeds up to 6700 RPM. The C3 radial clearance ensures reliable performance under varying temperatures and loads.

The sheet metal cage offers durability, while the insulation coating prevents electrical damage. It’s ideal for electric motors or generators where electrical currents could cause issues.

Weighing 6.98kg, it’s a robust choice for industrial applications. Compliant with ROHS standards, it’s both safe and reliable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6320/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 100.0 mm
  • Outside Diameter 215.0 mm
  • Width 47.0 mm
  • Net Weight 6.98kg
  • Basic Dynamic Load Rating 182.0 kN
  • Basic Static Load Rating 140.0 kN
  • Reference Speed 6700.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6320/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6320/C3VL0241 Bearing Engineered for Reliability?

6320/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.

The sheet metal cage maintains ball alignment, enhancing durability and performance.
With a basic dynamic load rating of 182.0 kN, it handles heavy loads efficiently.

6320/C3VL0241 Bearing’s breakdown voltage of ≤3000 V makes it suitable for high-voltage applications.
Its reference speed of 6700.0 r/min ensures smooth operation at high speeds.

The C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
This makes 6320/C3VL0241 Bearing a dependable choice for demanding industrial uses.

Application

Industrial Uses of 6320/C3VL0241 Bearing
The 6320/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from damaging the bearing. Its high dynamic load rating makes it suitable for heavy industrial machinery.

Where Is 6320/C3VL0241 Bearing Used?
You’ll often find the 6320/C3VL0241 Bearing in wind turbines, where its insulation properties protect against stray currents. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Optimized for Performance: 6320/C3VL0241 Bearing
In automation systems, the 6320/C3VL0241 Bearing’s sheet metal cage provides durability and reduces friction. Its high reference speed makes it ideal for applications requiring rapid rotation.

Automotive vs Aerospace: Applications of 6320/C3VL0241 Bearing
In automotive alternators, the 6320/C3VL0241 Bearing handles high speeds efficiently. For aerospace applications, its insulation coating adds an extra layer of reliability in sensitive electronic systems.

Essential Roles of 6320/C3VL0241 Bearing
The 6320/C3VL0241 Bearing is a go-to choice for industrial pumps, thanks to its robust construction and resistance to electrical damage. Its wide temperature range ensures performance in diverse environments.
