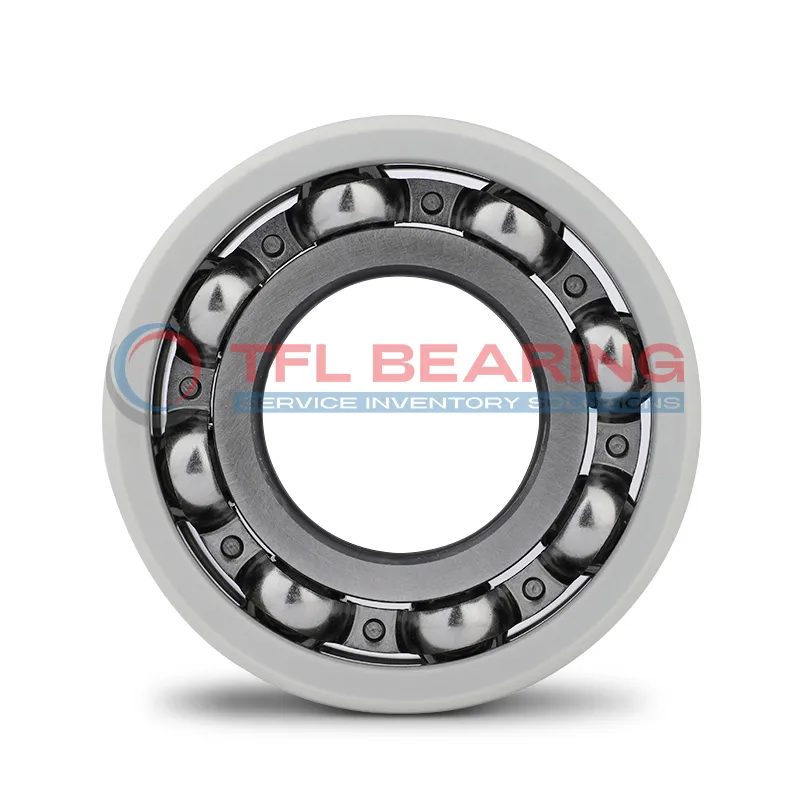

SKF INSOCOAT Bearings 6310/C3VL0241

SKF INSOCOAT Bearings 6310/C3VL0241

The SKF INSOCOAT 6310/C3VL0241 is a 50mm bore bearing with an outer diameter of 110mm and a width of 27mm, featuring a durable insulation coating on the outer ring.
It handles dynamic loads up to 65 kN and static loads up to 38 kN, with a reference speed of 9500 RPM. The insulation coating provides a breakdown voltage of up to 3000 V and an electrical resistance of 200 MΩ.
Its sheet metal cage ensures smooth operation, while the C3 radial clearance allows for thermal expansion in demanding conditions.
Ideal for electric motors and generators, this RoHS-compliant bearing prevents electrical damage in high-voltage environments. Weighing 1.2kg, it’s a robust choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6310/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 50.0 mm
  • Outside Diameter 110.0 mm
  • Width 27.0 mm
  • Net Weight 1.2 kg
  • Basic Dynamic Load Rating 65.0 kN
  • Basic Static Load Rating 38.0 kN
  • Reference Speed 9500 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6310/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6310/C3VL0241 Bearing Engineered for Reliability?

6310/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically demanding environments.
The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a dynamic load rating of 65.0 kN, it handles heavy loads efficiently.

Application

Industrial Uses of 6310/C3VL0241 Bearing
6310/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from damaging the bearing. The C3 clearance ensures reliable performance even under varying thermal conditions.

What Makes 6310/C3VL0241 Bearing a Preferred Choice?
In automation systems, 6310/C3VL0241 Bearing supports high-speed operations, such as robotic arms and conveyor belts. Its sheet metal cage provides durability while maintaining smooth rotation.

Built for Heavy-Duty Use: 6310/C3VL0241 Bearing
For wind turbines, 6310/C3VL0241 Bearing handles both radial and axial loads efficiently, thanks to its robust design. The insulation coating also protects against stray currents in harsh environments.

Medical vs Industrial: Where 6310/C3VL0241 Bearing Excels
In medical imaging devices, 6310/C3VL0241 Bearing offers precise movement with minimal electrical interference. Industrial applications benefit from its high dynamic load rating and long service life.
