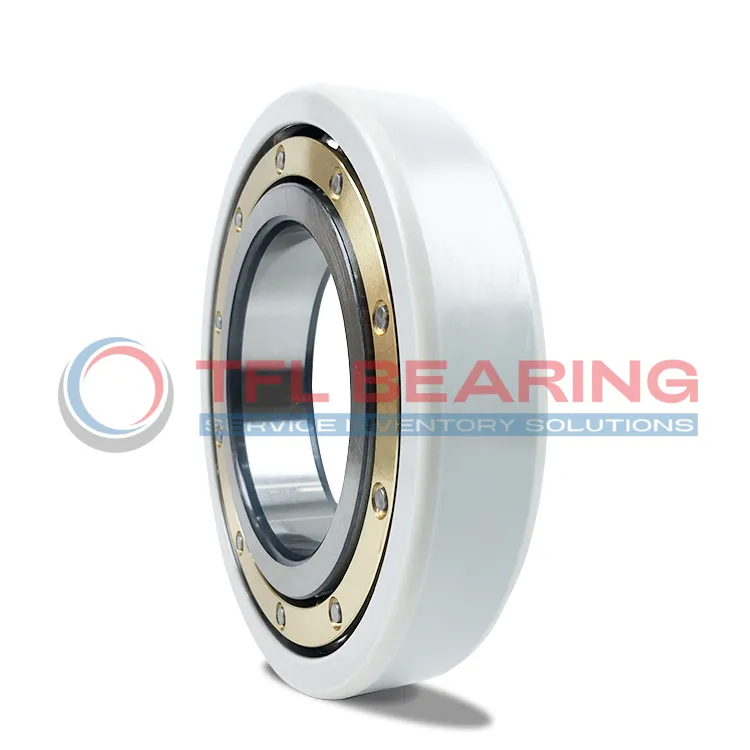

SKF INSOCOAT Bearings 6234M/C3VL0241

SKF INSOCOAT Bearings 6234M/C3VL0241

The SKF INSOCOAT 6234M/C3VL0241 is a robust bearing with a 170mm bore and 310mm outer diameter, designed for heavy-duty applications. Its insulation coating on the outer ring prevents electrical damage, making it ideal for electric motors.

With a dynamic load rating of 225kN and a static load rating of 224kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 3800 RPM.

The C3 radial clearance allows for thermal expansion, while the 500µm insulation layer offers protection up to 3000V. It weighs 18kg, balancing strength and manageability.

Perfect for industries where electrical insulation is crucial, such as wind turbines or industrial generators. Compliant with ROHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6234M/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 170.0 mm
  • Outside Diameter 310.0 mm
  • Width 52.0 mm
  • Net Weight 18 kg
  • Basic Dynamic Load Rating 225.0 kN
  • Basic Static Load Rating 224.0 kN
  • Reference Speed 3800 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6234M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6234M/C3VL0241 Bearing Engineered for Reliability?

6234M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically demanding applications.

The brass cage enhances durability and maintains ball alignment under high-speed conditions.
With a dynamic load rating of 225 kN, it handles heavy loads efficiently.

6234M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.
Its reference speed of 3800 r/min makes it suitable for high-speed machinery.

The insulation coating provides an electrical resistance of 200 MΩ, reducing the risk of current leakage.
This design ensures long-term reliability in industrial applications.

Application

Industrial Uses of 6234M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6234M/C3VL0241 Bearing Used?
You’ll find this bearing in wind turbines and industrial pumps, thanks to its ability to handle heavy loads and resist electrical arcing. The C3 clearance makes it suitable for applications with thermal expansion.

Built for Heavy-Duty Use: 6234M/C3VL0241 Bearing
In mining equipment, this bearing’s robust design and high dynamic load rating keep machinery running reliably. The insulation coating adds an extra layer of protection in harsh environments.

Automotive vs Aerospace: Applications of 6234M/C3VL0241 Bearing
While it’s not typically used in aerospace, this bearing excels in automotive alternators and industrial fans. Its breakdown voltage rating makes it ideal for environments with electrical interference.

Perfect Fit for Automation: 6234M/C3VL0241 Bearing
In automated production lines, this bearing’s high reference speed and stability ensure consistent performance. The brass cage reduces friction, making it a reliable choice for continuous operation.
