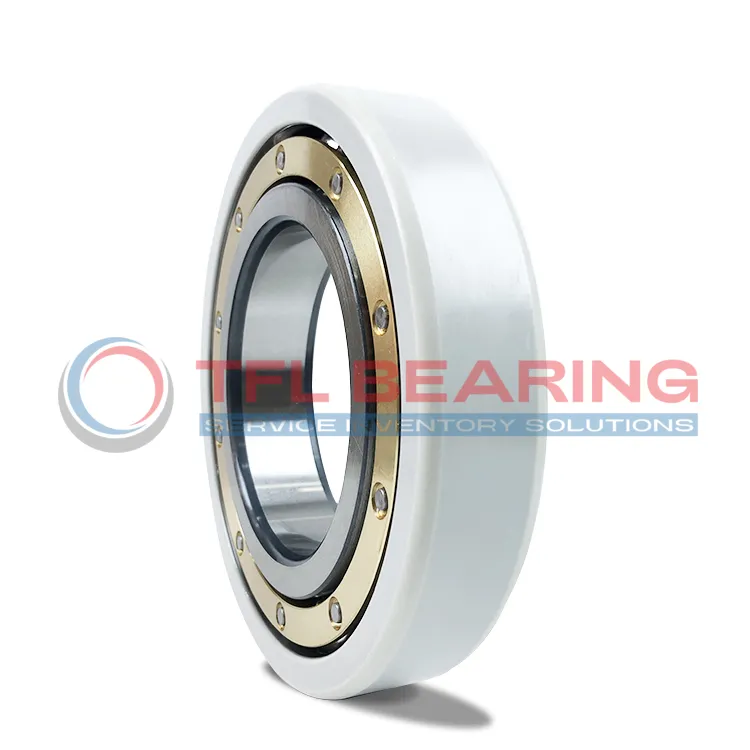

SKF INSOCOAT Bearings 6230M/C3VL0241

SKF INSOCOAT Bearings 6230M/C3VL0241

The SKF INSOCOAT bearing 6230M/C3VL0241 is a robust unit measuring 150mm by 270mm by 45mm, featuring an insulating coating on the outer ring. It handles dynamic loads up to 186 kN and static loads up to 166 kN, with a reference speed of 5000 RPM.

Its brass cage ensures smooth operation, while the C3 radial clearance allows for thermal expansion. The insulation coating provides a breakdown voltage of up to 3000V, making it safe for electrical applications.

This bearing is ideal for use in electric motors or generators where electrical insulation is needed. Weighing 11.52kg, it’s a sturdy choice for industrial settings. Compliant with RoHS standards, it’s both reliable and environmentally friendly.

The coating offers an electrical resistance of 200 MΩ, preventing current passage and reducing damage risks. Its 500µm layer thickness ensures durability in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6230M/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 150.0 mm
  • Outside Diameter 270.0 mm
  • Width 45.0 mm
  • Net Weight 11.52kg
  • Basic Dynamic Load Rating 186.0 kN
  • Basic Static Load Rating 166.0 kN
  • Reference Speed 5000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6230M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6230M/C3VL0241 Bearing Engineered for Reliability?

6230M/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.

Its brass cage ensures smooth operation and reduces friction, enhancing durability.

With a basic dynamic load rating of 186.0 kN, it handles heavy loads efficiently.

The bearing’s C3 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications up to 5000 r/min.

Application

Industrial Uses of 6230M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6230M/C3VL0241 Bearing Used?
You’ll find it in wind turbines and industrial pumps, handling heavy loads with ease. Its C3 clearance allows for thermal expansion, making it reliable in varying temperatures.

Built for Heavy-Duty Use: 6230M/C3VL0241 Bearing
Perfect for mining equipment, this bearing’s robust design handles harsh conditions. The insulation coating adds an extra layer of protection in electrically noisy environments.

Automotive vs Aerospace: Applications of 6230M/C3VL0241 Bearing
In automotive alternators, it ensures efficient power generation. For aerospace applications, its lightweight yet durable construction meets stringent performance requirements.

Key Fields for 6230M/C3VL0241 Bearing
Medical imaging devices benefit from its precision and insulation properties. The high breakdown voltage makes it safe for sensitive electronic equipment.
