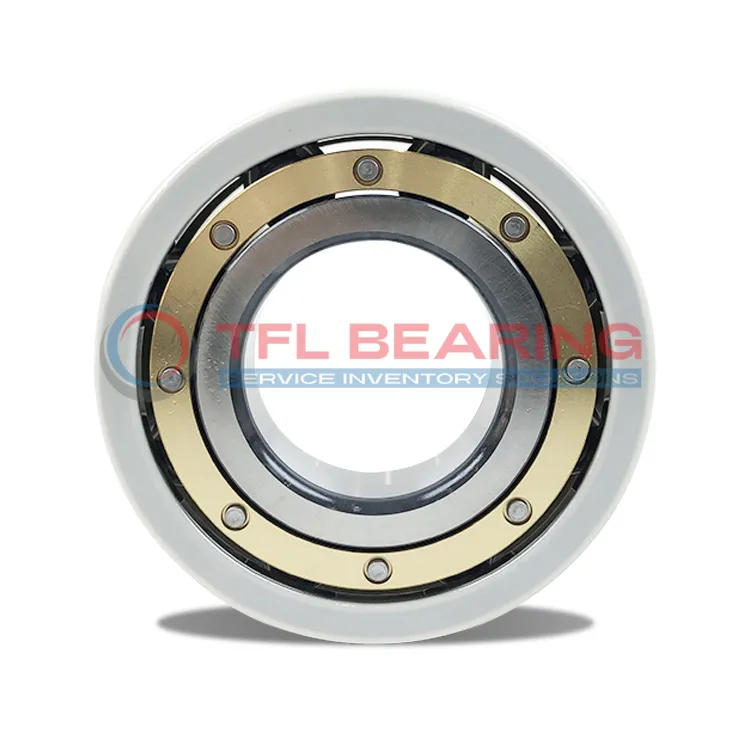

SKF INSOCOAT Bearings 6216M/C3VL0241

SKF INSOCOAT Bearings 6216M/C3VL0241

The SKF 6216M/C3VL0241 is an INSOCOAT bearing with an 80mm bore and 140mm outer diameter, featuring a durable insulation coating on the outer ring. It handles dynamic loads up to 72.8 kN and spins smoothly at speeds up to 9500 RPM.

Its brass cage and C3 radial clearance ensure reliable performance, while the 500µm insulation layer prevents electrical arcing. The coating provides a breakdown voltage of up to 3000V, making it safe for electrical applications.

Weighing 1.71kg, this bearing is robust yet manageable for its size. Ideal for electric motors or generators where electrical insulation is crucial.

Compliant with ROHS standards, it’s a dependable choice for industrial and automotive uses. The VL0241 coating suffix ensures easy identification for replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6216M/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 80.0 mm
  • Outside Diameter 140.0 mm
  • Width 26.0 mm
  • Net Weight 1.71 kg
  • Basic Dynamic Load Rating 72.8 kN
  • Basic Static Load Rating 55.0 kN
  • Reference Speed 9500.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6216M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Does 6216M/C3VL0241 Bearing Resist Electrical Currents?

6216M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical currents from damaging the bearing.
The coating provides a breakdown voltage of up to 3000 V, ensuring reliable operation in electrically charged environments.
With a brass cage and C3 radial internal clearance, it maintains smooth performance under varying loads.
Its basic dynamic load rating of 72.8 kN makes it suitable for demanding industrial applications.

Application

Industrial Uses of 6216M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6216M/C3VL0241 Bearing Used?
You’ll find 6216M/C3VL0241 Bearing in wind turbines and industrial pumps, thanks to its ability to handle heavy loads and resist electrical erosion. Its C3 clearance makes it suitable for applications with thermal expansion.

Built for Heavy-Duty Use: 6216M/C3VL0241 Bearing
In conveyor systems and gearboxes, 6216M/C3VL0241 Bearing offers reliable performance under continuous operation. The insulation coating adds an extra layer of protection in electrically harsh environments.

Automotive vs Aerospace: Applications of 6216M/C3VL0241 Bearing
While 6216M/C3VL0241 Bearing works well in automotive alternators, it’s also found in aerospace ground support equipment. The high breakdown voltage makes it versatile for different electrical conditions.

Perfect Fit for Automation: 6216M/C3VL0241 Bearing
This bearing shines in robotic arms and CNC machines, where precision and electrical insulation are key. The 140mm outer diameter provides stability during rapid movements.
