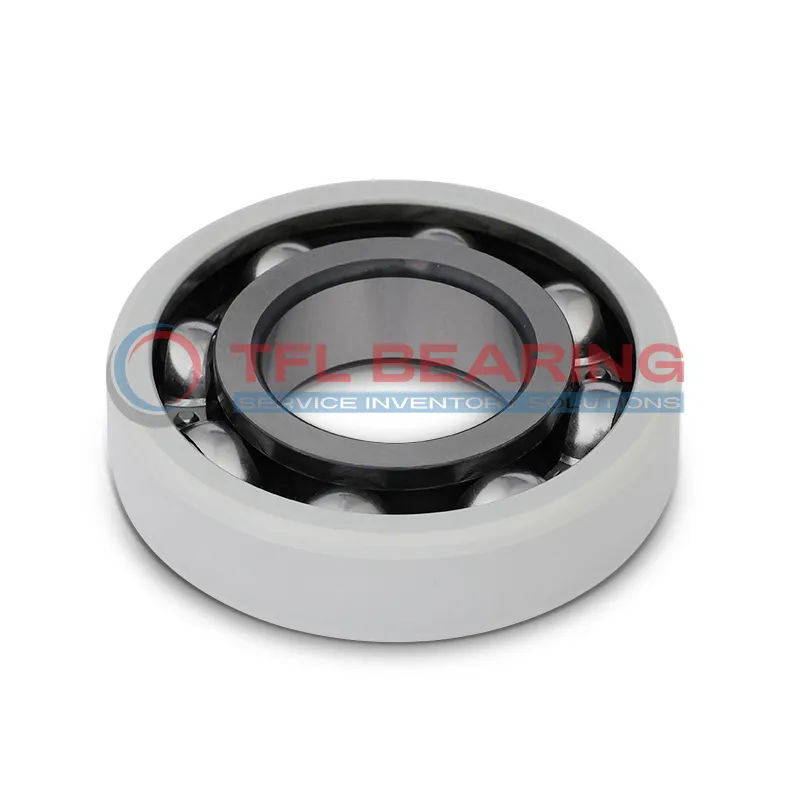

SKF INSOCOAT Bearings 6215/C4VL0241

SKF INSOCOAT Bearings 6215/C4VL0241

The SKF 6215/C4VL0241 is an INSOCOAT bearing with a 75mm bore and 130mm outer diameter, featuring a durable insulation coating on the outer ring.

It handles dynamic loads up to 68.9 kN and spins smoothly at speeds up to 10,000 RPM, making it suitable for high-performance applications.

The insulating coating provides electrical resistance up to 200 MΩ, protecting against electrical currents in motors or generators.

With a C4 radial clearance and sheet metal cage, it offers reliable performance in demanding industrial environments. Compliant with ROHS standards, it’s a safe choice for modern machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6215/C4VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 75.0 mm
  • Outside Diameter 130.0 mm
  • Width 25.0 mm
  • Net Weight 1.16 kg
  • Basic Dynamic Load Rating 68.9 kN
  • Basic Static Load Rating 49.0 kN
  • Reference Speed 10000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6215/C4VL0241 Drawing.dwg
Download DWG Download PDF

Features

How Does 6215/C4VL0241 Bearing Resist Electrical Currents?

6215/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical currents from damaging the bearing.
The coating provides a breakdown voltage of up to 3000 V, ensuring protection in high-voltage environments.

With an electrical resistance of 200 MΩ, 6215/C4VL0241 Bearing minimises the risk of electrical arcing.
Its C4 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.

The sheet metal cage ensures smooth operation, even at high speeds up to 10,000 r/min.
6215/C4VL0241 Bearing’s robust design supports dynamic loads up to 68.9 kN, making it reliable for industrial applications.

Application

Industrial Uses of 6215/C4VL0241 Bearing
The 6215/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C4 radial clearance ensures reliable performance in high-temperature industrial environments.

How Does 6215/C4VL0241 Bearing Improve Performance?
In wind turbine applications, 6215/C4VL0241 Bearing reduces downtime by resisting electrical erosion, thanks to its VL0241 coating. The sheet metal cage also helps maintain stability during variable load conditions.

Built for Heavy-Duty Use: 6215/C4VL0241 Bearing
This bearing handles heavy loads in industrial gearboxes, with a dynamic load rating of 68.9 kN. The 500 µm insulation layer adds durability in electrically harsh conditions.

Automotive vs Aerospace: Applications of 6215/C4VL0241 Bearing
In automotive alternators, 6215/C4VL0241 Bearing prevents electrical arcing, while its aerospace uses include auxiliary power units. The 130 mm outer diameter fits compact spaces without sacrificing performance.

Perfect Fit for Automation: 6215/C4VL0241 Bearing
Robotic assembly lines benefit from 6215/C4VL0241 Bearing’s high-speed capability (10,000 r/min) and insulation properties. Its 25 mm width suits space-constrained automation equipment.
