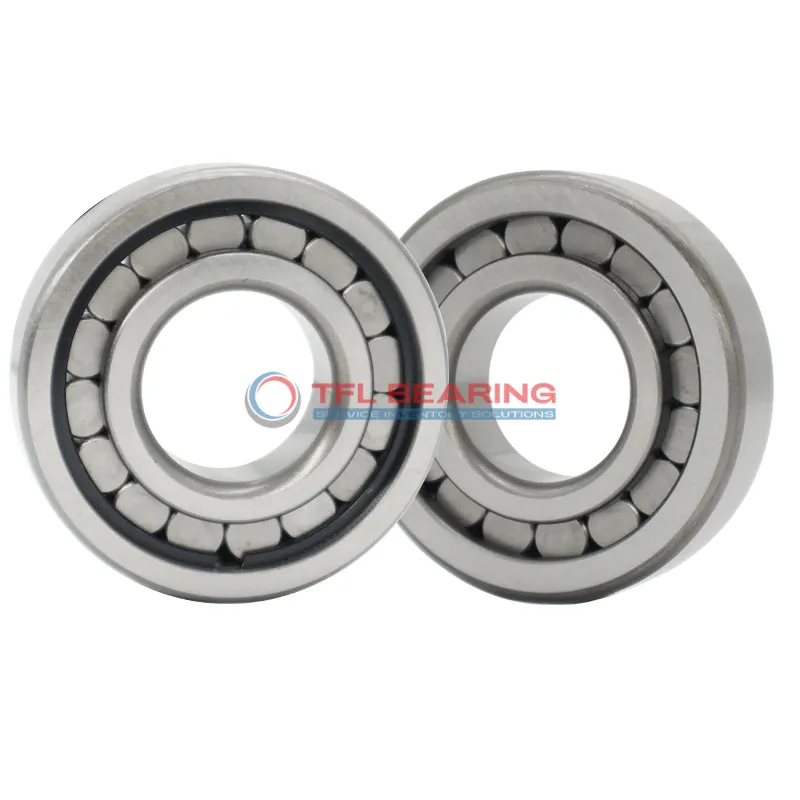

Single Row Full Complement Cylindrical Roller Bearings NCF 3040 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3040 CV

The NCF 3040 CV is a single row full complement cylindrical roller bearing with a 200mm bore and 310mm outer diameter, built from tough chrome steel. It handles combined loads up to 205425 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows for easy lubrication with grease or oil.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common. It works well in temperatures from -30°C to 110°C.

Weighing 22.5kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3040 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 82 mm
  • Width Tolerance -0.30mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 237 mm
  • Shoulder Dia Outer Ring 275 mm
  • Raceway Diameter Outer Ring 287.75 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 9 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 205425 lbf
  • Static Radial Load 344250 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 22.5 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 3040 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3040 CV Bearing

NCF 3040 CV Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 205425 lbf, making it suitable for heavy-duty applications.

The full complement of rollers ensures maximum load distribution, enhancing durability and performance.
With a maximum speed of 1000 rpm, it provides reliable operation in various industrial settings.

NCF 3040 CV Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and robust construction ensure long service life and consistent performance.
NCF 3040 CV Bearing is ideal for applications requiring high load capacity and reliability.

Application

Industrial Uses of NCF 3040 CV Bearing
NCF 3040 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes NCF 3040 CV Bearing a Preferred Choice?
In wind turbine applications, NCF 3040 CV Bearing’s combined load capacity ensures reliable performance under varying forces. Its chrome steel construction offers durability, even in harsh outdoor environments.

Built for Heavy-Duty Use: NCF 3040 CV Bearing
NCF 3040 CV Bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. The absence of a cage allows for maximum roller count, enhancing load distribution.

Automotive vs Aerospace: Applications of NCF 3040 CV Bearing
In automotive drivetrains, NCF 3040 CV Bearing supports high-torque scenarios like axle assemblies. For aerospace, its precision tolerances make it suitable for auxiliary power units where reliability is key.

Where to Use NCF 3040 CV Bearing
NCF 3040 CV Bearing fits well in steel mill rollers, where its high static radial load capacity ensures smooth operation. The grease or oil lubrication options adapt to different operational needs.
