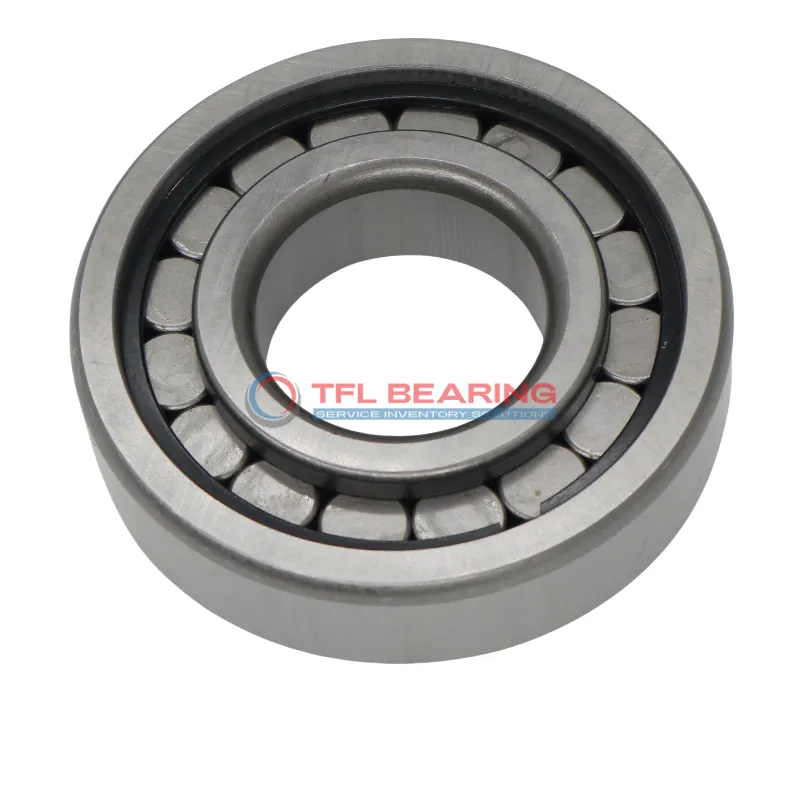

Single Row Full Complement Cylindrical Roller Bearings NCF 2930 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2930 CV

The NCF 2930 CV is a single row cylindrical roller bearing with a 150mm bore and 210mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 65700 lbf and runs smoothly at speeds up to 2000 RPM.

Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 3.73kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2930 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 36 mm
  • Width Tolerance -0.25mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 169 mm
  • Shoulder Dia Outer Ring 189 mm
  • Raceway Diameter Outer Ring 196.4 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 65700 lbf
  • Static Radial Load 110250 lbf
  • Max Speed 2000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.73 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2930 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2930 CV Bearing

NCF 2930 CV Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
This design allows it to handle combined loads efficiently, with a dynamic radial load of 65700 lbf.

The absence of a cage in NCF 2930 CV Bearing maximises roller count, improving load distribution and durability.
Its chrome steel construction ensures resistance to wear, even under high-stress conditions.

NCF 2930 CV Bearing operates smoothly at speeds up to 2000 rpm, balancing performance and longevity.
The open seal design simplifies maintenance, making it suitable for various industrial applications.

With a temperature range of -30° to 110°C, NCF 2930 CV Bearing performs reliably in diverse environments.
Its precise tolerances ensure consistent operation, reducing the need for frequent adjustments.

Application

Industrial Uses of NCF 2930 CV Bearing
NCF 2930 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for demanding environments.

Where Is NCF 2930 CV Bearing Used?
In automotive applications, NCF 2930 CV Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: NCF 2930 CV Bearing
For automation and robotics, NCF 2930 CV Bearing provides reliable performance in robotic arms and automated assembly lines. The absence of a cage allows for higher load capacity, ideal for repetitive motion tasks.

Automotive vs Aerospace: Applications of NCF 2930 CV Bearing
In aerospace, NCF 2930 CV Bearing is used in landing gear systems, where its combined load capability is essential. Meanwhile, in automotive settings, it excels in transmission systems due to its durability and precision.

Key Fields for NCF 2930 CV Bearing
NCF 2930 CV Bearing is a go-to choice for wind turbines, where its high dynamic radial load capacity ensures long-term reliability. The grease or oil lubrication options make it adaptable to various operating conditions.
