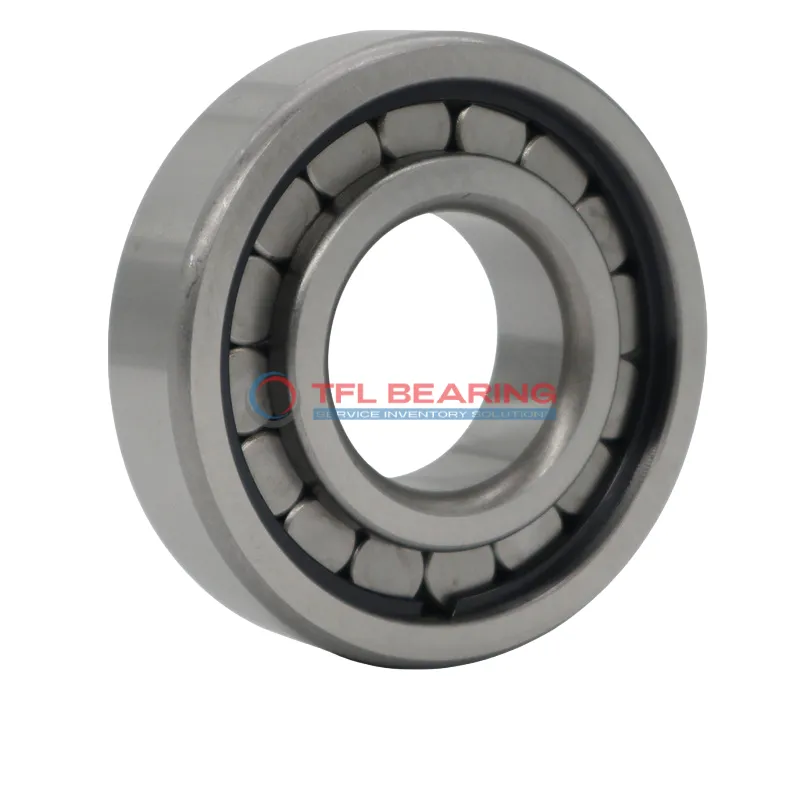

Single Row Full Complement Cylindrical Roller Bearings NCF 28/710 V

Single Row Full Complement Cylindrical Roller Bearings NCF 28/710 V

The NCF 28/710 V is a large single-row cylindrical roller bearing with a 710mm bore and 870mm outer diameter, built from tough chrome steel. It handles heavy combined loads, supporting up to 524250 lbf dynamically and 1417500 lbf statically.

Its full complement design (no cage) maximises roller count for higher load capacity, while the open seal allows flexible lubrication with grease or oil. The bearing operates smoothly in temperatures from -30°C to 110°C.

With a 95mm width and 115kg weight, it’s suited for robust industrial use. The design permits up to 8mm axial displacement, accommodating slight misalignments.

Ideal for heavy machinery like presses or large gearboxes where high radial and axial loads are present. Compliant with RoHS and REACH standards for safe industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 28/710 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 710 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 95 mm
  • Width Tolerance -0.75mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 766 mm
  • Shoulder Dia Outer Ring 818 mm
  • Raceway Diameter Outer Ring 831 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 524250 lbf
  • Static Radial Load 1417500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 115 kg

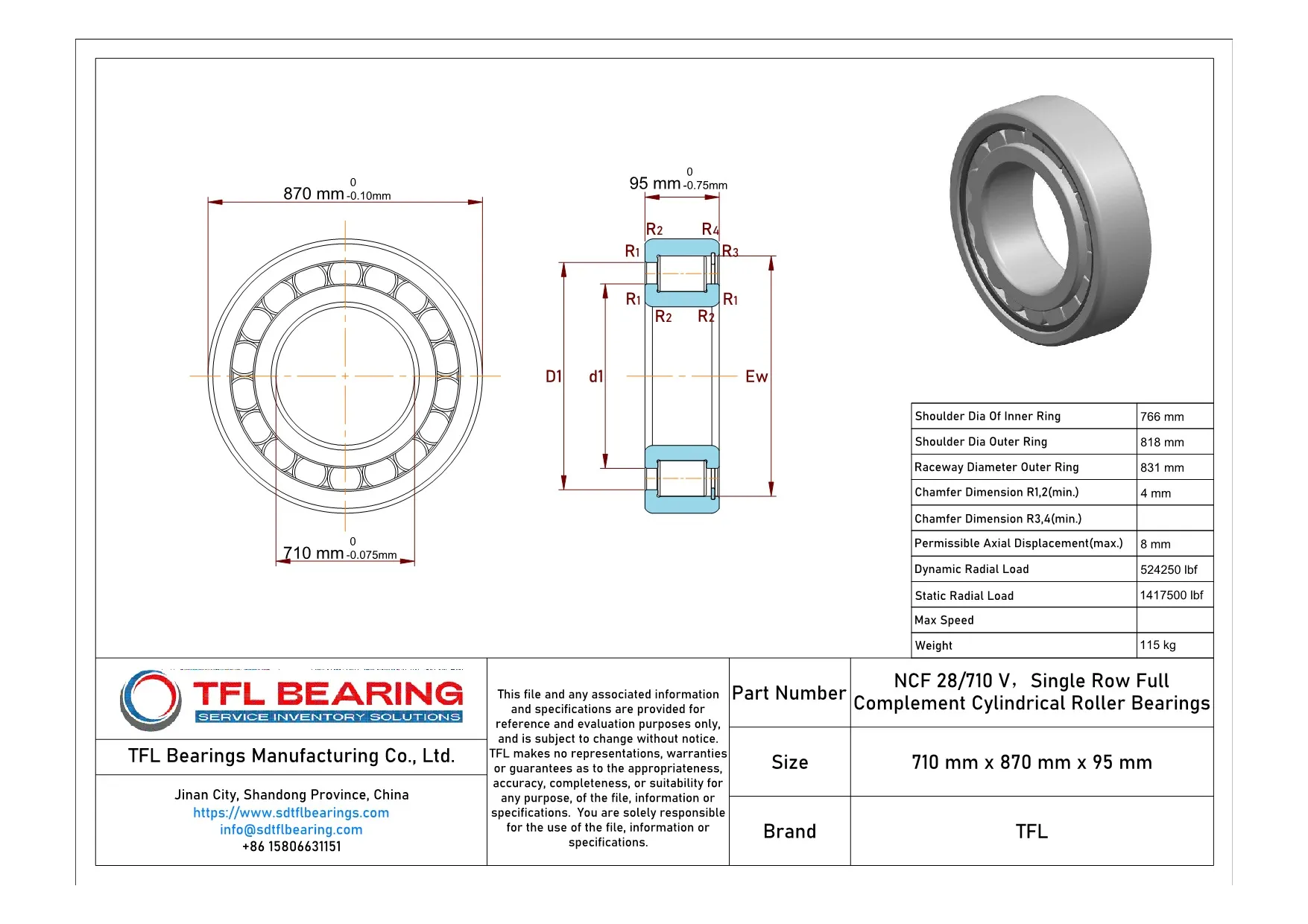

Single Row Full Complement Cylindrical Roller Bearings NCF 28/710 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 28/710 V Bearing

NCF 28/710 V Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 524,250 lbf, making it suitable for heavy-duty applications.

The full complement of rollers ensures maximum load-carrying capacity without a cage.
This design enhances durability and reduces the need for frequent maintenance.

NCF 28/710 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open seal type allows for easy lubrication with grease or oil, ensuring smooth performance.

With precise tolerances and robust construction, NCF 28/710 V Bearing delivers reliable operation.
The large bore diameter of 710 mm accommodates substantial shaft sizes, providing versatility in industrial use.

Application

Industrial Uses of NCF 28/710 V Bearing
NCF 28/710 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes NCF 28/710 V Bearing a Preferred Choice?
With its large bore size and robust design, NCF 28/710 V Bearing is ideal for applications like wind turbine shafts and mining equipment. The absence of a cage allows for higher load capacity, making it suitable for slow-speed, high-load scenarios.

Built for Heavy-Duty Use: NCF 28/710 V Bearing
NCF 28/710 V Bearing excels in applications like steel production lines, where its combined load capability and open design simplify maintenance. The wide temperature range also ensures reliable performance in varying conditions.

Automotive vs Aerospace: Applications of NCF 28/710 V Bearing
In automotive settings, NCF 28/710 V Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric sizing and grease compatibility make it versatile across industries.

Key Fields for NCF 28/710 V Bearing
NCF 28/710 V Bearing is often found in paper manufacturing machinery, where its high static load rating ensures stability. The full complement rollers provide smooth operation, reducing downtime in continuous production lines.
