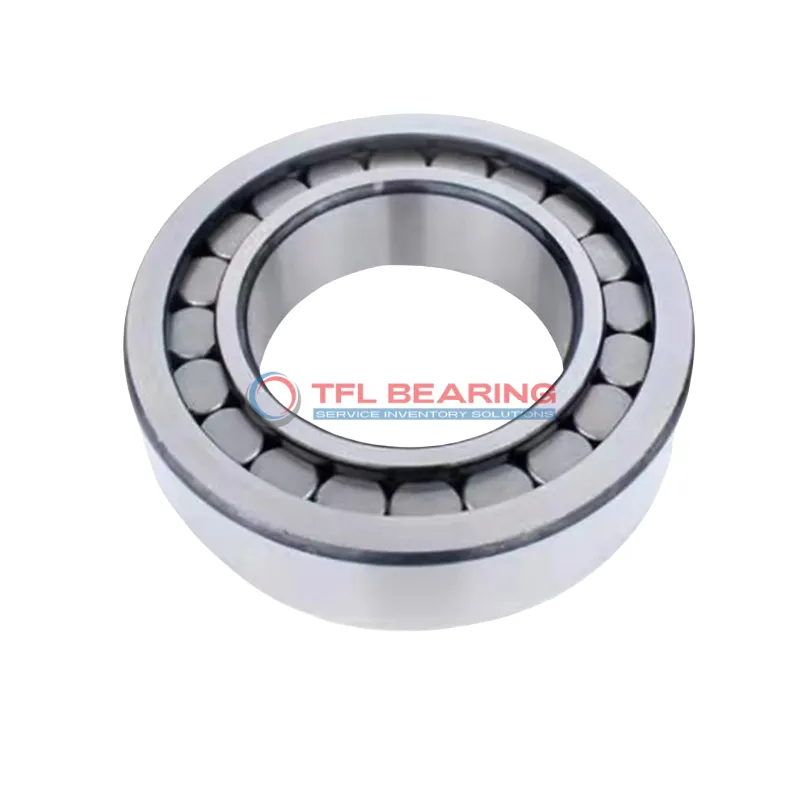

Single Row Full Complement Cylindrical Roller Bearings NCF 28/630 V

Single Row Full Complement Cylindrical Roller Bearings NCF 28/630 V

The NCF 28/630 V is a single-row full complement cylindrical roller bearing with a large 630mm bore and 780mm outer diameter, built from sturdy chrome steel. It handles heavy radial loads up to 436500 lbf and is suitable for combined load applications.

Its full complement design (no cage) maximises roller capacity, enhancing load distribution and durability. The open seal type allows flexible lubrication with grease or oil, and it operates in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, simplifying replacements in industrial settings. Ideal for heavy machinery like rolling mills or large gearboxes where high radial loads are common.

Weighing 92.2kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 28/630 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 630 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 780 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 88 mm
  • Width Tolerance -0.50mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 680 mm
  • Shoulder Dia Outer Ring 728 mm
  • Raceway Diameter Outer Ring 741.4 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 436500 lbf
  • Static Radial Load 1125000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 92.2 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 28/630 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 28/630 V Bearing

NCF 28/630 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 436,500 lbf, making it suitable for heavy-duty applications.

The full complement design eliminates the need for a cage, allowing for higher load capacity and durability.
With a permissible axial displacement of 8 mm, it accommodates slight misalignments during operation.

NCF 28/630 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth performance.

The precise dimensions and tolerances of NCF 28/630 V Bearing ensure reliable fit and function.
Weighing 92.2 kg, it is designed for robust industrial applications requiring long service life.

Application

Industrial Uses of NCF 28/630 V Bearing
NCF 28/630 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes NCF 28/630 V Bearing a Preferred Choice?
With its chrome steel construction, NCF 28/630 V Bearing offers durability in applications like wind turbine gearboxes, where reliability is key. The absence of a cage means it can accommodate more rollers, boosting load capacity.

Built for Heavy-Duty Use: NCF 28/630 V Bearing
NCF 28/630 V Bearing excels in mining equipment, supporting massive loads in crushers and conveyors. Its metric sizing ensures compatibility with European machinery, while the grease or oil lubrication options provide flexibility.

Automotive vs Aerospace: Applications of NCF 28/630 V Bearing
In automotive settings, NCF 28/630 V Bearing might be found in large commercial vehicle transmissions, handling combined loads. For aerospace, its precision and strength could suit ground support equipment, though its size limits in-flight use.

Key Fields for NCF 28/630 V Bearing
NCF 28/630 V Bearing is ideal for steel production lines, where its high static radial load capacity supports rolling stands. The temperature range also makes it suitable for environments with fluctuating heat levels.
