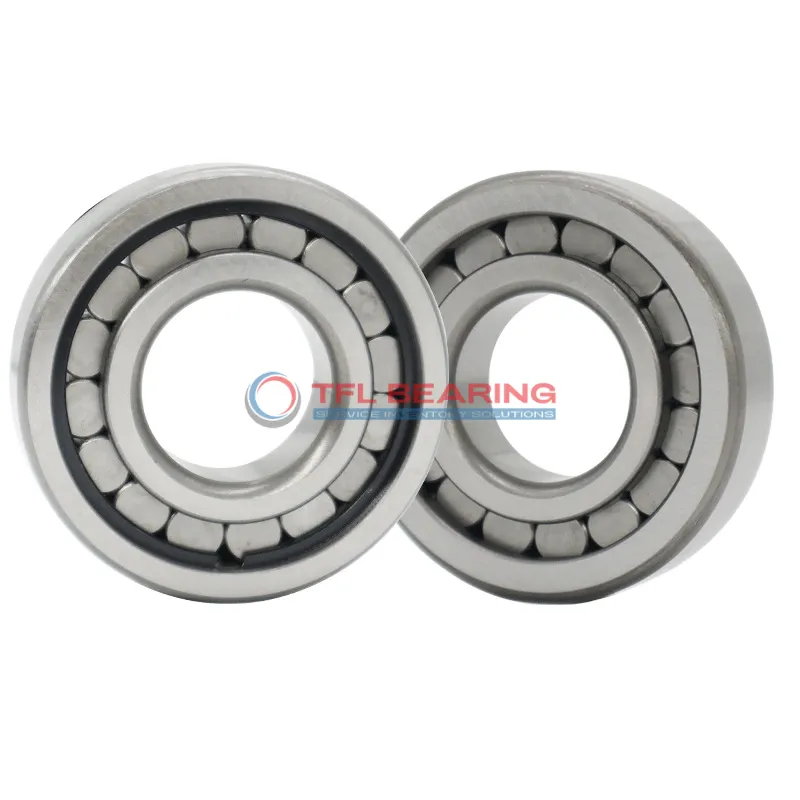

Single Row Full Complement Cylindrical Roller Bearings NCF 1852 V

Single Row Full Complement Cylindrical Roller Bearings NCF 1852 V

The NCF 1852 V is a single row full complement cylindrical roller bearing with a 260mm bore and 320mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 60750 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal type allows for easy lubrication with grease or oil.

This bearing is suitable for applications with axial displacement up to 1.8mm, making it ideal for heavy machinery or industrial gearboxes. It performs well in temperatures from -30°C to 110°C.

Weighing 4.56kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 1852 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 28 mm
  • Width Tolerance -0.35mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 283 mm
  • Shoulder Dia Outer Ring 299 mm
  • Raceway Diameter Outer Ring 307.2 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.8 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 60750 lbf
  • Static Radial Load 123750 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.56 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 1852 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 1852 V Bearing

NCF 1852 V Bearing is built with a full complement of cylindrical rollers, offering high load capacity without a cage.
This design enhances its dynamic radial load capacity up to 60,750 lbf, making it suitable for heavy-duty applications.

The chrome steel construction of NCF 1852 V Bearing ensures durability and resistance to wear under combined loads.
Its open seal type allows for easy lubrication with grease or oil, maintaining smooth operation.

NCF 1852 V Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various working conditions.
With a maximum speed of 1,000 rpm, it balances performance and reliability in industrial settings.

The precise tolerances of NCF 1852 V Bearing ensure a secure fit and consistent performance.
Its single-row design simplifies installation while maintaining high load-bearing capabilities.

Application

Industrial Uses of NCF 1852 V Bearing
NCF 1852 V Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is NCF 1852 V Bearing Used?
You’ll often find NCF 1852 V Bearing in wind turbines and mining equipment, where its combined load capacity and durability are essential. The chrome steel construction ensures reliable performance even in harsh environments.

Built for Heavy-Duty Use: NCF 1852 V Bearing
NCF 1852 V Bearing excels in applications like steel mills and paper processing machines, where its high static radial load capacity is crucial. The absence of a cage allows for maximum roller count, enhancing load distribution.

Automotive vs Aerospace: Applications of NCF 1852 V Bearing
In automotive settings, NCF 1852 V Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision and reliability. Its metric sizing makes it versatile across industries.

Practical Applications of NCF 1852 V Bearing
NCF 1852 V Bearing is ideal for construction equipment, such as cranes and excavators, where its ability to handle combined loads ensures smooth operation. The wide temperature range makes it suitable for varied climates.
