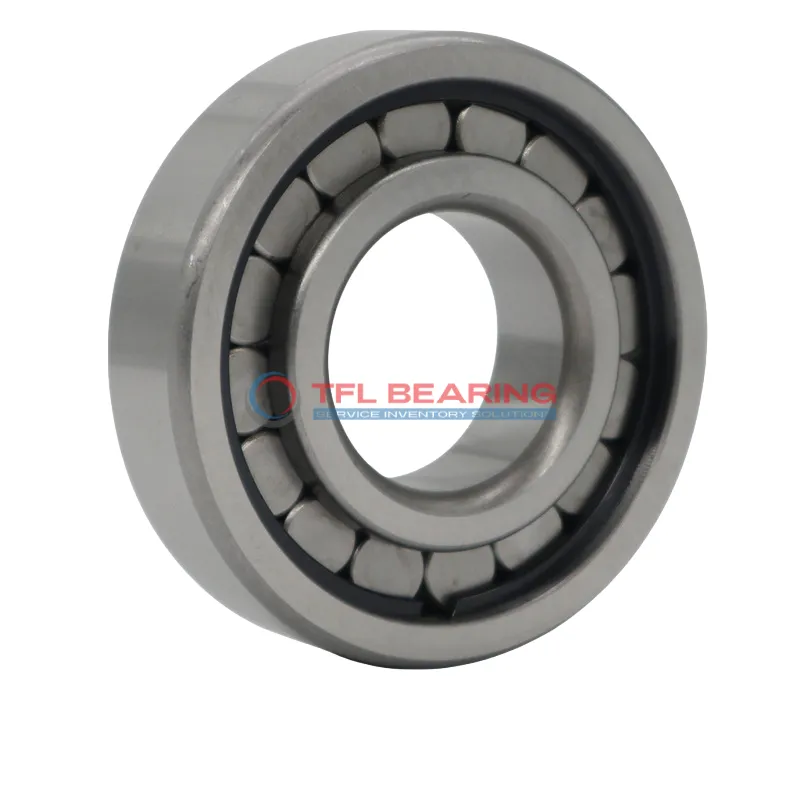

Single Row Full Complement Cylindrical Roller Bearings NCF 18/900 V/HB1

Single Row Full Complement Cylindrical Roller Bearings NCF 18/900 V/HB1

The NCF 18/900 V/HB1 is a single-row cylindrical roller bearing with a large 900mm bore and 1090mm outer diameter, built from sturdy chrome steel. It handles heavy combined loads, with a dynamic radial load capacity of 504000 lbf.

Its full complement design means it has no cage, allowing for maximum roller count and higher load capacity. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial machinery or large gearboxes, where high radial loads are common. It operates smoothly in temperatures from -30°C to 110°C.

Weighing 154kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 18/900 V/HB1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 900 mm
  • Bore Dia Tolerance -0.10mm to 0
  • Outer Dia 1090 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 85 mm
  • Width Tolerance -1.00mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 966 mm
  • Shoulder Dia Outer Ring 1029 mm
  • Raceway Diameter Outer Ring 1044 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 9 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 504000 lbf
  • Static Radial Load 1282500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 154 kg

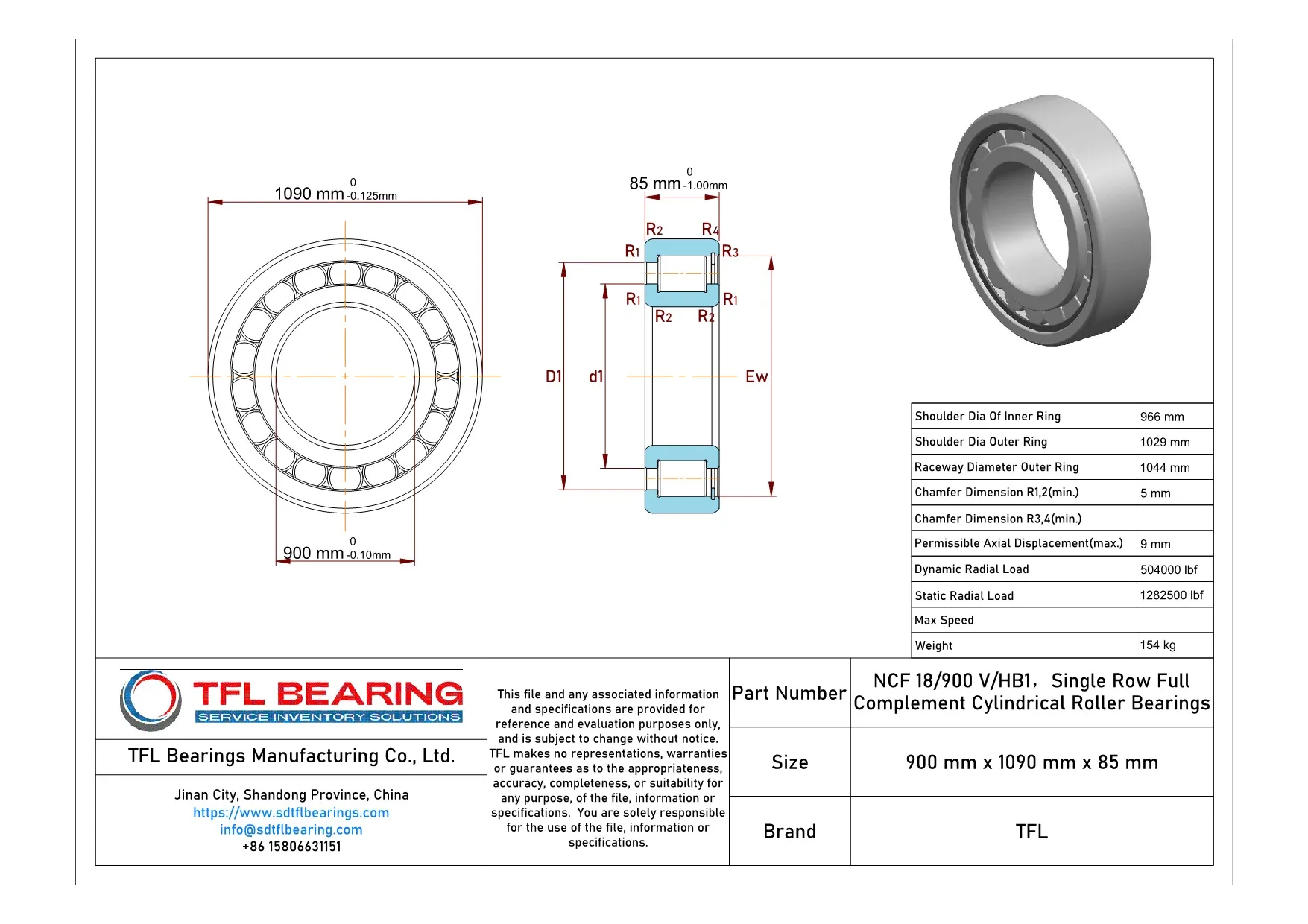

Single Row Full Complement Cylindrical Roller Bearings NCF 18/900 V/HB1 dimension drawing
Download DWG Download PDF

Features

Structural Advantages of NCF 18/900 V/HB1 Bearing

NCF 18/900 V/HB1 Bearing features a full complement of rollers, enhancing its load-carrying capacity without a cage.
This design allows for higher radial load capacity, making it suitable for heavy-duty applications.

The chrome steel construction of NCF 18/900 V/HB1 Bearing ensures durability and resistance to wear.
Its static radial load capacity reaches 1,282,500 lbf, providing reliable performance under extreme conditions.

NCF 18/900 V/HB1 Bearing operates effectively in temperatures ranging from -30° to 110°C.
This makes it versatile for use in various industrial environments.

With its open design, NCF 18/900 V/HB1 Bearing allows for easy lubrication with grease or oil.
This feature helps maintain smooth operation and extends the bearing’s service life.

Application

Industrial Uses of NCF 18/900 V/HB1 Bearing
NCF 18/900 V/HB1 Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently.
The chrome steel construction ensures durability even in demanding environments, making it a reliable choice for long-term use.

Where Is NCF 18/900 V/HB1 Bearing Used?
In wind turbine systems, NCF 18/900 V/HB1 Bearing supports the main shaft, providing stability under combined loads.
Its open design allows for easy lubrication, which is essential for maintaining performance in remote or hard-to-access locations.

Built for Heavy-Duty Use: NCF 18/900 V/HB1 Bearing
NCF 18/900 V/HB1 Bearing excels in mining equipment, where its robust construction withstands extreme conditions.
The absence of a cage allows for more rollers, increasing load capacity without compromising on space.

Automotive vs Aerospace: Applications of NCF 18/900 V/HB1 Bearing
While NCF 18/900 V/HB1 Bearing is too large for most automotive applications, it finds its place in aerospace ground support equipment.
Its high static radial load capacity makes it suitable for heavy lifting and positioning systems.

Practical Applications of NCF 18/900 V/HB1 Bearing
NCF 18/900 V/HB1 Bearing is ideal for steel production lines, where it handles the intense loads of continuous casting machines.
The grease or oil lubrication options provide flexibility depending on the operating environment and maintenance schedule.
