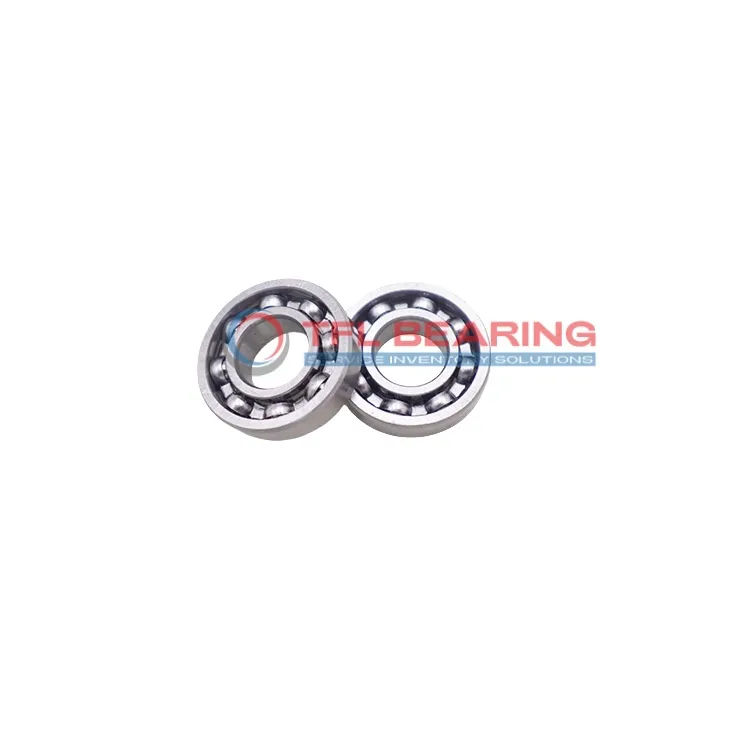

Single Row Deep Groove Ball Bearings With Filling Slots 209/C3

Single Row Deep Groove Ball Bearings With Filling Slots 209/C3

The 209/C3 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7913 lbf and operates smoothly at speeds up to 8500 RPM.

Its open design with filling slots allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.44kg, it offers a balance of strength and manageability. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 209/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Grade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7913 lbf
  • Static Radial Load 6744 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 0.44 kg
  • Price（$） 12.59
Single Row Deep Groove Ball Bearings With Filling Slots 209/C3 dimension drawing
Download DWG Download PDF

Features

How Does 209/C3 Bearing Reduce Friction?

209/C3 Bearing features a deep groove design with filling slots, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

Its dynamic radial load capacity of 7913 lbf makes it suitable for various industrial applications.
The open seal type allows for easy lubrication, enhancing performance and longevity.

With a maximum speed of 8,500 rpm, 209/C3 Bearing balances efficiency and reliability.
The C3 radial clearance provides flexibility in different operating conditions.

Application

Essential Roles of 209/C3 Bearing
209/C3 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads efficiently. The filling slots allow for easier lubrication, extending service life in continuous operation.

In automotive applications, 209/C3 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying speeds. Its C3 clearance ensures reliable performance even with thermal expansion.

For automation systems, 209/C3 Bearing supports robotic arms and conveyor belts, thanks to its durable chrome steel construction. The open design simplifies maintenance, making it a practical choice for high-use environments.

In household appliances like washing machines, 209/C3 Bearing offers quiet and reliable operation. Its metric sizing ensures compatibility with a wide range of consumer products.
