Single Row Deep Groove Ball Bearings RMS 9

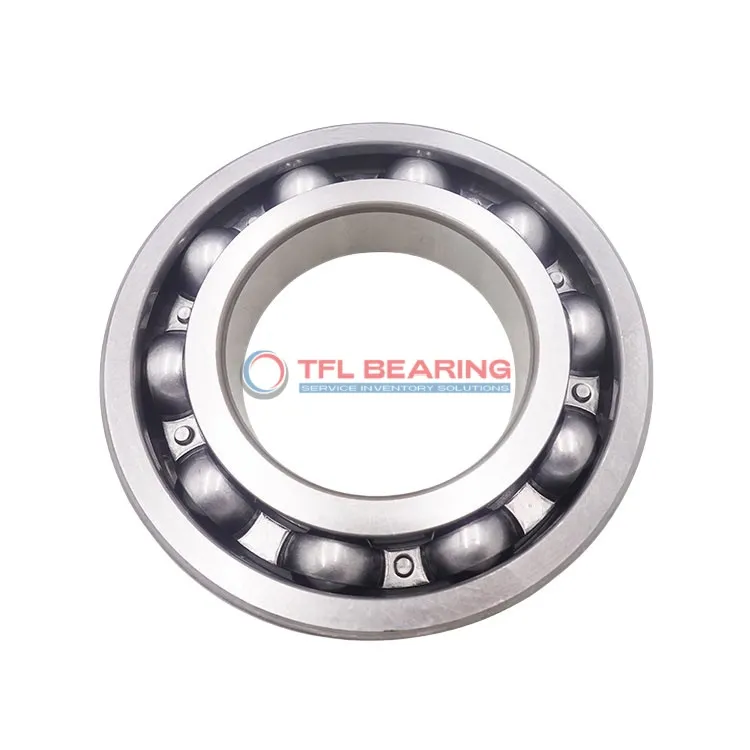

Single Row Deep Groove Ball Bearings RMS 9

The RMS 9 is a single-row deep groove ball bearing with a 1.125-inch bore and 2.81252-inch outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6317 lbf and spins smoothly at speeds up to 19,000 RPM.

Its open design allows for easy lubrication and maintenance, while the stainless steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 0.38kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RMS 9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1.125"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 2.81252"
  • Outer Dia Tolerance -0.00098" to -0.00051"
  • Width 0.81252"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6317 lbf
  • Static Radial Load 3597 lbf
  • Max Speed 19000 rpm
  • Weight 0.38 kg
  • price（$） 20.241
Single Row Deep Groove Ball Bearings RMS 9 dimension drawing
Download DWG Download PDF

Features

Performance Features of RMS 9 Bearing

RMS 9 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6317 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 19,000 rpm, it delivers reliable performance in various applications.

Application

Industrial Uses of RMS 9 Bearing
RMS 9 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, RMS 9 Bearing fits well in wheel hubs and alternators, providing smooth rotation under high speeds. Its inch sizing makes it compatible with many American-made vehicles.

For automation systems, RMS 9 Bearing works reliably in robotic arms and conveyor belts, thanks to its open design and P6 tolerance class. The stainless steel cage adds extra resistance to wear.

Around the home, RMS 9 Bearing can be found in appliances like washing machines, where its balanced performance ensures quiet operation. The wide temperature range makes it suitable for various climates.
