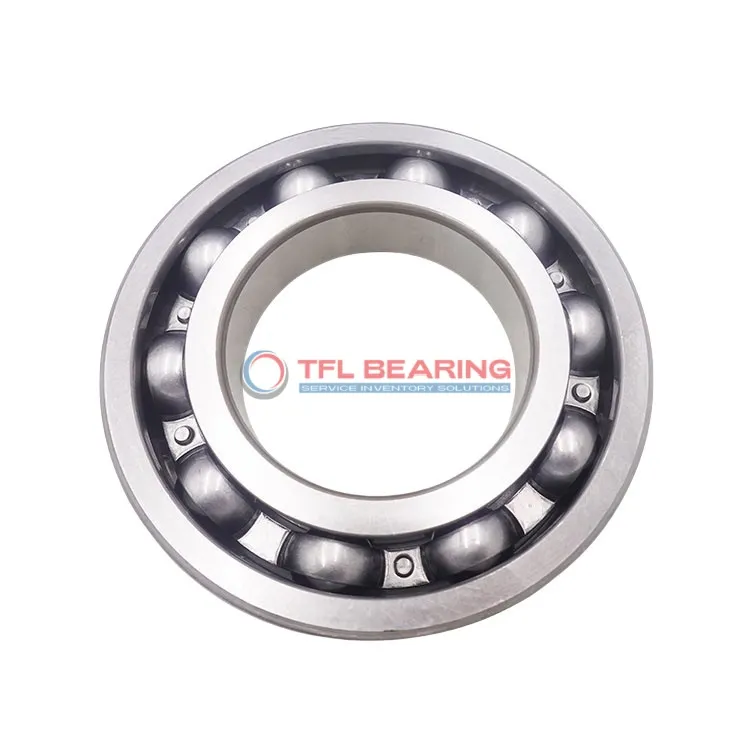

Single Row Deep Groove Ball Bearings RMS 10

Single Row Deep Groove Ball Bearings RMS 10

The RMS 10 is a single-row deep groove ball bearing with a 1.25″ bore and 3.125″ outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7464 lbf and can spin at speeds reaching 12,000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for machinery requiring smooth radial load handling, like pumps or electric motors.

Weighing 0.5kg, it offers a solid balance of strength and lightness. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RMS 10
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1.25"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 3.125"
  • Outer Dia Tolerance -0.00129" to -0.00078"
  • Width 0.875"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 7464 lbf
  • Static Radial Load 4271 lbf
  • Max Speed 12000 rpm
  • Weight 0.5 kg
  • price（$） 12.564
Single Row Deep Groove Ball Bearings RMS 10 dimension drawing
Download DWG Download PDF

Features

Performance Features of RMS 10 Bearing

RMS 10 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 7464 lbf, making it suitable for various applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 12,000 rpm, it delivers reliable performance under high-speed conditions.

RMS 10 Bearing operates efficiently in temperatures ranging from -30° to 120 °C.
Its open design simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of RMS 10 Bearing
RMS 10 Bearing is commonly used in conveyor systems and machine tools, where its single-row deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.

Where Is RMS 10 Bearing Used?
You’ll find RMS 10 Bearing in automotive applications like electric motors and pumps, thanks to its reliable performance under high speeds. Its inch sizing makes it a good fit for machinery requiring precise imperial measurements.

Built for Heavy-Duty Use: RMS 10 Bearing
RMS 10 Bearing works well in agricultural equipment, such as tractors and harvesters, where its open design allows for easy maintenance. The stainless steel cage adds extra resistance to wear and tear.

Automotive vs Industrial: Applications of RMS 10 Bearing
In cars, RMS 10 Bearing supports components like alternators and fans, while in factories, it’s used in gearboxes and pulleys. Its P6 tolerance class ensures consistent performance across different settings.

Perfect Fit for Automation: RMS 10 Bearing
RMS 10 Bearing is a solid choice for robotic arms and assembly line equipment, where smooth operation is key. The wide temperature range also makes it suitable for varying working conditions.
