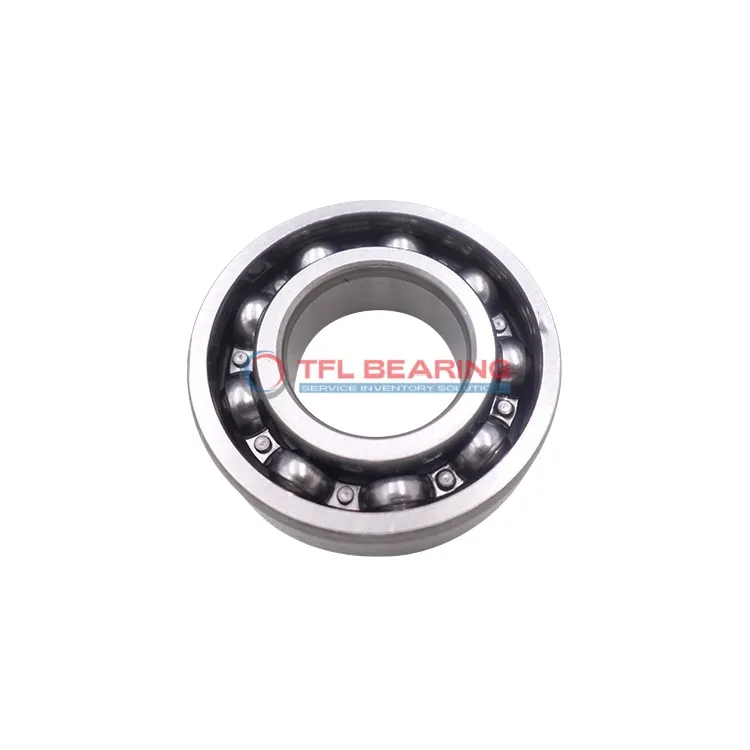

Single Row Deep Groove Ball Bearings R16FF

Single Row Deep Groove Ball Bearings R16FF

The R16FF is a single-row deep groove ball bearing with a 1-inch bore and 2-inch outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2652 lbf and runs smoothly at speeds up to 9000 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 87 grams, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R16FF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 1"
  • Bore Dia Tolerance -0.0004" to 0"
  • Outer Dia 2"
  • Outer Dia Tolerance -0.0005" to 0"
  • Width 0.375"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2652 lbf
  • Static Radial Load 1307 lbf
  • Max Speed 9000 rpm
  • Weight 87 g
  • price（$） 5.409
Single Row Deep Groove Ball Bearings R16FF dimension drawing
Download DWG Download PDF

Features

Performance Features of R16FF Bearing

R16FF Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2652 lbf, ensuring steady performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 9,000 rpm, it delivers reliable operation in demanding conditions.

Application

Industrial Uses of R16FF Bearing
R16FF Bearing is commonly used in conveyor systems and light machinery, where its inch sizing fits standard industrial equipment. The open design allows for easy lubrication, extending its service life in dusty environments.

What Makes R16FF Bearing a Preferred Choice?
In automotive applications, R16FF Bearing works well in alternators and small electric motors due to its balanced radial load capacity. The chrome steel construction ensures durability even under continuous use.

Built for Versatility: R16FF Bearing
For home appliances like washing machines, R16FF Bearing provides smooth rotation with minimal noise. Its compact size and reliable performance make it a go-to for manufacturers.

Medical vs Industrial: Where R16FF Bearing Excels
In medical devices such as dental drills, R16FF Bearing offers precision and quiet operation. The ABEC 1 tolerance ensures consistent performance in sensitive equipment.

Automotive vs Aerospace: Applications of R16FF Bearing
While R16FF Bearing suits automotive components like fans, its temperature range also makes it suitable for light aerospace applications. The lightweight design is an added benefit for mobility-focused uses.
