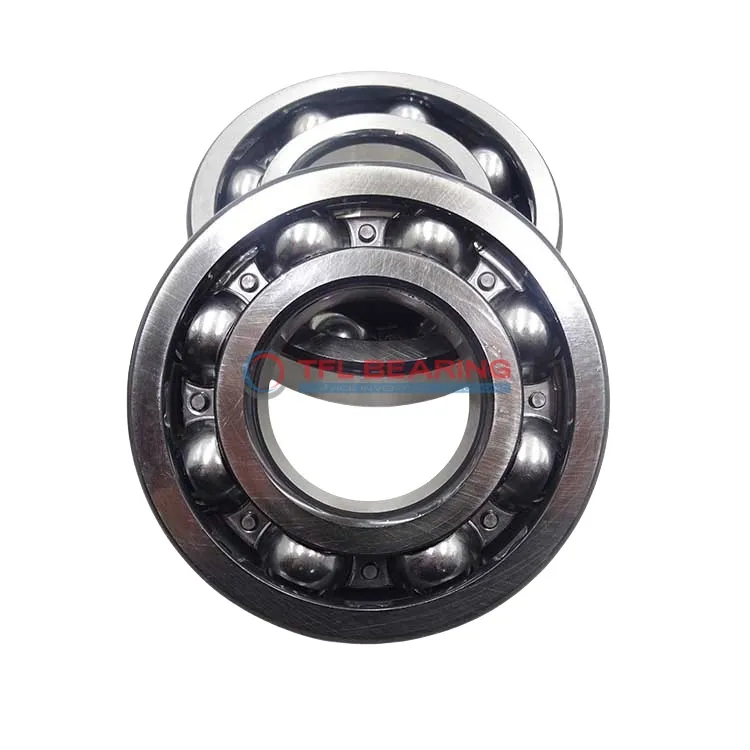

Single Row Deep Groove Ball Bearings 6338 M

Single Row Deep Groove Ball Bearings 6338 M

The 6338 M is a single-row deep groove ball bearing with a 190mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 83404 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable alternative for replacements. Perfect for heavy-duty machinery or industrial equipment where radial loads are prevalent.

Weighing 47.5kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6338 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 78 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 83404 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 3000 rpm
  • Weight 47500 g
  • price（$） 1180.449
Single Row Deep Groove Ball Bearings 6338 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6338 M Bearing

6338 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 83,404 lbf.
Its stainless steel cage ensures smooth operation and reduces wear during high-speed applications.

The single-row deep groove design of 6338 M Bearing enhances its ability to handle radial loads efficiently.
With a maximum speed of 3,000 rpm, it provides reliable performance in various industrial settings.

6338 M Bearing operates in temperatures ranging from -30°C to 120°C, making it suitable for diverse environments.
Its precision P6 tolerance class ensures consistent performance and long service life.

Application

Industrial Uses of 6338 M Bearing
6338 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its robust radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6338 M Bearing fits well in large transmission systems, providing smooth operation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6338 M Bearing supports conveyor belts and robotic arms, where precision and durability are key. The chrome steel construction ensures consistent performance even in high-speed scenarios.

Where Is 6338 M Bearing Used?
6338 M Bearing is found in wind turbines, handling radial loads efficiently while withstanding harsh environmental conditions. Its stainless steel cage adds corrosion resistance, ideal for outdoor applications.

In construction equipment, 6338 M Bearing is used in cranes and excavators, where its high static radial load capacity ensures stability. The P6 tolerance class guarantees precision in heavy-duty operations.

Built for Heavy-Duty Use: 6338 M Bearing
6338 M Bearing excels in mining machinery, where its ability to handle dynamic radial loads keeps equipment running smoothly. The wide temperature range makes it suitable for extreme environments.

In agricultural machinery, 6338 M Bearing supports harvesters and tractors, providing reliable performance under varying loads. Its durable construction reduces maintenance needs, saving time and costs.

Automotive vs Aerospace: Applications of 6338 M Bearing
In automotive systems, 6338 M Bearing is used in large drivetrains, offering durability under radial loads. For aerospace, its precision and reliability make it suitable for auxiliary equipment.

In marine applications, 6338 M Bearing handles radial loads in propulsion systems, while its corrosion-resistant materials ensure longevity. The metric sizing ensures compatibility with international standards.
