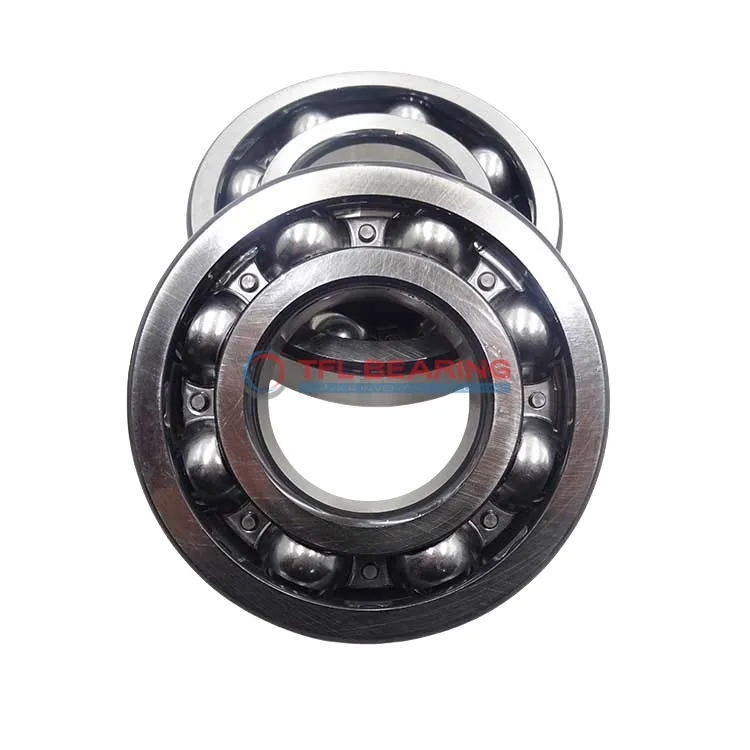

Single Row Deep Groove Ball Bearings 6338 M/C3HVQ6391

Single Row Deep Groove Ball Bearings 6338 M/C3HVQ6391

The 6338 M/C3HVQ6391 is a single-row deep groove ball bearing with a 190mm bore and 400mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 83,404 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design and machined metal cage ensure durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 47.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6338 M/C3HVQ6391
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 78 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 83404 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 3000 rpm
  • Weight 47500 g
Single Row Deep Groove Ball Bearings 6338 M/C3HVQ6391 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6338 M/C3HVQ6391 Bearing

6338 M/C3HVQ6391 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 83,404 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, enhancing durability and reducing friction.
With a maximum speed of 3,000 rpm, it delivers reliable performance in various conditions.

6338 M/C3HVQ6391 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance while maintaining high performance standards.

Application

Common Applications of 6338 M/C3HVQ6391 Bearing
In industrial settings, 6338 M/C3HVQ6391 Bearing is commonly used in large machinery like pumps and compressors, where its robust design handles heavy radial loads effortlessly.
The open seal and C3 clearance make it suitable for environments with thermal expansion, ensuring reliable performance even under varying temperatures.

Where Is 6338 M/C3HVQ6391 Bearing Used?
You’ll often find 6338 M/C3HVQ6391 Bearing in wind turbines, where its high load capacity and durability are essential for long-term operation.
Its metric sizing and compatibility with SKF models make it a versatile choice for global equipment manufacturers.

Built for Heavy-Duty Use: 6338 M/C3HVQ6391 Bearing
This bearing excels in mining equipment, where its chrome steel construction withstands harsh conditions and abrasive materials.
The machined metal cage adds extra strength, making it a dependable option for demanding applications.

Automotive vs Industrial: Applications of 6338 M/C3HVQ6391 Bearing
In automotive systems, 6338 M/C3HVQ6391 Bearing supports large components like axles, though it’s more frequently seen in industrial gearboxes.
Its high static radial load rating ensures stability in both sectors, whether in vehicles or heavy machinery.

Practical Applications of 6338 M/C3HVQ6391 Bearing
For conveyor systems, 6338 M/C3HVQ6391 Bearing offers smooth operation and low maintenance, thanks to its open design and C3 clearance.
The wide temperature range also makes it adaptable to various climates, from cold storage facilities to hot industrial plants.
