Single Row Deep Groove Ball Bearings 6334 M

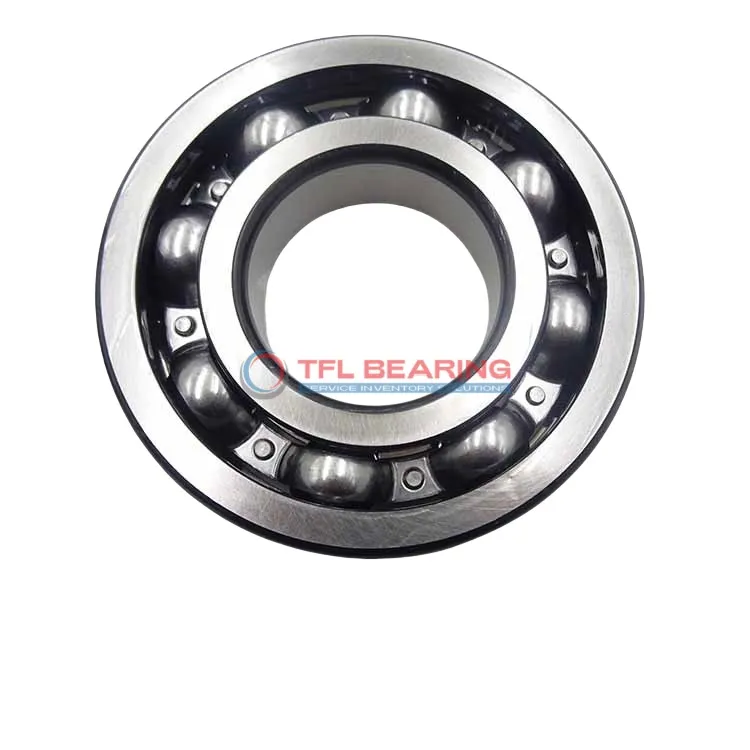

Single Row Deep Groove Ball Bearings 6334 M

The 6334 M is a single-row deep groove ball bearing with a 170mm bore and 360mm outer diameter, crafted from sturdy chrome steel for lasting performance. It manages radial loads up to 70140 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it adapts well to various environments.

This bearing is interchangeable with SKF models, offering a reliable alternative for replacements. Perfect for heavy-duty machinery or industrial equipment where radial load support is essential.

Weighing 34.9kg, it’s built to handle demanding applications. Compliant with RoHS and REACH standards, ensuring safety and environmental responsibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6334 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 72 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 70140 lbf
  • Static Radial Load 76435 lbf
  • Max Speed 3400 rpm
  • Weight 34.9 kg
  • price（$） 756.531
Single Row Deep Groove Ball Bearings 6334 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6334 M Bearing

6334 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 70140 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds.

The open design of 6334 M Bearing allows for easy lubrication and maintenance.
With a maximum speed of 3,400 rpm, it provides reliable performance in various applications.

6334 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision engineering ensures durability and long service life under heavy loads.

Application

Industrial Uses of 6334 M Bearing
6334 M Bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its robust construction handles significant radial loads.
The open design and P6 tolerance ensure reliable performance in demanding environments, making it suitable for continuous operation.

Where Is 6334 M Bearing Used?
In automotive applications, 6334 M Bearing supports components such as wheel hubs and transmissions, providing durability under high-speed conditions.
Its metric sizing and chrome steel material make it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6334 M Bearing
6334 M Bearing excels in construction equipment, where its static radial load capacity ensures stability under heavy loads.
The stainless steel cage enhances longevity, even in harsh working conditions.

Automotive vs Aerospace: Applications of 6334 M Bearing
In automotive systems, 6334 M Bearing is ideal for wheel assemblies, offering reliable performance under radial stress.
For aerospace, its precision and temperature resistance make it suitable for auxiliary equipment, though not for primary flight components.

Key Fields for 6334 M Bearing
6334 M Bearing is a go-to solution for agricultural machinery, where its durability withstands dusty and high-load environments.
The wide temperature range also ensures consistent performance in varying weather conditions.
