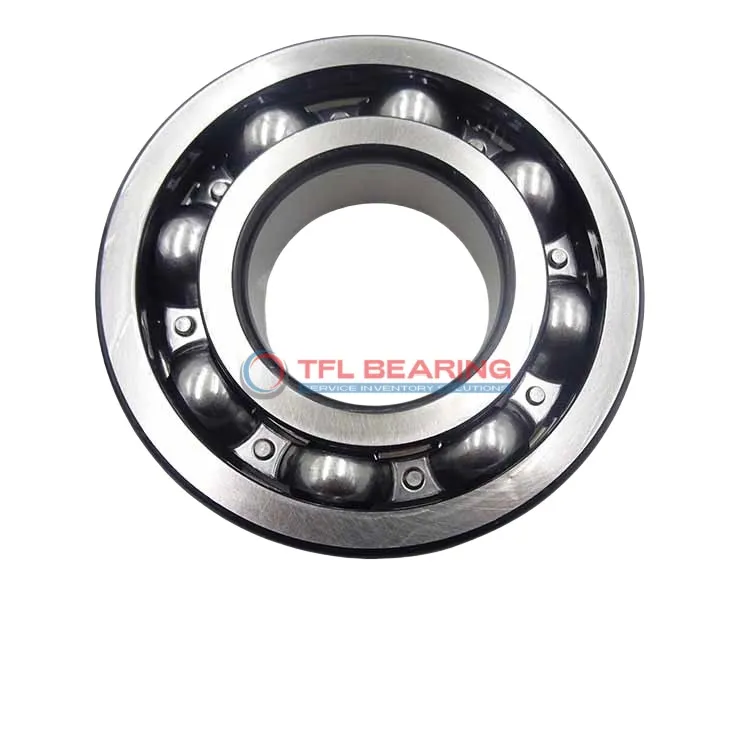

Single Row Deep Groove Ball Bearings 6334 M/C4H

Single Row Deep Groove Ball Bearings 6334 M/C4H

The 6334 M/C4H is a single-row deep groove ball bearing with a 170mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 70140 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design and machined metal cage ensure durability, while the C4 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial pumps or large machinery where radial loads are prevalent.

Weighing 34.9kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6334 M/C4H
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 72 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 70140 lbf
  • Static Radial Load 76435 lbf
  • Max Speed 3400 rpm
  • Weight 34.9 kg
  • price（$） 765.612
Single Row Deep Groove Ball Bearings 6334 M/C4H dimension drawing
Download DWG Download PDF

Features

Performance Features of 6334 M/C4H Bearing

6334 M/C4H Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 70,140 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 3,400 rpm, it balances durability and efficiency for industrial use.

6334 M/C4H Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for long-term use.

Application

Industrial Uses of 6334 M/C4H Bearing
This bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 6334 M/C4H Bearing a Preferred Choice?
Its chrome steel construction ensures durability in high-load applications, such as conveyor systems and agricultural equipment. The C4 radial clearance provides flexibility in thermal expansion, making it suitable for varying operating temperatures.

Built for Heavy-Duty Use: 6334 M/C4H Bearing
You’ll find this bearing in wind turbines and mining equipment, where its robust design withstands continuous operation. The machined metal cage adds stability, reducing wear even under intense radial forces.

Automotive vs Aerospace: Applications of 6334 M/C4H Bearing
In automotive settings, it supports large drivetrain components, while in aerospace, its precision helps with auxiliary equipment. The metric sizing ensures compatibility across different industries and regions.
