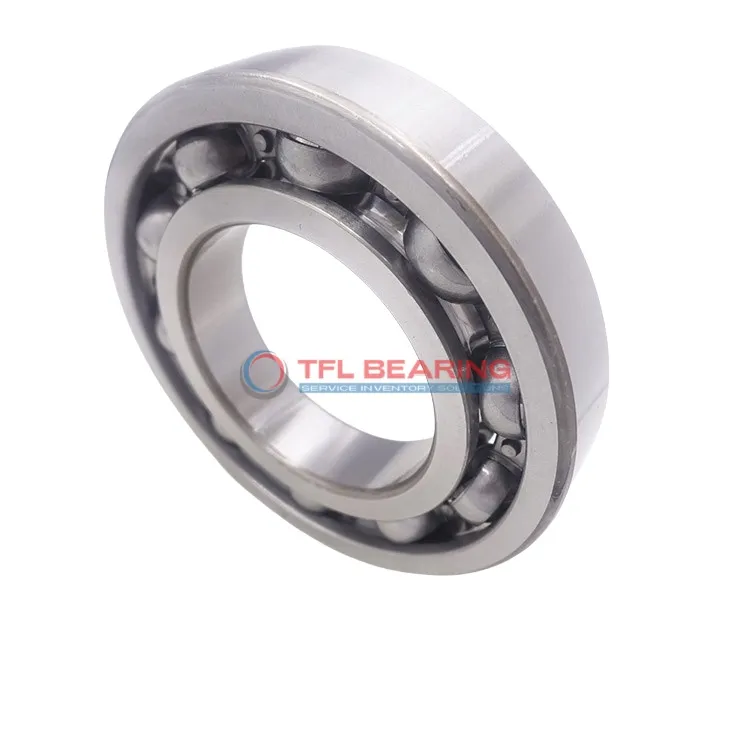

Single Row Deep Groove Ball Bearings 6330 M/C3HVL2071

Single Row Deep Groove Ball Bearings 6330 M/C3HVL2071

The 6330 M/C3HVL2071 is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 62047 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and machined metal cage ensure durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 25.5kg, it’s built to last and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330 M/C3HVL2071
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 4000 rpm
  • Weight 25.5 kg
  • price（$） 729.594
Single Row Deep Groove Ball Bearings 6330 M/C3HVL2071 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330 M/C3HVL2071 Bearing

6330 M/C3HVL2071 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 62047 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, enhancing durability and reducing wear.
With a maximum speed of 4,000 rpm, it balances performance and longevity.

6330 M/C3HVL2071 Bearing operates in temperatures from -30° to 120°C, adapting to various environments.
Its open design simplifies maintenance, keeping operational costs low.

Application

Industrial Uses of 6330 M/C3HVL2071 Bearing
The 6330 M/C3HVL2071 Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial fans, where its radial load capacity ensures reliable performance. Its open design and C3 clearance make it suitable for applications with thermal expansion or misalignment.

In automotive applications, 6330 M/C3HVL2071 Bearing supports components like wheel hubs and transmissions, providing durability under high radial loads. The chrome steel construction ensures long service life even in demanding conditions.

For automation systems, 6330 M/C3HVL2071 Bearing is a solid choice for robotic arms and assembly lines, where precision and smooth operation are key. The machined metal cage adds stability during high-speed rotations.

In household appliances like washing machines, 6330 M/C3HVL2071 Bearing offers quiet and efficient operation. Its wide temperature range makes it adaptable to various environments.
