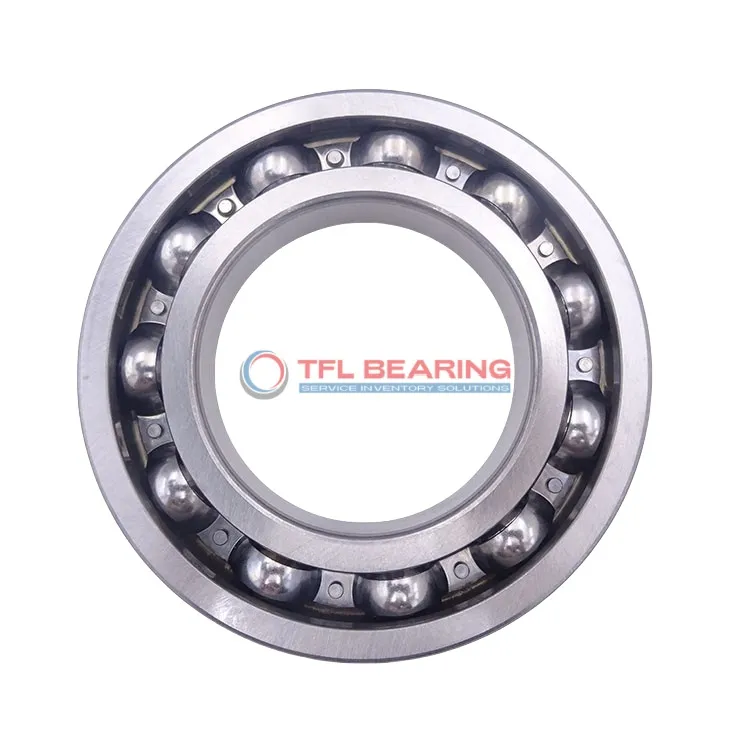

Single Row Deep Groove Ball Bearings 6322 M/C4VL2071

Single Row Deep Groove Ball Bearings 6322 M/C4VL2071

The 6322 M/C4VL2071 is a single-row deep groove ball bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 45636 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Weighing 11.1kg, it’s robust for heavy-duty use. Ideal for industrial machinery or equipment where radial load support is essential. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6322 M/C4VL2071
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 50 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 45636 lbf
  • Static Radial Load 40466 lbf
  • Max Speed 5300 rpm
  • Weight 11.1 kg
  • price（$） 379.494
Single Row Deep Groove Ball Bearings 6322 M/C4VL2071 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6322 M/C4VL2071 Bearing

6322 M/C4VL2071 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 45636 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.

The bearing operates efficiently within a temperature range of -30°C to 120°C, suitable for various industrial environments.
With a maximum speed of 5,300 rpm, it balances performance and longevity.

6322 M/C4VL2071 Bearing’s open design simplifies maintenance, reducing operational costs.
Its C4 radial clearance provides flexibility in different applications, ensuring reliable performance.

Application

Industrial Uses of 6322 M/C4VL2071 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending service life in demanding conditions.

Where Is 6322 M/C4VL2071 Bearing Used?
You’ll find it in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. The C4 clearance ensures reliable performance even under varying thermal conditions.

Built for Heavy-Duty Use: 6322 M/C4VL2071 Bearing
It’s a solid choice for conveyor systems in mining or agriculture, where its high dynamic load capacity shines. The machined metal cage adds durability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 6322 M/C4VL2071 Bearing
In cars, it supports drivetrain components, while in aerospace, its precision suits auxiliary equipment. The wide temperature range (-30° to 120°C) ensures versatility across industries.
