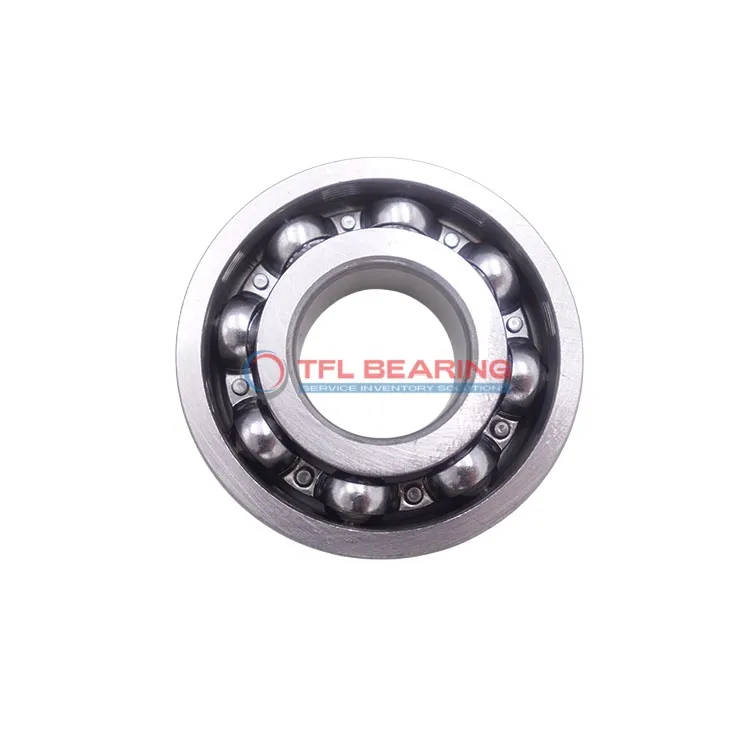

Single Row Deep Groove Ball Bearings 6319/C3S1GJN

Single Row Deep Groove Ball Bearings 6319/C3S1GJN

The 6319/C3S1GJN is a single-row deep groove ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 34396 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 5760g, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6319/C3S1GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 34396 lbf
  • Static Radial Load 26752 lbf
  • Max Speed 3000 rpm
  • Weight 5760 g
  • price（$） 79.56
Single Row Deep Groove Ball Bearings 6319/C3S1GJN dimension drawing
Download DWG Download PDF

Features

Core Advantages of 6319/C3S1GJN Bearing

6319/C3S1GJN Bearing features chrome steel rings and balls, ensuring durability and resistance to wear.
Its C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.

The single-row deep groove design handles high radial loads up to 34396 lbf with ease.
With a maximum speed of 3,000 rpm, it delivers reliable performance in demanding applications.

6319/C3S1GJN Bearing operates in temperatures from -30°C to 200°C, adapting to diverse environments.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of 6319/C3S1GJN Bearing
6319/C3S1GJN Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6319/C3S1GJN Bearing Used?
You’ll often find 6319/C3S1GJN Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its wide temperature range makes it suitable for both high-heat and cold environments.

Built for Heavy-Duty Use: 6319/C3S1GJN Bearing
6319/C3S1GJN Bearing excels in conveyor systems and agricultural equipment, where durability and load capacity are key. The open seal design allows for easy lubrication, extending its service life in demanding conditions.

Automotive vs Aerospace: Applications of 6319/C3S1GJN Bearing
In automotive settings, 6319/C3S1GJN Bearing supports high radial loads in drivetrains, while its precision makes it useful in aerospace auxiliary systems. The metric sizing ensures compatibility across various international standards.

Practical Applications of 6319/C3S1GJN Bearing
6319/C3S1GJN Bearing is a go-to choice for electric motors and generators, where its balanced performance and ABEC 1 tolerance meet industry needs. The chrome steel cage adds extra resilience in high-speed scenarios.
