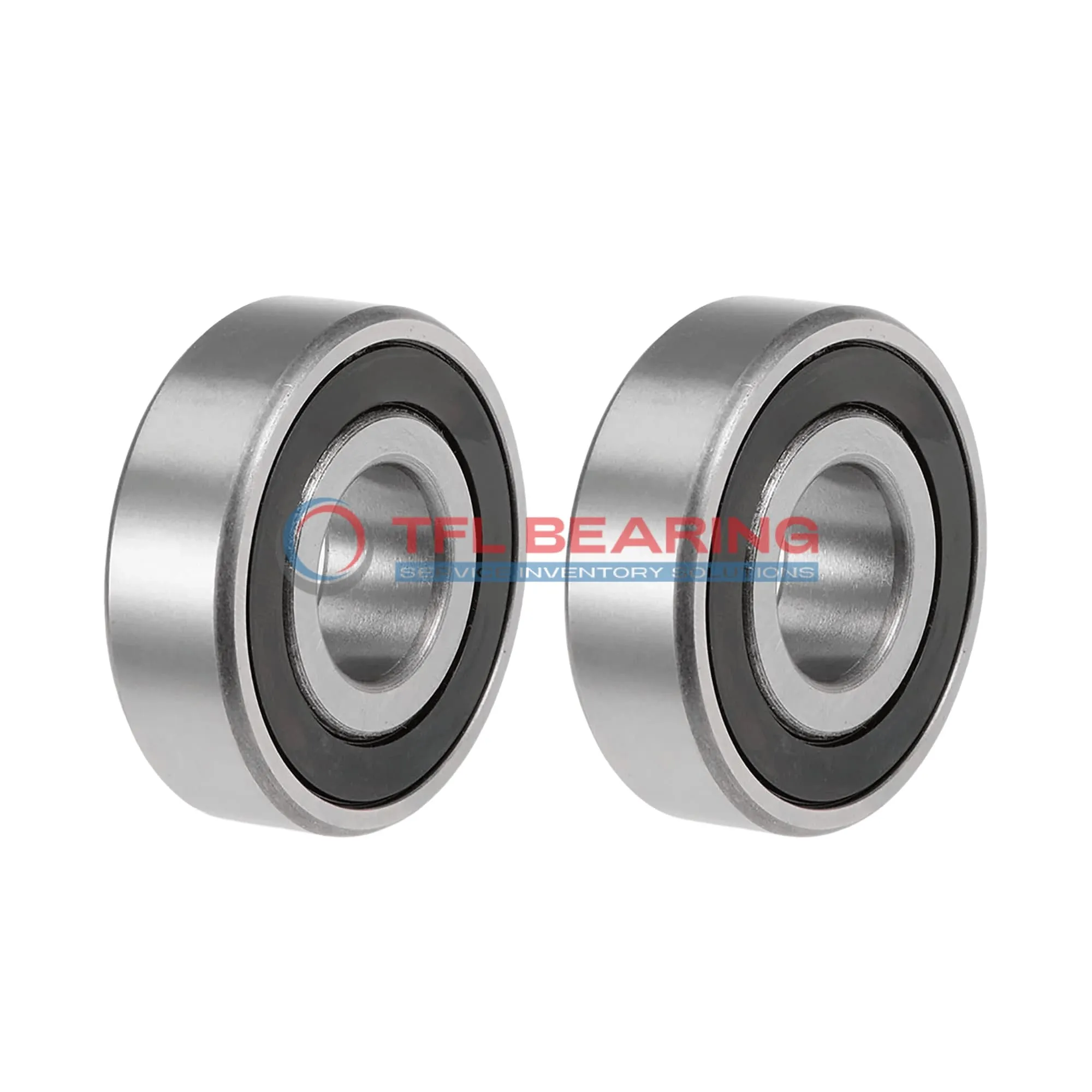

Single Row Deep Groove Ball Bearings 6318-2RS1

Single Row Deep Groove Ball Bearings 6318-2RS1

The 6318-2RS1 is a sealed single-row deep groove ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and operates smoothly at speeds up to 2400 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds durability, making it reliable for long-term use. It performs well in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for industrial machinery, pumps, or electric motors where radial loads are common.

Weighing 5.09kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6318-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 43 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 2400 rpm
  • Weight 5.09 kg
  • price（$） 83.718
Single Row Deep Groove Ball Bearings 6318-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 6318-2RS1 Bearing for Precision Tasks?

6318-2RS1 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 33,946 lbf makes it suitable for demanding industrial applications.

The stainless steel cage maintains ball alignment, reducing friction and wear over time.
With a maximum speed of 2,400 rpm, it offers reliable performance in various conditions.

6318-2RS1 Bearing operates in temperatures from -30° to 120°C, adapting to different environments.
Its grease lubrication ensures consistent performance with minimal maintenance required.

The P6 tolerance class provides precise operation, ideal for machinery requiring accuracy.
This bearing’s durable construction ensures a long service life, reducing replacement frequency.

Application

Industrial Uses of 6318-2RS1 Bearing
6318-2RS1 Bearing is commonly used in heavy machinery like pumps and compressors, where its sealed design keeps contaminants out. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is 6318-2RS1 Bearing Used?
In automotive applications, 6318-2RS1 Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity. The grease lubrication helps maintain smooth operation over long periods.

Built for Heavy-Duty Use: 6318-2RS1 Bearing
For agricultural equipment, 6318-2RS1 Bearing handles rough conditions with ease, from tractors to harvesters. Its stainless steel cage adds extra resistance to wear and corrosion.

Automotive vs Industrial: Applications of 6318-2RS1 Bearing
In industrial fans, 6318-2RS1 Bearing provides reliable performance with minimal maintenance. For automotive uses, it’s a go-to for drivetrain components due to its balanced load handling.

Perfect Fit for Automation: 6318-2RS1 Bearing
In conveyor systems, 6318-2RS1 Bearing ensures smooth movement of goods with its sealed protection. The P6 tolerance class makes it suitable for precision applications too.
