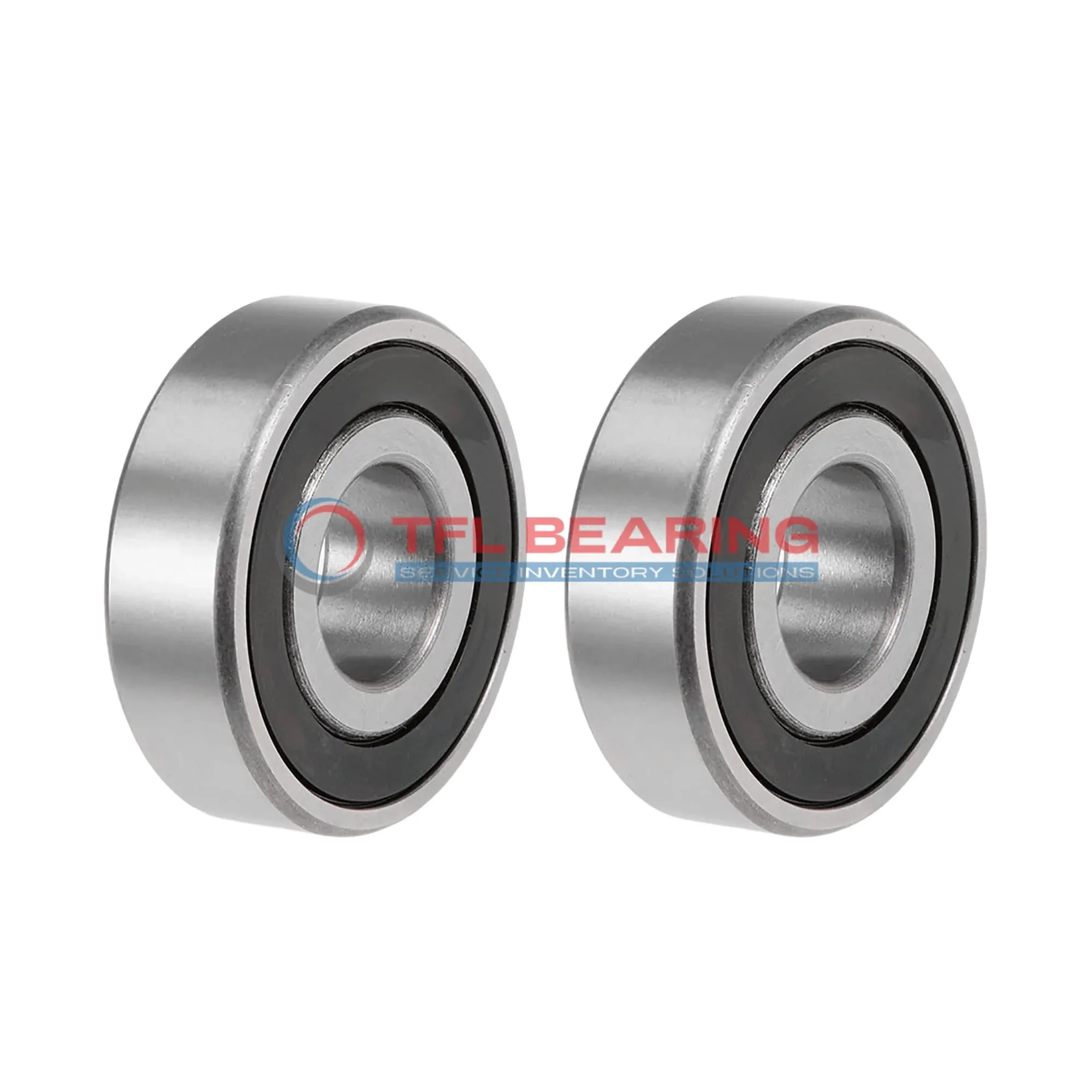

Single Row Deep Groove Ball Bearings 6318-2RS1/W64

Single Row Deep Groove Ball Bearings 6318-2RS1/W64

The 6318-2RS1/W64 is a single-row deep groove ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 32148 lbf and operates smoothly at speeds up to 3600 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4920g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6318-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 43 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 24055 lbf
  • Max Speed 3600 rpm
  • Weight 4920 g
Single Row Deep Groove Ball Bearings 6318-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6318-2RS1/W64 Bearing

6318-2RS1/W64 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 32,148 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs while extending service life.
With a maximum speed of 3,600 rpm, it balances durability and efficiency for smooth operation.

6318-2RS1/W64 Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its robust construction makes it suitable for demanding environments, ensuring long-term reliability.

Application

Industrial Uses of 6318-2RS1/W64 Bearing
6318-2RS1/W64 Bearing is commonly used in heavy machinery like pumps and compressors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6318-2RS1/W64 Bearing fits well in wheel hubs and transmissions, thanks to its robust radial load capacity. The chrome steel construction provides excellent durability for high-mileage use.

For automation systems, 6318-2RS1/W64 Bearing offers reliable performance in robotic arms and conveyor belts. Its ABEC 1 tolerance class ensures smooth operation in precision-driven environments.

What Makes 6318-2RS1/W64 Bearing a Preferred Choice?
6318-2RS1/W64 Bearing stands out in agricultural equipment due to its resistance to dust and moisture. The sealed design and solid oil lubrication make it ideal for harsh outdoor conditions.

In industrial fans, 6318-2RS1/W64 Bearing handles high speeds while maintaining stability. Its wide temperature range allows it to perform reliably in both hot and cold environments.

Built for Heavy-Duty Use: 6318-2RS1/W64 Bearing
6318-2RS1/W64 Bearing is a go-to choice for construction equipment like cranes and excavators. Its high static radial load capacity ensures it can handle heavy loads without compromising performance.

For food processing machinery, 6318-2RS1/W64 Bearing’s sealed design prevents contamination. The chrome steel materials also resist corrosion, making it suitable for wet and washdown environments.
