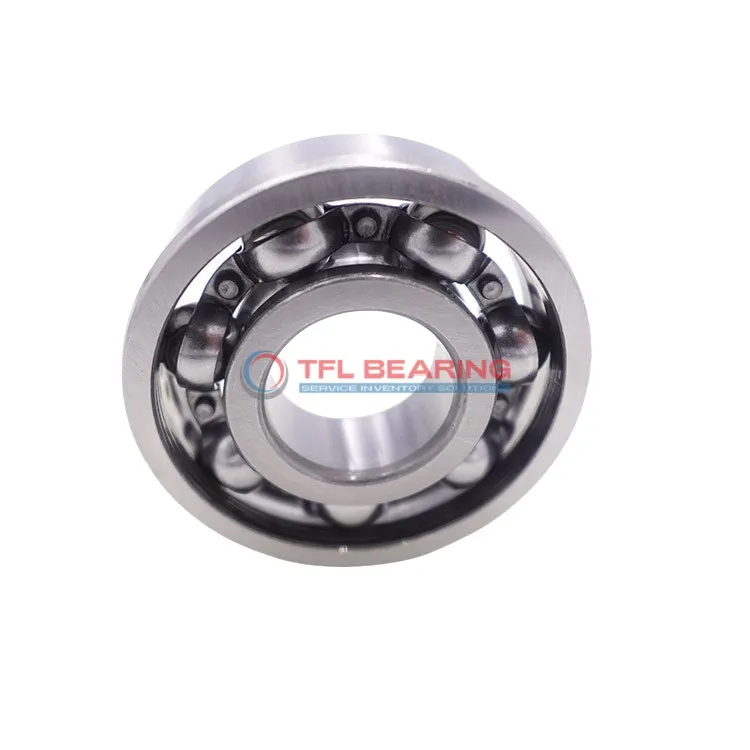

Single Row Deep Groove Ball Bearings 6317M

Single Row Deep Groove Ball Bearings 6317M

The 6317M is a single-row deep groove ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 299 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 4220g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6317M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 41 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 299 lbf
  • Static Radial Load 21762 lbf
  • Max Speed 3800 rpm
  • Weight 4220 g
Single Row Deep Groove Ball Bearings 6317M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6317M Bearing

6317M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 21762 lbf.
Its single-row deep groove design ensures smooth operation, even at speeds of 3,800 rpm.

The open seal type allows for easy maintenance, while the ABEC 1 tolerance ensures reliable performance.
With a temperature range of -30°C to 120°C, it works well in various environments.

The chrome steel cage keeps the balls aligned, reducing wear and extending service life.
Its dimensions of 85 mm×180 mm×41 mm make it suitable for a range of industrial applications.

Application

Industrial Uses of 6317M Bearing
6317M Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6317M Bearing fits well in wheel hubs and transmissions, providing reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding conditions.

For automation systems, 6317M Bearing supports robotic arms and conveyor belts, offering smooth rotation and low maintenance. The metric sizing makes it compatible with a wide range of equipment.

In household appliances like washing machines, 6317M Bearing ensures quiet and efficient operation. Its robust design handles the constant motion typical in such devices.
