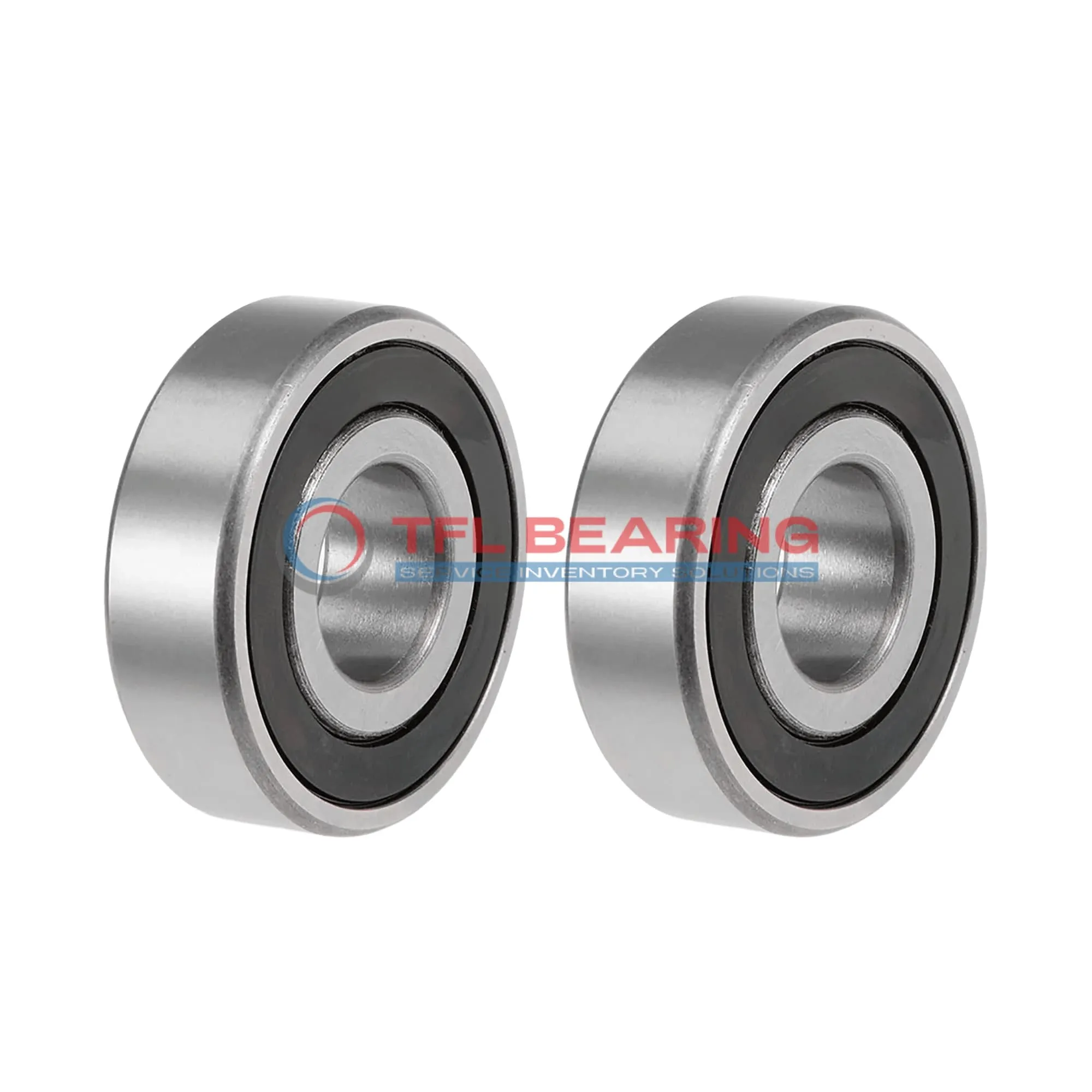

Single Row Deep Groove Ball Bearings 6317-2RS1/C3

Single Row Deep Groove Ball Bearings 6317-2RS1/C3

The 6317-2RS1/C3 is a single-row deep groove ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21762 lbf and operates smoothly at speeds up to 3800 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s well-suited for industrial machinery, pumps, or electric motors where radial loads are common.

Weighing 4220g, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, it’s safe for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6317-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 41 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 299 lbf
  • Static Radial Load 21762 lbf
  • Max Speed 3800 rpm
  • Weight 4220 g
  • price（$） 84.51
Single Row Deep Groove Ball Bearings 6317-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6317-2RS1/C3 Bearing

6317-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its sealed design protects against dust and moisture, ensuring reliable operation in various environments.

The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature applications.
With a maximum speed of 3,800 rpm, it balances performance and durability.

6317-2RS1/C3 Bearing’s single-row deep groove design ensures smooth rotation under radial loads.
The chrome steel cage maintains ball alignment, reducing friction and extending service life.

This bearing operates in temperatures from -30°C to 120°C, adapting to diverse working conditions.
Its static radial load capacity of 21,762 lbf ensures stability in demanding applications.

Application

Common Applications of 6317-2RS1/C3 Bearing
6317-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance under varying thermal conditions.

In automotive applications, 6317-2RS1/C3 Bearing is often found in wheel hubs and transmissions, providing smooth radial load support. Its chrome steel construction offers durability for long-term use in demanding environments.

For automation systems, 6317-2RS1/C3 Bearing works well in robotic arms and conveyor belts, thanks to its balanced load capacity. The sealed design also reduces maintenance needs in dusty or wet conditions.

Around the home, 6317-2RS1/C3 Bearing can be used in appliances like washing machines, where its quiet operation is a plus. The metric sizing makes it easy to replace in various European and Asian models.
