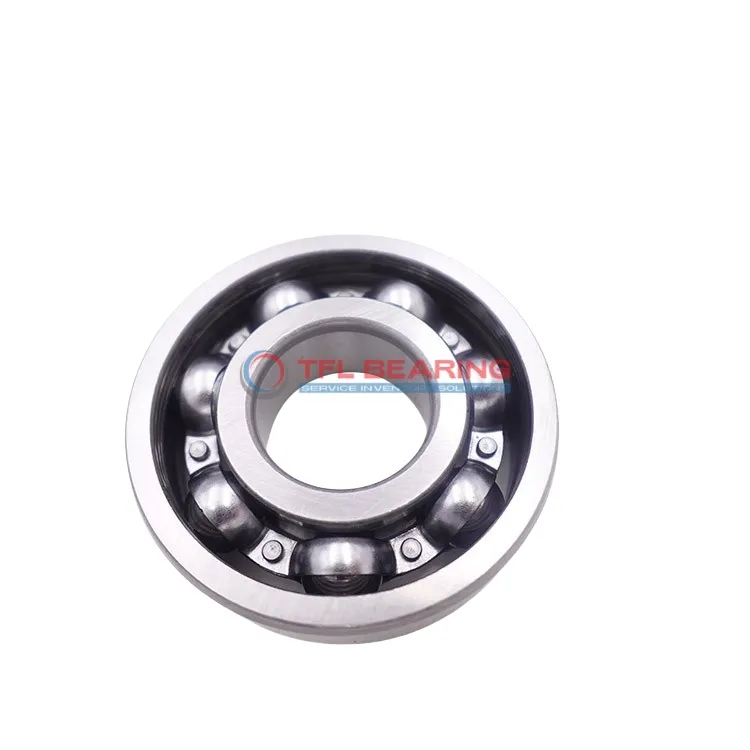

Single Row Deep Groove Ball Bearings 6316/C3S1

Single Row Deep Groove Ball Bearings 6316/C3S1

The 6316/C3S1 is a single-row deep groove ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel for durability. It supports radial loads up to 27652 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication, while the C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 200°C. The chrome steel cage adds to its long service life.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It suits applications like electric motors or pumps where radial load handling is key.

Weighing 3670g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and reliable option for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6316/C3S1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 27652 lbf
  • Static Radial Load 19491 lbf
  • Max Speed 4000 rpm
  • Weight 3670 g
  • price（$） 63.36
Single Row Deep Groove Ball Bearings 6316/C3S1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6316/C3S1 Bearing

6316/C3S1 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 27,652 lbf.
Its C3 radial clearance ensures smooth operation, even under varying thermal conditions.

The open design of 6316/C3S1 Bearing allows for easy lubrication, enhancing its performance in high-speed applications.
With a maximum speed of 4,000 rpm, it balances durability and efficiency.

6316/C3S1 Bearing operates in temperatures from -30°C to 200°C, making it suitable for diverse environments.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.

Application

Common Applications of 6316/C3S1 Bearing
In industrial settings, 6316/C3S1 Bearing is widely used in pumps and electric motors, thanks to its robust radial load capacity. The C3 clearance ensures reliable performance even under thermal expansion.

Where Is 6316/C3S1 Bearing Used?
You’ll often find 6316/C3S1 Bearing in automotive applications like wheel hubs, where its deep groove design handles both radial and axial loads smoothly. Its chrome steel construction offers long-lasting durability.

Built for Heavy-Duty Use: 6316/C3S1 Bearing
This bearing excels in conveyor systems and gearboxes, where its high dynamic load rating ensures consistent operation. The open seal design allows for easy lubrication in demanding environments.

Automotive vs Industrial: Applications of 6316/C3S1 Bearing
In cars, 6316/C3S1 Bearing supports wheel assemblies, while in factories, it’s a go-to for machinery spindles. Its versatility makes it a reliable choice across different sectors.

Perfect Fit for Automation: 6316/C3S1 Bearing
Robotic arms and CNC machines benefit from 6316/C3S1 Bearing’s precision and high-speed capability. The ABEC 1 tolerance ensures smooth movement in automated processes.
