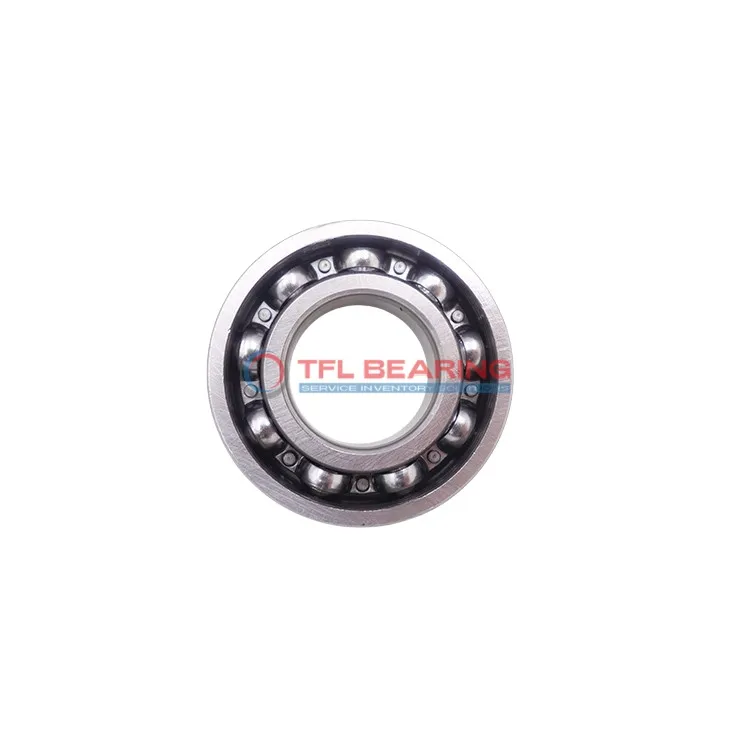

Single Row Deep Groove Ball Bearings 6315 M/C4HVL0241

Single Row Deep Groove Ball Bearings 6315 M/C4HVL0241

The 6315 M/C4HVL0241 is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 25403 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or heavy equipment where radial loads are common, it weighs 3030g for a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6315 M/C4HVL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 25403 lbf
  • Static Radial Load 17355 lbf
  • Max Speed 4300 rpm
  • Weight 3030 g
Single Row Deep Groove Ball Bearings 6315 M/C4HVL0241 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6315 M/C4HVL0241 Bearing

6315 M/C4HVL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 25403 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and smooth operation.

The C4 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a maximum speed of 4,300 rpm, it delivers reliable performance in industrial applications.

6315 M/C4HVL0241 Bearing operates in temperatures from -30°C to 120°C, ensuring versatility across environments.
Its open design simplifies maintenance while maintaining high efficiency.

Application

Industrial Uses of 6315 M/C4HVL0241 Bearing
This bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads effectively. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 6315 M/C4HVL0241 Bearing Used?
You’ll find it in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. The C4 clearance ensures reliable performance even under varying thermal conditions.

Built for Heavy-Duty Use: 6315 M/C4HVL0241 Bearing
Ideal for conveyor systems in mining operations, this bearing’s machined metal cage provides stability under continuous use. Its metric sizing makes it compatible with most European industrial equipment.

Automotive vs Industrial: Applications of 6315 M/C4HVL0241 Bearing
In vehicles, it supports drivetrain components, while in factories, it keeps production line rollers running smoothly. The wide temperature range (-30° to 120°C) suits both environments perfectly.

Practical Applications of 6315 M/C4HVL0241 Bearing
For agricultural machinery like harvesters, this bearing’s high dynamic load capacity handles uneven forces well. The ABEC 1 tolerance offers good precision for most farming equipment needs.
