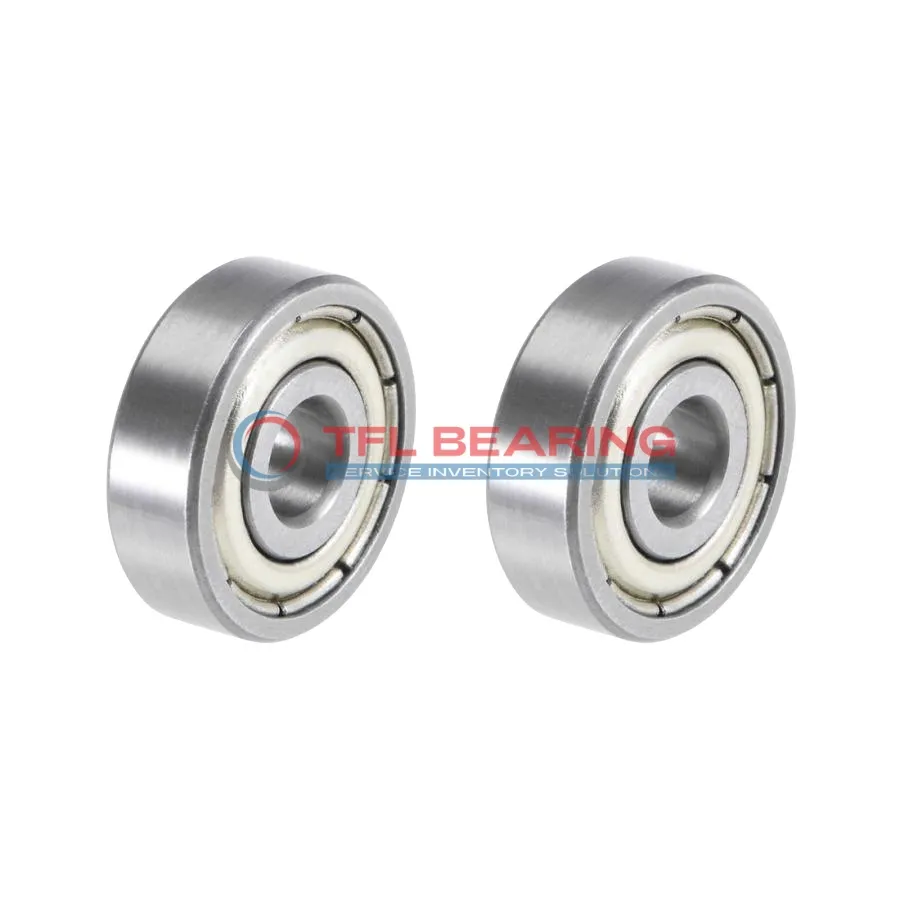

Single Row Deep Groove Ball Bearings 6314-ZJEM

Single Row Deep Groove Ball Bearings 6314-ZJEM

The 6314-ZJEM is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2338 lbf and operates smoothly at speeds up to 4500 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, making it suitable for long-term use in various conditions.

This bearing fits well in applications like electric motors or pumps where radial loads are common. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 2530g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314-ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
  • price（$） 48.564
Single Row Deep Groove Ball Bearings 6314-ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6314-ZJEM Bearing Resist Wear?

6314-ZJEM Bearing features chrome steel rings and balls, enhancing its resistance to wear in radial load applications.
The shielded design helps protect against contaminants, maintaining smooth operation over time.

With a dynamic radial load capacity of 2338 lbf, it handles demanding conditions effectively.
Its ABEC 1 tolerance ensures consistent performance, while the temperature range of -30°C to 120°C adds versatility.

The chrome steel cage keeps components aligned, reducing friction and extending service life.
At 4,500 rpm maximum speed, it balances durability and efficiency for various industrial uses.

Application

Industrial Uses of 6314-ZJEM Bearing
6314-ZJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures it can handle moderate radial loads with ease.

What Makes 6314-ZJEM Bearing a Preferred Choice?
In automotive applications, 6314-ZJEM Bearing fits well in wheel hubs and transmissions due to its balanced load capacity. Its ABEC 1 tolerance makes it reliable for everyday driving conditions.

Built for Heavy-Duty Use: 6314-ZJEM Bearing
For automation systems, 6314-ZJEM Bearing works smoothly in conveyor belts and robotic arms. The metric sizing ensures compatibility with a variety of equipment across different industries.

Medical vs Industrial: Where 6314-ZJEM Bearing Excels
While not typically used in medical devices, 6314-ZJEM Bearing shines in industrial settings like gearboxes and compressors. Its temperature range allows it to perform reliably in diverse environments.
