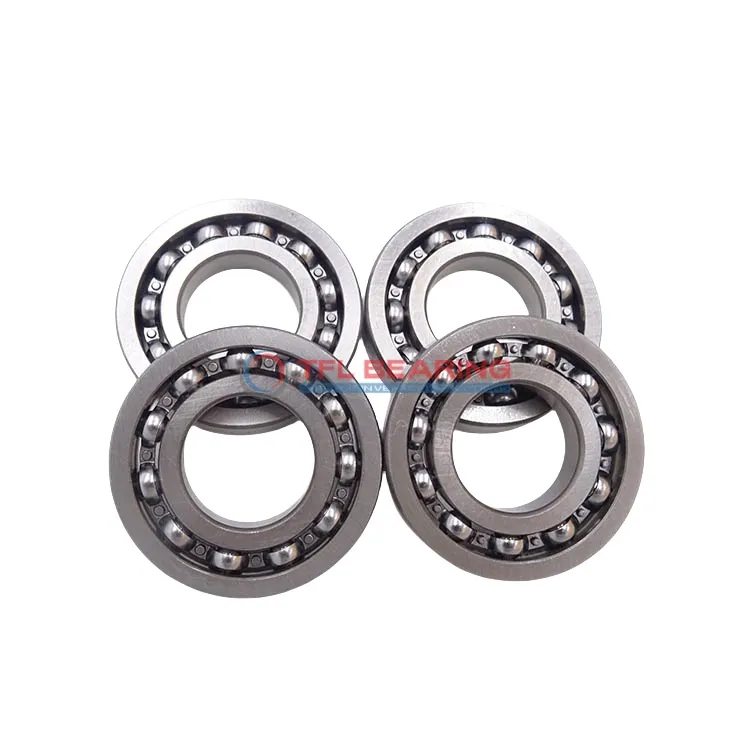

Single Row Deep Groove Ball Bearings 6314 Y/C78

Single Row Deep Groove Ball Bearings 6314 Y/C78

The 6314 Y/C78 is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2338 lbf and operates smoothly at speeds up to 4500 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 2530g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314 Y/C78
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
  • price（$） 189.063
Single Row Deep Groove Ball Bearings 6314 Y/C78 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6314 Y/C78 Bearing

6314 Y/C78 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2338 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances load distribution, reducing wear and extending service life.
With a maximum speed of 4,500 rpm, it balances efficiency and durability for industrial use.

6314 Y/C78 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance, making it a practical choice for many setups.

Application

Industrial Uses of 6314 Y/C78 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type simplifies lubrication and maintenance in dusty environments.

Where Is 6314 Y/C78 Bearing Used?
You’ll often find it in automotive applications, such as wheel hubs and transmissions, thanks to its balanced load capacity. The chrome steel construction ensures durability even under continuous use.

Built for Heavy-Duty Use: 6314 Y/C78 Bearing
It’s a reliable choice for conveyor systems in manufacturing plants, where its ABEC 1 tolerance provides consistent performance. The metric sizing makes it easy to replace in European equipment.

Automotive vs Industrial: Applications of 6314 Y/C78 Bearing
In cars, it supports smooth rotation in drivetrains, while in factories, it keeps production lines running with minimal downtime. The wide temperature range suits both indoor and outdoor use.

Perfect Fit for Automation: 6314 Y/C78 Bearing
Robotic arms and assembly line equipment benefit from its precise radial load handling. The chrome steel cage adds longevity in high-cycle applications.
