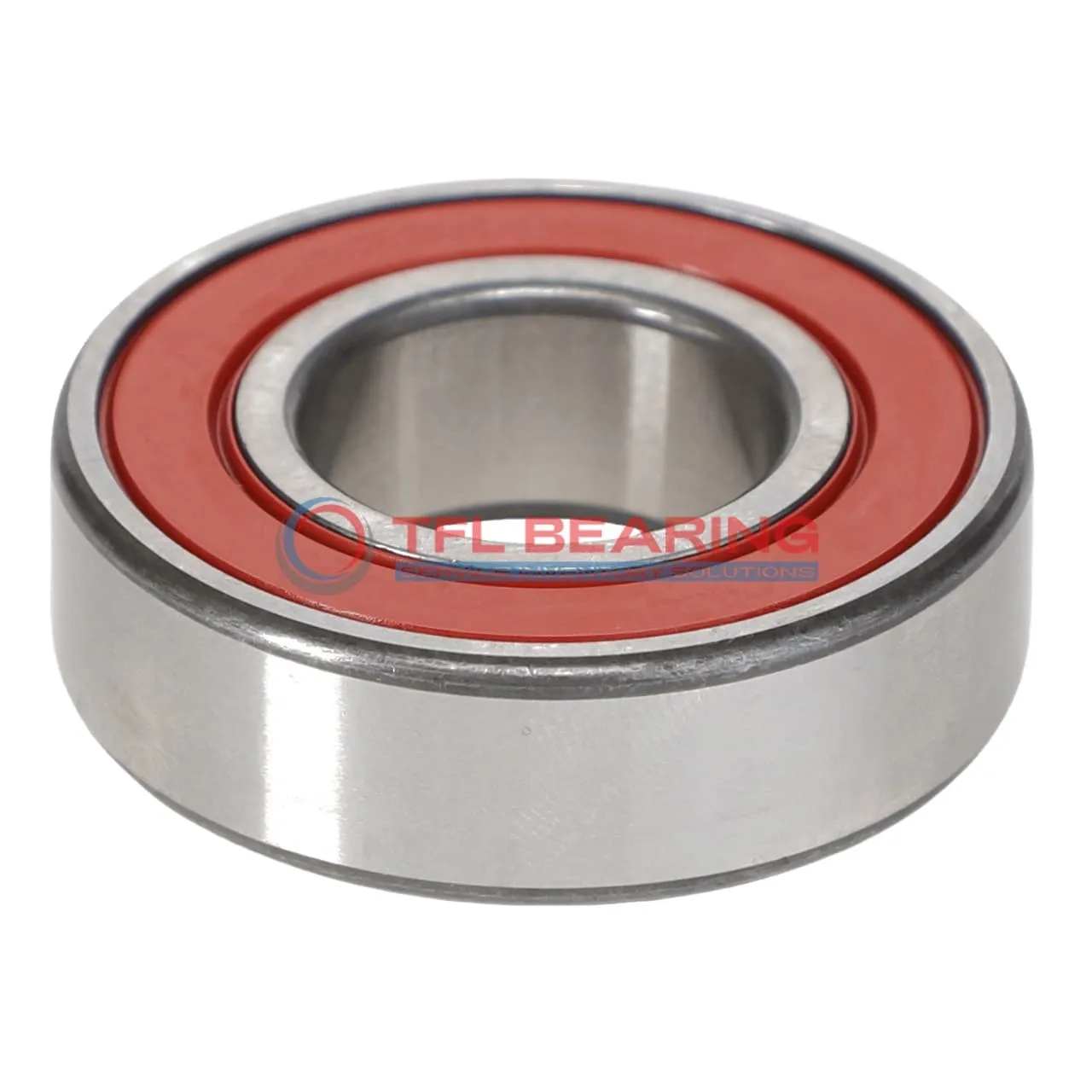

Single Row Deep Groove Ball Bearings 6314-2RSJEM

Single Row Deep Groove Ball Bearings 6314-2RSJEM

The 6314-2RSJEM is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 2338 lbf and operates smoothly at speeds up to 4500 RPM.

Sealed on both sides, this bearing keeps out dust and dirt, making it low-maintenance and ideal for harsh environments. Its chrome steel cage adds durability, while the ABEC 1 tolerance ensures reliable precision.

Suitable for temperatures from -30°C to 120°C, it’s a versatile choice for industrial machinery or automotive applications. Weighing 2.53kg, it’s robust yet manageable for its size.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, offering a cost-effective replacement option. Perfect for radial load scenarios where sealed protection is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6314-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
  • price（$） 54.936
Single Row Deep Groove Ball Bearings 6314-2RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6314-2RSJEM Bearing for Precision Tasks?

6314-2RSJEM Bearing features a sealed design, protecting against contaminants and ensuring smooth radial load handling.
Its chrome steel construction provides durability and resistance to wear in various applications.

With a dynamic radial load capacity of 2338 lbf, it performs reliably under demanding conditions.
The ABEC 1 tolerance class ensures consistent precision, making it suitable for high-accuracy tasks.

Operating within a temperature range of -30°C to 120°C, it adapts well to diverse environments.
The sealed design also reduces maintenance needs, saving time and costs.

Application

Industrial Uses of 6314-2RSJEM Bearing
6314-2RSJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6314-2RSJEM Bearing Used?
You’ll often find 6314-2RSJEM Bearing in automotive applications such as wheel hubs and transmissions, thanks to its ability to handle radial loads smoothly. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6314-2RSJEM Bearing
6314-2RSJEM Bearing works well in agricultural equipment, where its robust design can withstand rough conditions. The sealed feature also helps prolong its lifespan by reducing dirt ingress.

Medical vs Industrial: Where 6314-2RSJEM Bearing Excels
In medical devices, 6314-2RSJEM Bearing offers reliable performance in equipment like centrifuges, where precision is key. Meanwhile, its industrial applications include conveyor systems that require consistent operation.

Perfect Fit for Automation: 6314-2RSJEM Bearing
6314-2RSJEM Bearing is a great choice for robotic arms and automated assembly lines, thanks to its smooth operation and sealed protection. The chrome steel cage adds extra durability for long-term use.
