Single Row Deep Groove Ball Bearings 6313-2Z

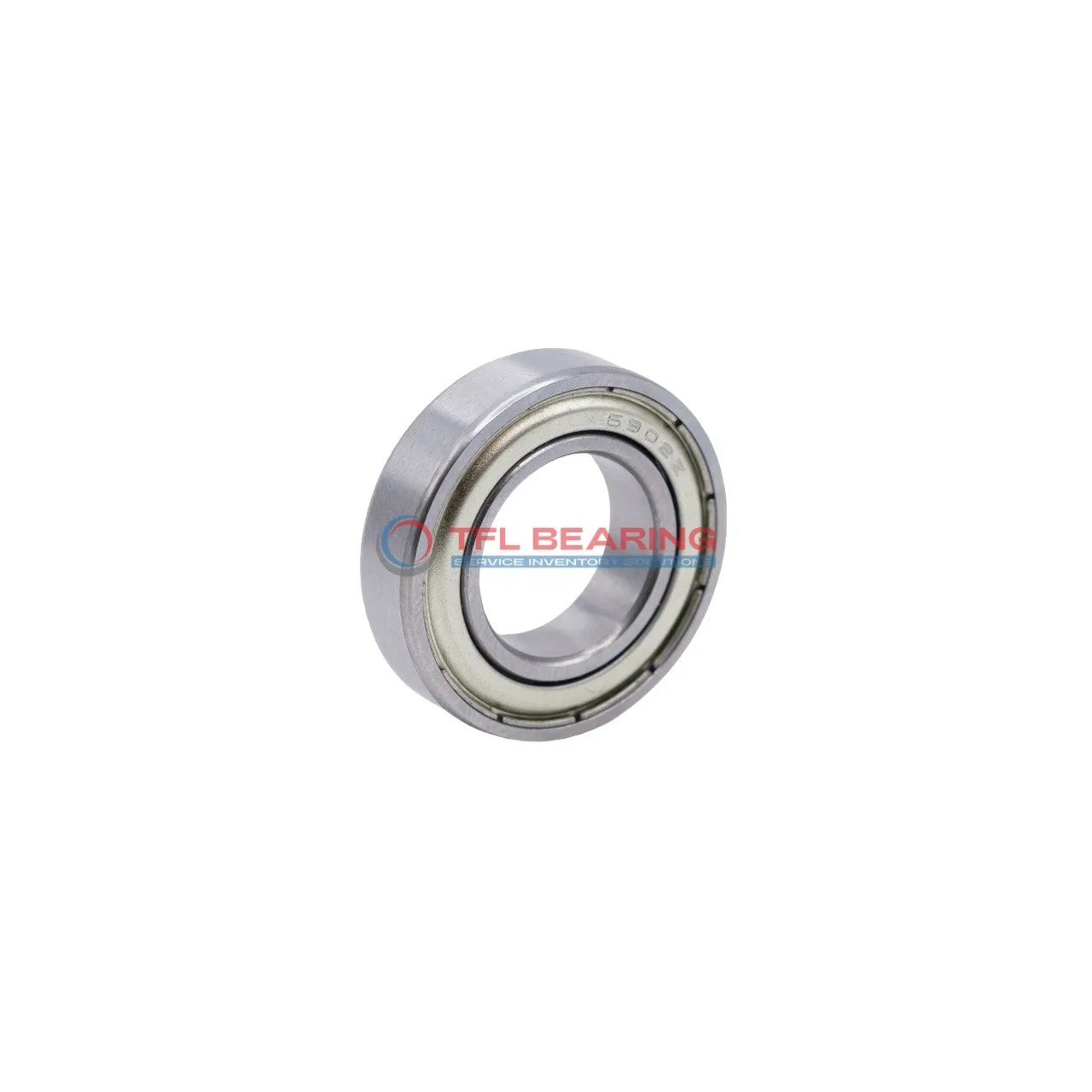

Single Row Deep Groove Ball Bearings 6313-2Z

The 6313-2Z is a single-row deep groove ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21919 lbf and operates smoothly at speeds up to 5300 RPM.

Its shielded design keeps grease in and contaminants out, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 2.16kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6313-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 21919 lbf
  • Static Radial Load 13489 lbf
  • Max Speed 5300 rpm
  • Weight 2.16 kg
  • price（$） 43.56
Single Row Deep Groove Ball Bearings 6313-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose 6313-2Z Bearing for Precision Tasks?

6313-2Z Bearing features a single-row deep groove design, optimised for radial load handling with a capacity of 21919 lbf.
Its shielded construction protects against contaminants while maintaining smooth operation.

The chrome steel rings and balls enhance durability, suitable for temperatures from -30° to 120°C.
With a P6 tolerance class, it ensures precise performance in demanding applications.

Grease lubrication and stainless steel cage reduce maintenance needs, extending service life.
Its maximum speed of 5,300 rpm balances efficiency and reliability.

Application

Industrial Uses of 6313-2Z Bearing
6313-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6313-2Z Bearing fits well in wheel hubs and transmissions, providing smooth radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6313-2Z Bearing supports robotic arms and conveyor belts, offering reliable performance. The grease lubrication helps maintain efficiency over long periods of use.

In household appliances, 6313-2Z Bearing can be found in washing machines and fans, where its quiet operation is a plus. The stainless steel cage adds to its longevity in everyday use.
