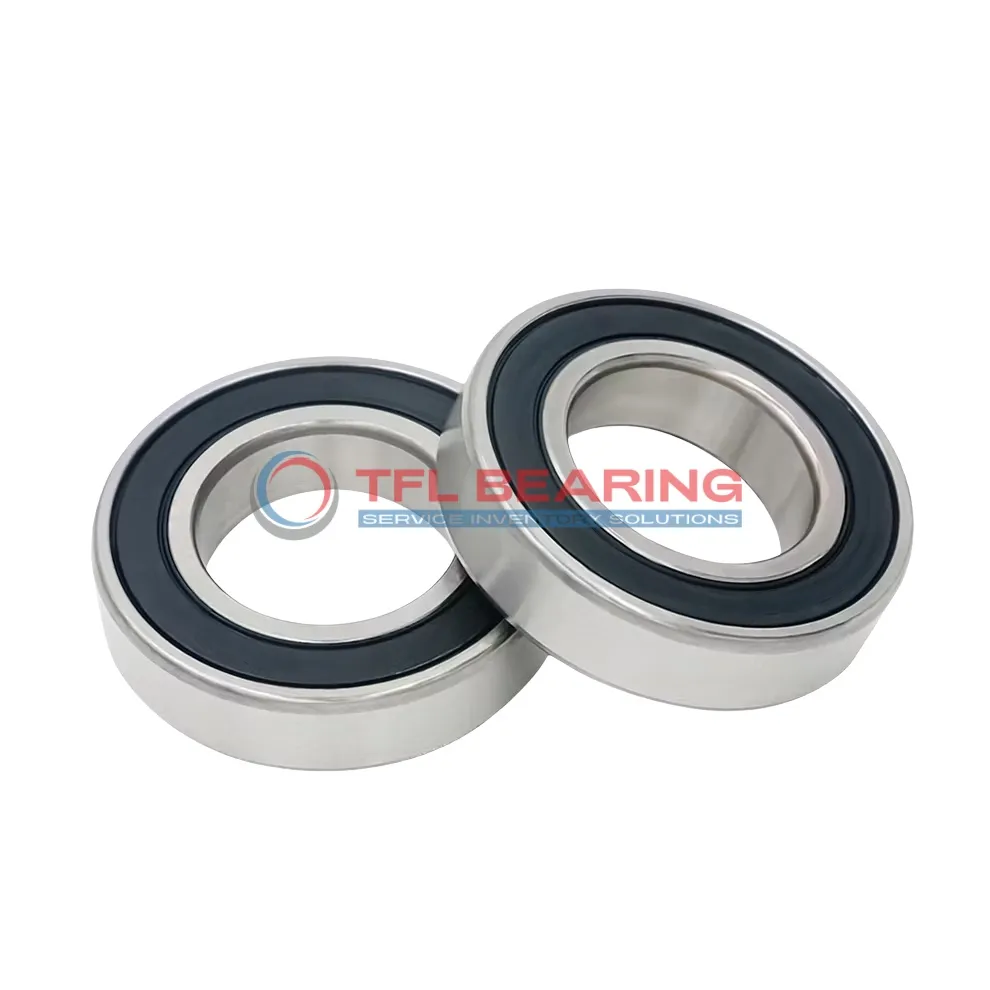

Single Row Deep Groove Ball Bearings 6312-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6312-2RS1/C3GJN

The 6312-2RS1/C3GJN is a single-row deep groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 18412 lbf and operates smoothly at speeds up to 5300 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the C3 radial clearance allows for thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 1699g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Max Speed 5300 rpm
  • Weight 1699 g
  • price（$） 31.446
Single Row Deep Groove Ball Bearings 6312-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6312-2RS1/C3GJN Bearing for Precision Tasks?

6312-2RS1/C3GJN Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 18412 lbf, it handles demanding conditions reliably.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating temperatures.

Designed for speeds up to 5,300 rpm, it balances efficiency and longevity.
The sealed design reduces maintenance needs, making it a practical choice for industrial use.

Application

Industrial Uses of 6312-2RS1/C3GJN Bearing
6312-2RS1/C3GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design protects against dust and debris. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6312-2RS1/C3GJN Bearing a Preferred Choice?
In automotive applications, 6312-2RS1/C3GJN Bearing is ideal for wheel hubs and transmissions, thanks to its high radial load capacity. The chrome steel construction offers durability, while the sealed design reduces maintenance needs.

Perfect Fit for Automation: 6312-2RS1/C3GJN Bearing
For automated systems and robotics, 6312-2RS1/C3GJN Bearing provides reliable performance in components like conveyor belts and robotic arms. Its consistent operation and low maintenance make it a practical choice for high-use environments.

Medical vs Industrial: Where 6312-2RS1/C3GJN Bearing Excels
In medical devices, 6312-2RS1/C3GJN Bearing is used in equipment like centrifuges, where precision and hygiene are key. The sealed design prevents contamination, while the chrome steel material ensures long-term reliability.
