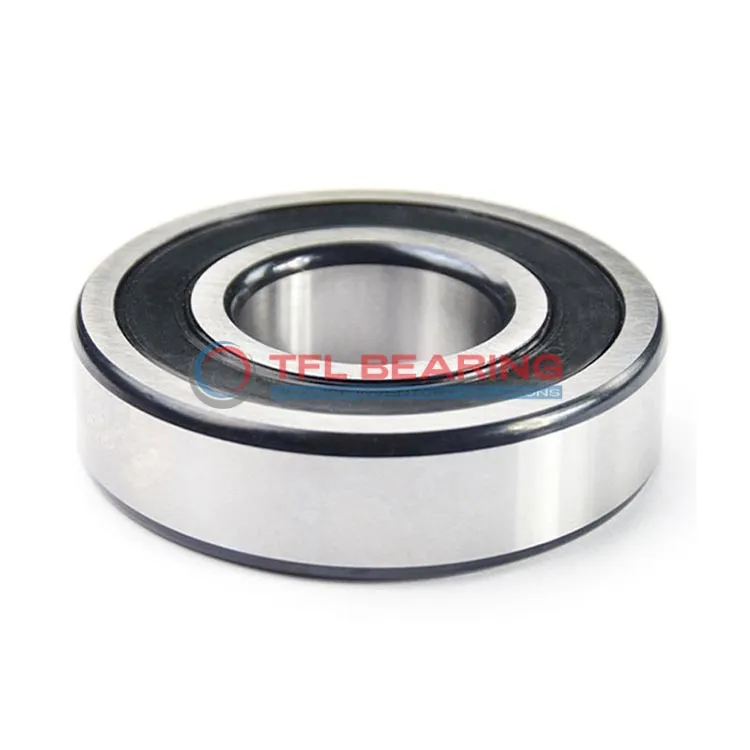

Single Row Deep Groove Ball Bearings 6310-RS1Z/C3S0GJN6

Single Row Deep Groove Ball Bearings 6310-RS1Z/C3S0GJN6

The 6310-RS1Z/C3S0GJN6 is a single-row deep groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Featuring one shielded side and one sealed side, it offers good protection against dust while maintaining easy lubrication. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 150°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1050g, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6310-RS1Z/C3S0GJN6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type One Side Shielded,One Side Seal
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 13938 lbf
  • Static Radial Load 861 lbf
  • Max Speed 6000 rpm
  • Weight 1050 g
  • price（$） 20.574
Single Row Deep Groove Ball Bearings 6310-RS1Z/C3S0GJN6 dimension drawing
Download DWG Download PDF

Features

How Is 6310-RS1Z/C3S0GJN6 Bearing Engineered for Reliability?

6310-RS1Z/C3S0GJN6 Bearing features chrome steel rings and balls, ensuring durability under radial loads.
Its dynamic radial load capacity of 13,938 lbf makes it suitable for heavy-duty applications.
The one-side shielded and one-side sealed design protects against contaminants while maintaining lubrication.
With a temperature range of -30°C to 150°C, it performs reliably in varied environments.

Application

Industrial Uses of 6310-RS1Z/C3S0GJN6 Bearing
6310-RS1Z/C3S0GJN6 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. The shielded and sealed sides help keep contaminants out, extending its lifespan in dusty environments.

In automotive applications, 6310-RS1Z/C3S0GJN6 Bearing fits well in wheel hubs and transmissions, offering reliable performance under varying speeds. Its C3 clearance allows for slight thermal expansion, making it suitable for temperature fluctuations.

For automation systems, 6310-RS1Z/C3S0GJN6 Bearing works smoothly in robotic arms and conveyor belts, thanks to its chrome steel construction. The balanced design ensures minimal vibration, which is key for precision movements.

In household appliances like washing machines, 6310-RS1Z/C3S0GJN6 Bearing provides quiet and durable operation. The sealed side prevents grease leakage, keeping the appliance clean and maintenance-free.
