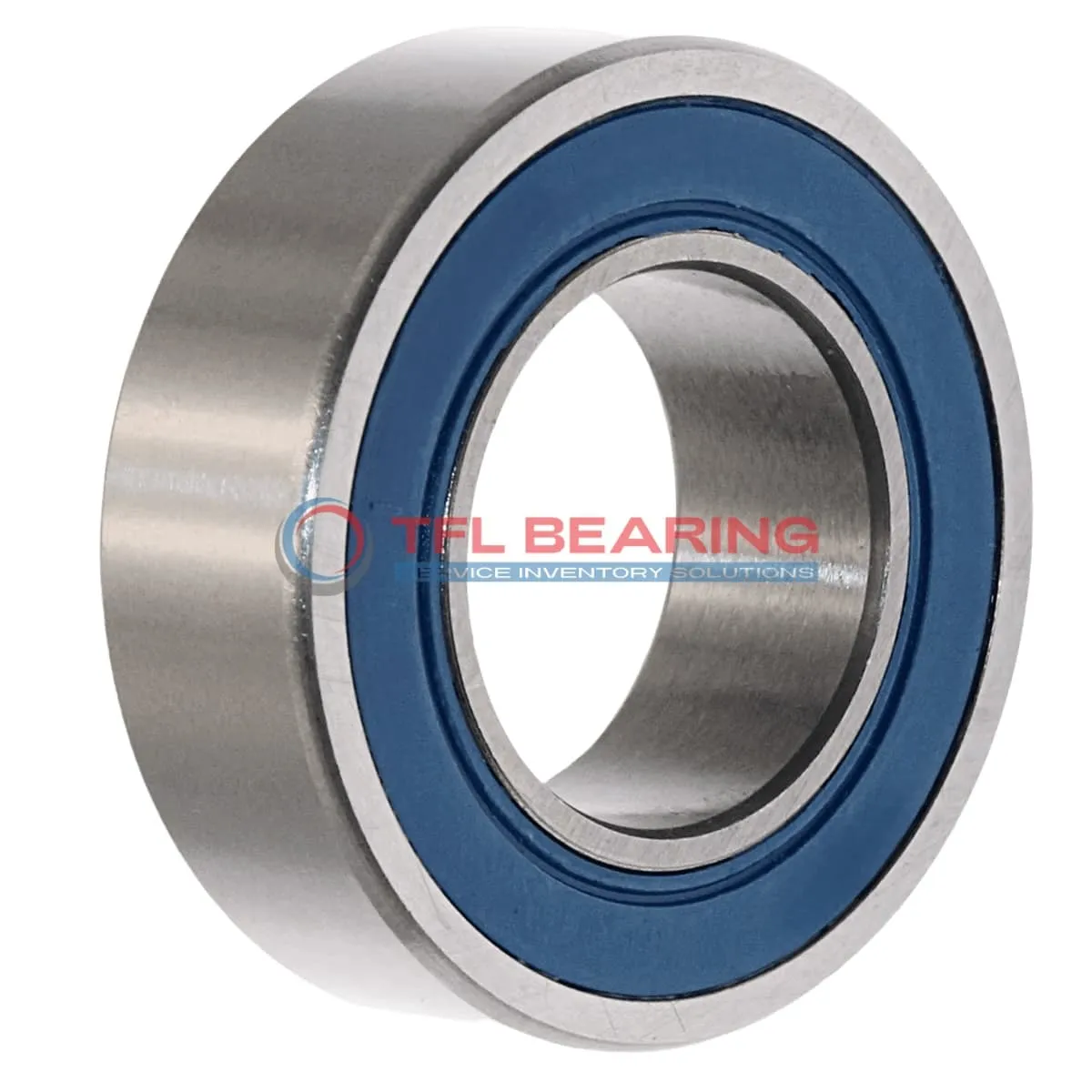

Single Row Deep Groove Ball Bearings 6310-RS1/C3GJN

Single Row Deep Groove Ball Bearings 6310-RS1/C3GJN

The 6310-RS1/C3GJN is a single-row deep groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from durable chrome steel. It manages radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM.

Sealed on both sides, this bearing keeps dirt out and lubrication in, extending its lifespan. The C3 radial clearance offers a bit more room for thermal expansion, making it versatile in varying temperatures.

Ideal for electric motors or pumps, it performs reliably in temperatures from -30°C to 120°C. Weighing 1050g, it’s sturdy yet manageable for its size.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice. Interchangeable with SKF bearings, it’s handy for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6310-RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13938 lbf
  • Static Radial Load 861 lbf
  • Max Speed 6000 rpm
  • Weight 1050 g
  • price（$） 18.72
Single Row Deep Groove Ball Bearings 6310-RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6310-RS1/C3GJN Bearing

6310-RS1/C3GJN Bearing is designed for radial loads, with a dynamic radial load capacity of 13938 lbf for reliable performance.
Its sealed construction protects against contaminants, making it suitable for various environments.

The chrome steel rings and balls enhance durability, while the C3 radial clearance ensures smooth operation.
With a maximum speed of 6,000 rpm, it balances efficiency and longevity.

6310-RS1/C3GJN Bearing operates in temperatures from -30°C to 120°C, adapting to different working conditions.
Its robust design reduces maintenance needs, saving time and costs.

Application

Industrial Uses of 6310-RS1/C3GJN Bearing
6310-RS1/C3GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6310-RS1/C3GJN Bearing fits well in wheel hubs and alternators, thanks to its radial load capacity and durability. The chrome steel construction also resists wear in high-mileage scenarios.

For automation systems, 6310-RS1/C3GJN Bearing works smoothly in robotic arms and conveyor belts, providing consistent movement. Its sealed feature reduces maintenance needs in dusty or wet environments.

Around the home, 6310-RS1/C3GJN Bearing can be found in appliances like washing machines, where quiet operation matters. The metric sizing makes it easy to replace in most European-made devices.
