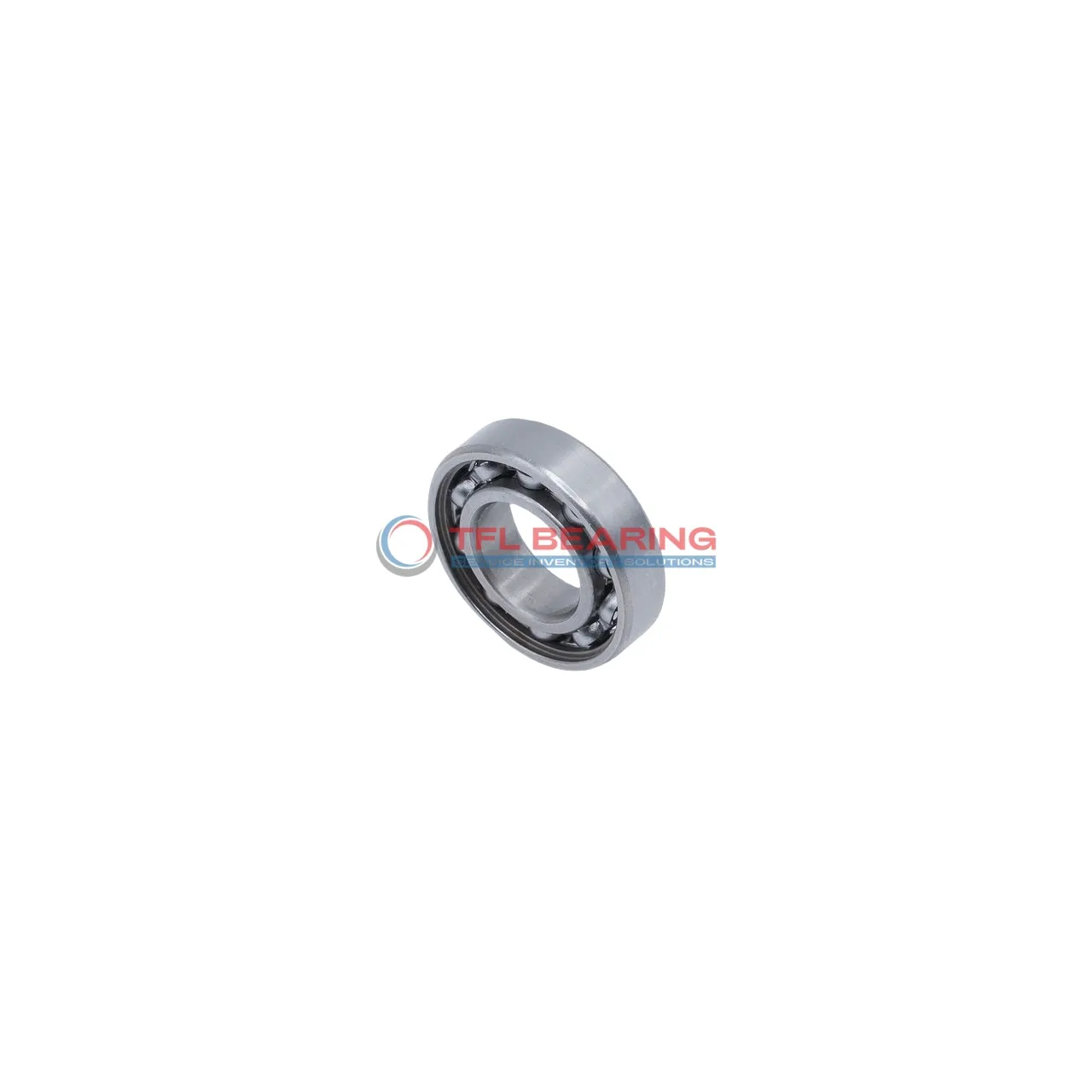

Single Row Deep Groove Ball Bearings 6309/C3W64

Single Row Deep Groove Ball Bearings 6309/C3W64

The 6309/C3W64 is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 811g, it offers a balance of strength and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6309/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g
Single Row Deep Groove Ball Bearings 6309/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6309/C3W64 Bearing

6309/C3W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 11915 lbf.
Its solid oil lubrication ensures consistent performance, reducing the need for frequent maintenance.

The C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a maximum speed of 6,700 rpm, it delivers reliable performance in a range of applications.

Designed for temperatures from -30°C to 120°C, 6309/C3W64 Bearing performs well in diverse environments.
Its open seal type simplifies inspection and maintenance, saving time and effort.

Application

Common Applications of 6309/C3W64 Bearing
In industrial settings, 6309/C3W64 Bearing is widely used in machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design and solid oil lubrication make it suitable for environments with moderate contamination.

Where Is 6309/C3W64 Bearing Used?
You’ll often find 6309/C3W64 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durability and C3 clearance for thermal expansion. Its chrome steel construction also handles high-speed rotations well.

Built for Heavy-Duty Use: 6309/C3W64 Bearing
For automation equipment like conveyor belts, 6309/C3W64 Bearing offers reliable performance with minimal maintenance. The solid oil lubrication extends service life even in continuous operation.

Medical vs Industrial: Where 6309/C3W64 Bearing Excels
In medical devices like centrifuges, 6309/C3W64 Bearing provides quiet and precise rotation. Meanwhile, in industrial gearboxes, its robust design handles heavier loads effortlessly.

Perfect Fit for Automation: 6309/C3W64 Bearing
6309/C3W64 Bearing works well in robotic arms and assembly lines, where its consistent performance and easy integration are valued. The metric sizing ensures compatibility with standard components.
