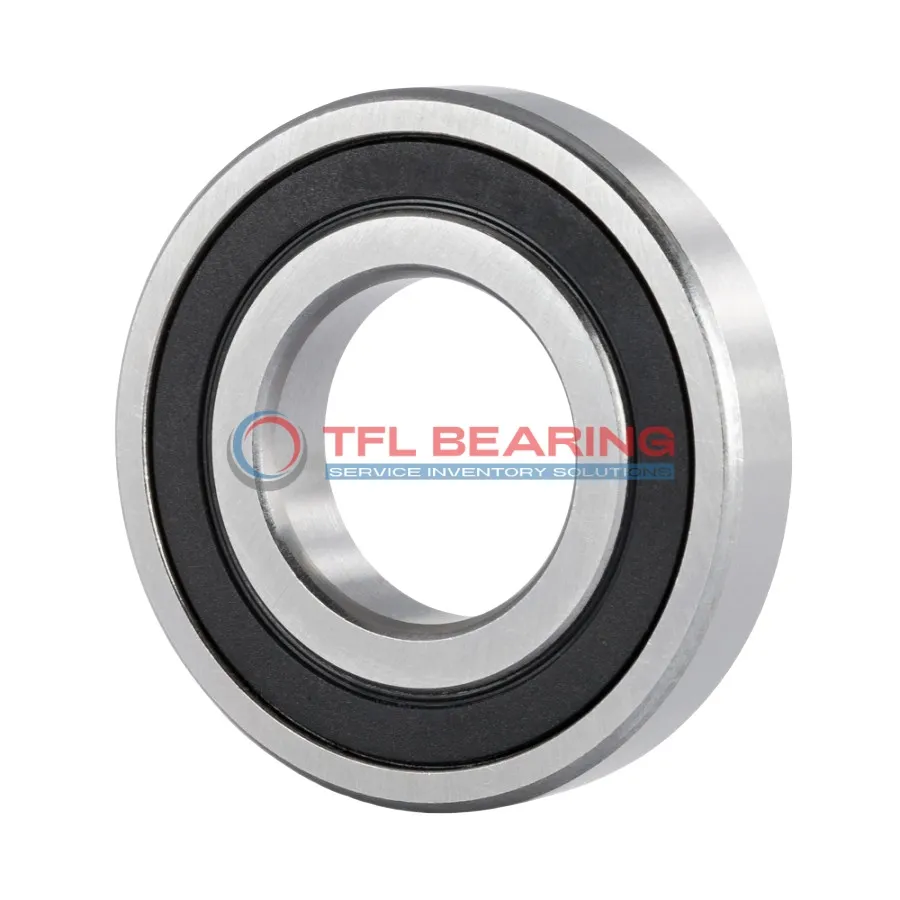

Single Row Deep Groove Ball Bearings 6309-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6309-2RS1/C3GJN

The 6309-2RS1/C3GJN is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It’s ideal for electric motors, pumps, or gearboxes where radial loads dominate.

Weighing 811g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for most industrial applications. Works well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6309-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g
  • price（$） 14.625
Single Row Deep Groove Ball Bearings 6309-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6309-2RS1/C3GJN Bearing

6309-2RS1/C3GJN Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11915 lbf, ensuring reliable performance in various applications.

The sealed design of 6309-2RS1/C3GJN Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 6,700 rpm, it balances durability and efficiency for smooth operation.

6309-2RS1/C3GJN Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
Its C3 radial clearance ensures optimal performance under varying load conditions.

The chrome steel cage in 6309-2RS1/C3GJN Bearing keeps the balls aligned, reducing wear and tear.
This design also minimises maintenance needs, saving time and costs.

Application

Industrial Uses of 6309-2RS1/C3GJN Bearing
6309-2RS1/C3GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

What Makes 6309-2RS1/C3GJN Bearing a Preferred Choice?
In automotive applications, 6309-2RS1/C3GJN Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. The sealed feature also reduces maintenance needs, making it ideal for long-term use.

Perfect Fit for Automation: 6309-2RS1/C3GJN Bearing
For automated systems, 6309-2RS1/C3GJN Bearing works smoothly in conveyor belts and robotic arms, where consistent radial load handling is key. Its ABEC 1 tolerance ensures precision in repetitive tasks.

Medical vs Industrial: Where 6309-2RS1/C3GJN Bearing Excels
In medical devices like centrifuges, 6309-2RS1/C3GJN Bearing offers quiet operation and durability. Meanwhile, in industrial settings, it handles heavier loads in equipment like gearboxes without compromising performance.

Essential Roles of 6309-2RS1/C3GJN Bearing
6309-2RS1/C3GJN Bearing is a reliable choice for household appliances like washing machines, where its sealed design prevents dust ingress. The chrome steel balls and cage ensure long-lasting smooth rotation.
