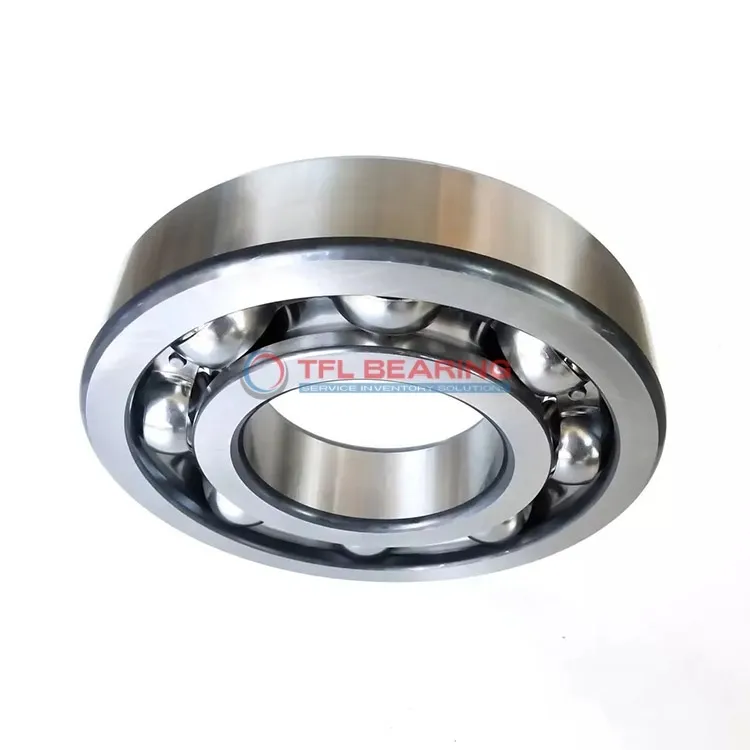

Single Row Deep Groove Ball Bearings 6308 TN9/C3

Single Row Deep Groove Ball Bearings 6308 TN9/C3

The 6308 TN9/C3 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 915 lbf and operates smoothly at speeds reaching 7500 RPM.

Its open design and nylon cage reduce friction, ensuring quiet and efficient performance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 620g, it’s a robust choice for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308 TN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
  • price（$） 9.072
Single Row Deep Groove Ball Bearings 6308 TN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6308 TN9/C3 Bearing

6308 TN9/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 915 lbf, making it suitable for various industrial applications.
The nylon cage ensures smooth operation and reduces friction during high-speed rotations.
With a maximum speed of 7,500 rpm, it delivers reliable performance under demanding conditions.

Application

Common Applications of 6308 TN9/C3 Bearing
This bearing is widely used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads effectively. The open seal type allows for easy lubrication adjustments in dusty environments.

In automotive applications, 6308 TN9/C3 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying speeds. Its C3 clearance ensures reliable performance even with thermal expansion.

For automation equipment, 6308 TN9/C3 Bearing’s nylon cage reduces noise, making it suitable for precision robotics. The chrome steel construction offers durability in continuous operation.

Where Is 6308 TN9/C3 Bearing Used?
You’ll often find this bearing in household appliances like washing machines, where its balanced load capacity ensures quiet operation. The metric sizing makes it compatible with many European-designed systems.

The 6308 TN9/C3 Bearing also works well in agricultural machinery, handling moderate radial loads in gearboxes. Its temperature range suits both indoor and outdoor applications.
