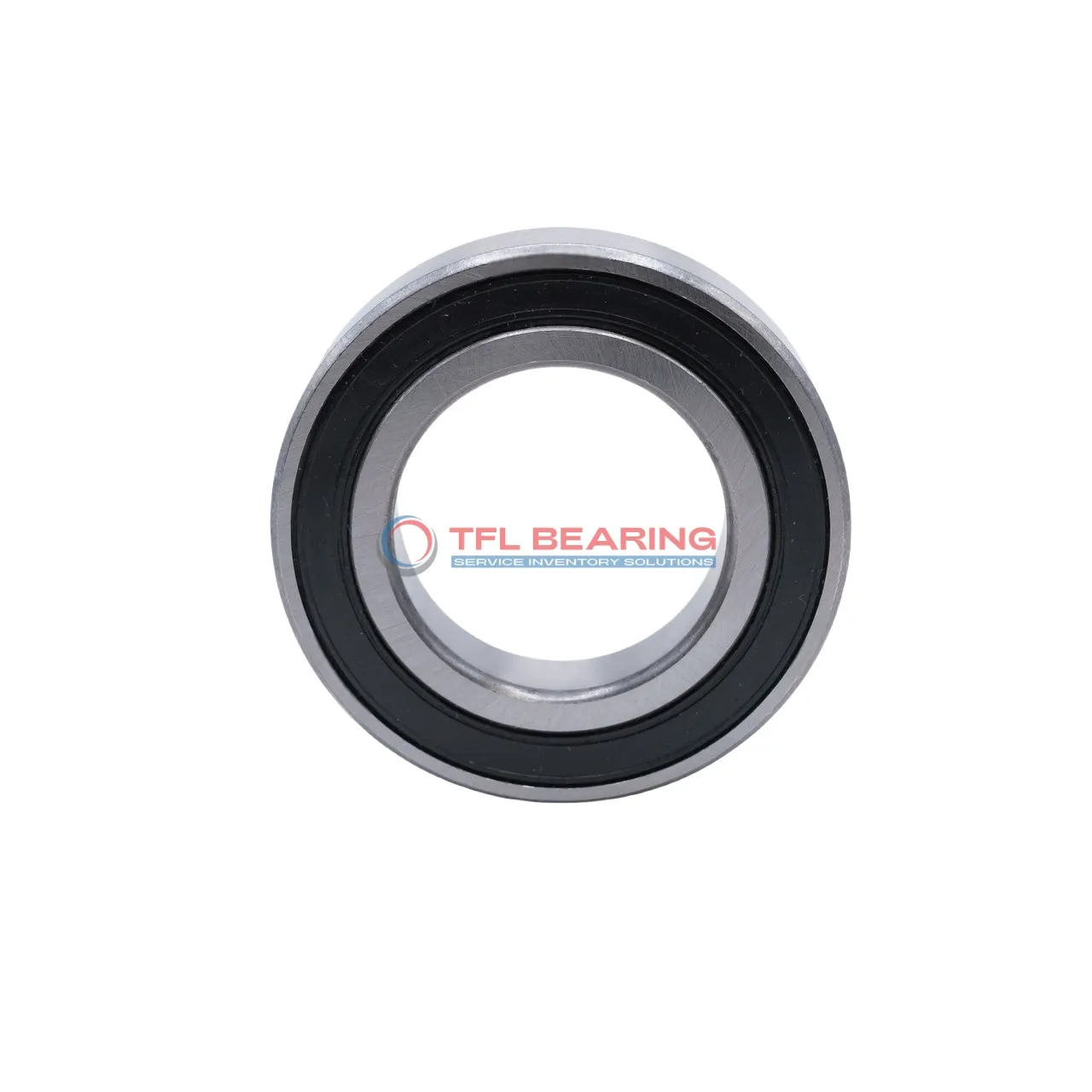

Single Row Deep Groove Ball Bearings 6308-RS1/C3

The 6308-RS1/C3 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 915 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s ideal for applications like electric motors or pumps where radial loads are common.

Weighing 620g, it’s a robust choice for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6308-RS1/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 23 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 915 lbf
Static Radial Load 5395 lbf
Max Speed 7500 rpm
Weight 620 g

Single Row Deep Groove Ball Bearings 6308-RS1/C3 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6308-RS1/C3 Bearing

6308-RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its sealed design protects against dust and moisture, making it suitable for various environments.

The C3 radial clearance ensures smooth operation under different temperature conditions.
With a maximum speed of 7,500 rpm, it delivers reliable performance in demanding applications.

6308-RS1/C3 Bearing’s durable construction reduces maintenance needs, saving time and costs.

Application

Industrial Uses of 6308-RS1/C3 Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris.
The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6308-RS1/C3 Bearing Used?
You’ll often find it in automotive applications like alternators and water pumps, thanks to its radial load capacity.
The chrome steel construction also makes it durable for long-term use.

Perfect Fit for Automation: 6308-RS1/C3 Bearing
It works well in robotic arms and assembly line equipment, providing smooth rotation under moderate loads.
The sealed feature reduces maintenance needs in dusty environments.

Light-Duty vs Heavy-Duty: Best Uses for 6308-RS1/C3 Bearing
For light-duty tasks, it’s great in household appliances like washing machines.
In heavier industrial settings, it handles radial loads in gearboxes reliably.

Medical vs Industrial: Where 6308-RS1/C3 Bearing Excels
While not typically used in medical devices, it’s ideal for industrial fans and small machinery.
The temperature range suits most factory conditions without issues.
