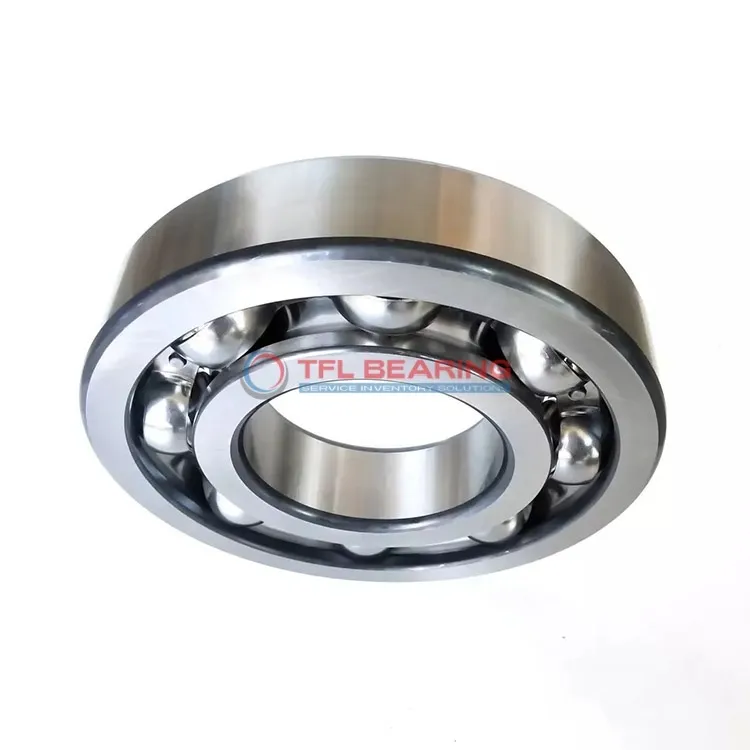

Single Row Deep Groove Ball Bearings 6308/HC5C3

Single Row Deep Groove Ball Bearings 6308/HC5C3

The 6308/HC5C3 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 915 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design allows for easy lubrication, while the silicon nitride balls reduce friction for quieter performance. The chrome steel cage adds durability, making it suitable for long-term use.

This bearing fits well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 620g, it’s a robust choice for industrial settings. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308/HC5C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
  • price（$） 219.672
Single Row Deep Groove Ball Bearings 6308/HC5C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6308/HC5C3 Bearing

6308/HC5C3 Bearing is built with chrome steel rings and silicon nitride balls, offering excellent radial load capacity.
Its dynamic radial load reaches 915 lbf, making it suitable for various industrial applications.

The C3 radial clearance ensures smooth operation even under varying temperature conditions.
With a maximum speed of 7,500 rpm, it balances performance and durability.

6308/HC5C3 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication and maintenance.

Application

Common Applications of 6308/HC5C3 Bearing
In industrial settings, 6308/HC5C3 Bearing is widely used in pumps and electric motors due to its reliable radial load capacity. The open design and C3 clearance make it suitable for moderate-speed operations with thermal expansion considerations.

Where Is 6308/HC5C3 Bearing Used?
You’ll often find 6308/HC5C3 Bearing in automotive applications like alternators and wheel hubs, where its silicon nitride balls reduce friction. The metric dimensions ensure easy integration with standard European and Asian vehicle components.

Built for Heavy-Duty Use: 6308/HC5C3 Bearing
This bearing handles radial loads effortlessly in conveyor systems and agricultural machinery. Its chrome steel construction offers durability, while the C3 clearance accommodates slight misalignments in rugged environments.

Medical vs Industrial: Where 6308/HC5C3 Bearing Excels
In medical devices like centrifuges, 6308/HC5C3 Bearing provides smooth rotation with minimal noise. For industrial gearboxes, its high static load rating ensures stability under constant stress.

Practical Applications of 6308/HC5C3 Bearing
Household appliances like washing machines benefit from 6308/HC5C3 Bearing’s balanced performance. The ABEC 1 tolerance strikes a good compromise between precision and cost for everyday use.
