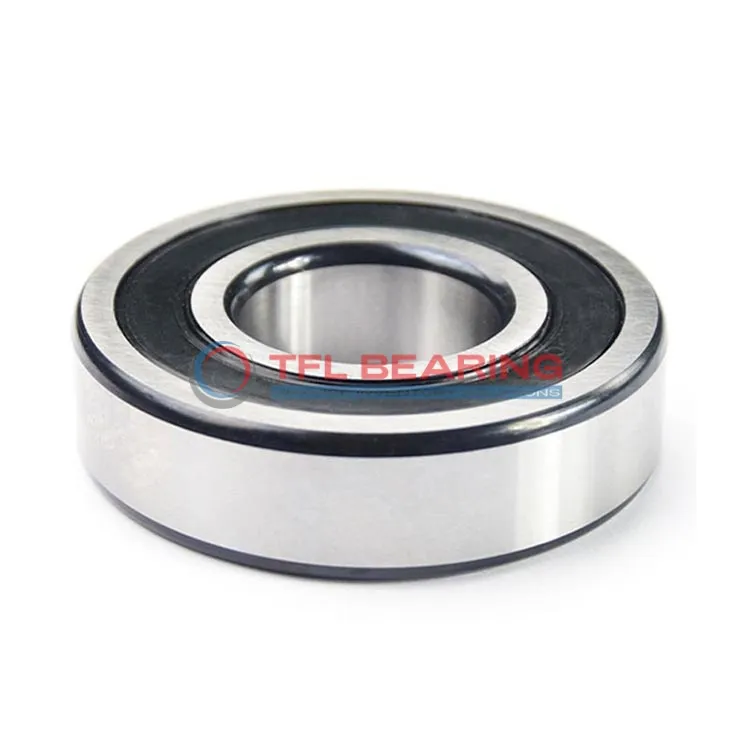

Single Row Deep Groove Ball Bearings 6307-RS1Z GJN

The 6307-RS1Z GJN is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its design features one shielded side and one sealed side, offering protection against dust and moisture. The chrome steel cage enhances durability, making it suitable for long-term use.

This bearing works well in temperatures ranging from -30°C to 120°C. It’s interchangeable with SKF bearings, providing a reliable replacement option.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 457g, it’s a robust yet manageable choice for various industrial needs. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6307-RS1Z GJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type One Side Shielded,One Side Seal
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 35 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 21 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 7509 lbf
Static Radial Load 4339 lbf
Max Speed 8500 rpm
Weight 457 g
price（$） 8.1

Single Row Deep Groove Ball Bearings 6307-RS1Z GJN dimension drawing

Download DWG Download PDF

Features

How Does 6307-RS1Z GJN Bearing Reduce Friction?

6307-RS1Z GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while minimising friction during operation.

With a dynamic radial load capacity of 7509 lbf, it handles demanding applications efficiently.
The one-side shielded and one-side sealed design helps retain lubrication, further reducing wear.

Operating at temperatures from -30°C to 120°C, it remains reliable in varied conditions.
Its ABEC 1 tolerance class provides consistent performance for general industrial use.

Application

Common Applications of 6307-RS1Z GJN Bearing
The 6307-RS1Z GJN Bearing is widely used in industrial machinery, such as electric motors and pumps, where its single-row design handles radial loads efficiently. The shielded and sealed sides help keep contaminants out, extending service life in dusty environments.

In automotive applications, 6307-RS1Z GJN Bearing fits well in wheel hubs and alternators, offering reliable performance under constant rotation. Its chrome steel construction ensures durability even with frequent starts and stops.

For household appliances like washing machines, 6307-RS1Z GJN Bearing provides smooth operation thanks to its balanced radial clearance. The sealed side prevents grease leakage, making it low-maintenance for everyday use.

Automation systems benefit from 6307-RS1Z GJN Bearing’s consistent performance in conveyor belts and robotic arms. The ABEC 1 tolerance ensures sufficient precision for most general-purpose applications.
