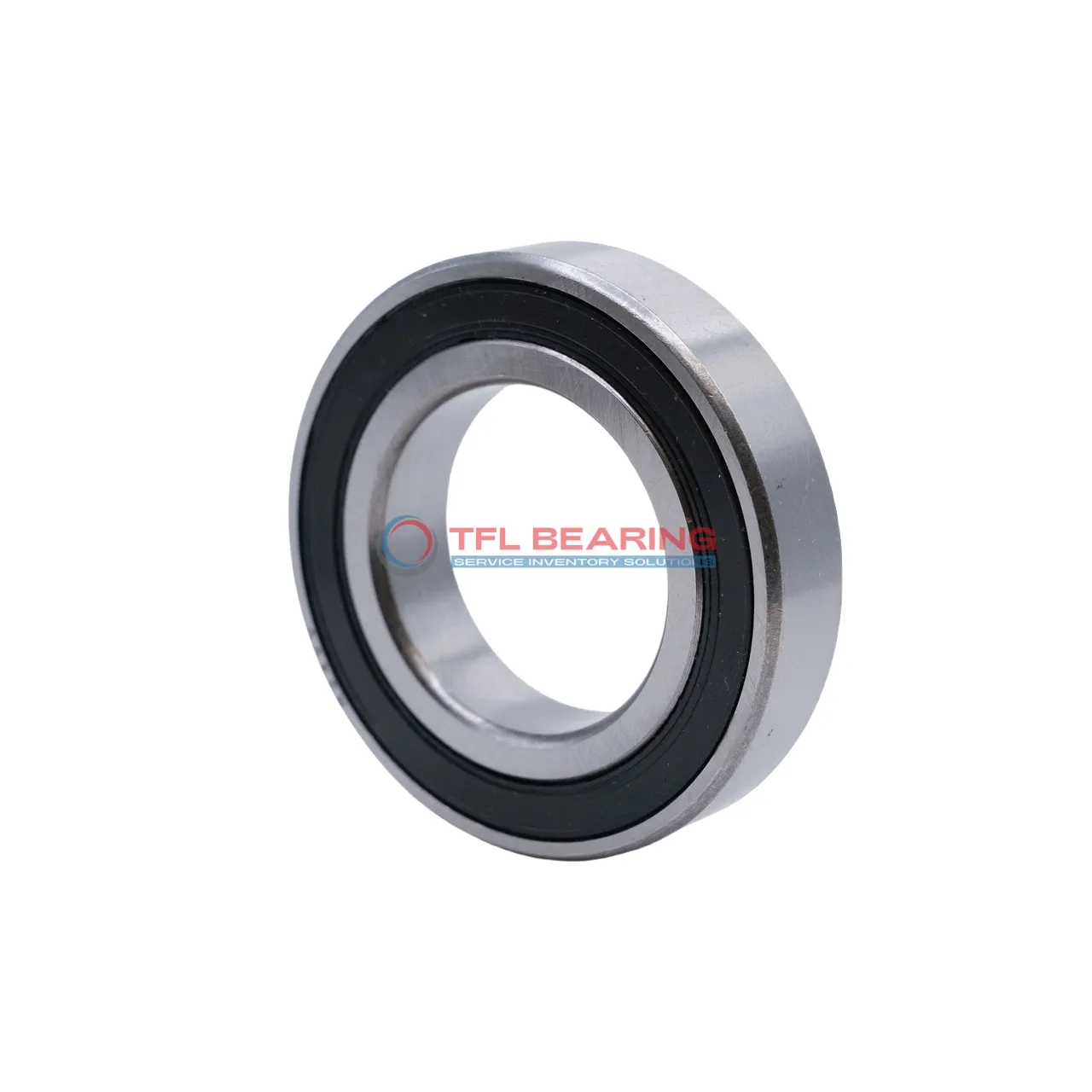

Single Row Deep Groove Ball Bearings 6307-2RS1/W64

Single Row Deep Groove Ball Bearings 6307-2RS1/W64

The 6307-2RS1/W64 is a sealed single row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil lubrication ensures long service life. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 457g, it offers a good balance of strength and weight. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price（$） 14.229
Single Row Deep Groove Ball Bearings 6307-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6307-2RS1/W64 Bearing

6307-2RS1/W64 Bearing is designed with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed construction keeps contaminants out, making it suitable for various environments.

The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a dynamic radial load capacity of 7509 lbf, it handles heavy loads efficiently.

6307-2RS1/W64 Bearing operates smoothly within a temperature range of -30° to 120°C.
Its maximum speed of 8,500 rpm makes it ideal for high-speed applications.

The ABEC 1 tolerance class ensures reliable precision in radial load conditions.
This bearing is interchangeable with SKF models, offering flexibility in replacements.

Application

Common Applications of 6307-2RS1/W64 Bearing
6307-2RS1/W64 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures long service life with minimal maintenance.

In automotive applications, 6307-2RS1/W64 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its chrome steel construction offers good resistance to wear in high-temperature environments.

For home appliances like washing machines, 6307-2RS1/W64 Bearing’s quiet operation and durability make it a dependable choice. The sealed feature also prevents grease leakage, keeping the appliance clean.

In automation systems, 6307-2RS1/W64 Bearing works efficiently in robotic arms and assembly line equipment. Its solid oil lubrication reduces friction, ensuring smooth movement even under continuous use.
