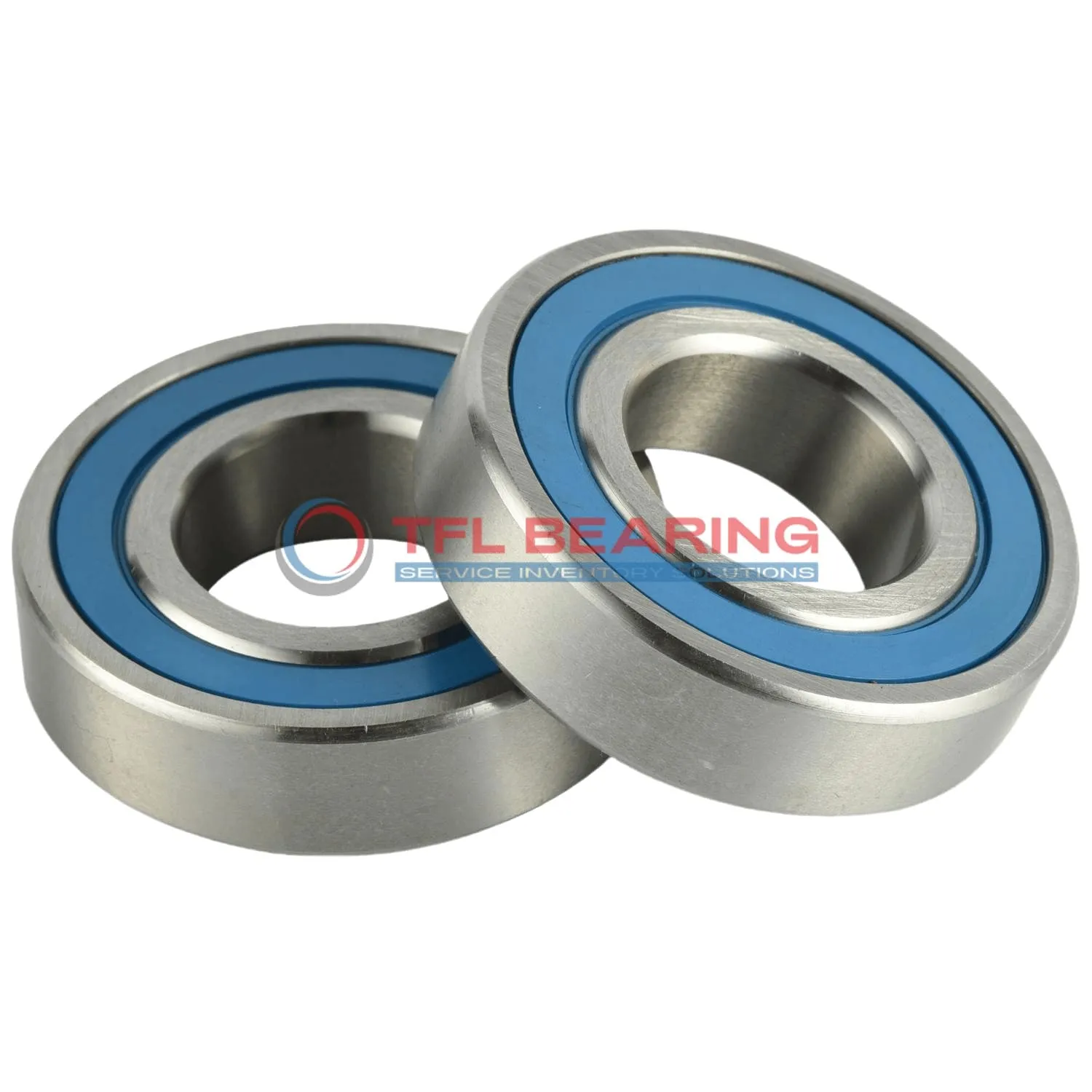

Single Row Deep Groove Ball Bearings 6306-2RSJEM

Single Row Deep Groove Ball Bearings 6306-2RSJEM

The 6306-2RSJEM is a sealed single row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The chrome steel cage adds strength, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a cost-effective alternative.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 346g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g
  • price（$） 8.793
Single Row Deep Groove Ball Bearings 6306-2RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2RSJEM Bearing

6306-2RSJEM Bearing is designed for radial loads, with a dynamic radial load capacity of 6002 lbf.

Its sealed construction protects against dust and moisture, making it suitable for various environments.

The chrome steel rings and balls ensure durability and resistance to wear.

With a maximum speed of 9,600 rpm, it offers reliable performance in high-speed applications.

Application

Common Applications of 6306-2RSJEM Bearing
The 6306-2RSJEM Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep out dust and debris. Its robust construction ensures reliable performance even in demanding environments.

In automotive applications, 6306-2RSJEM Bearing is often found in wheel hubs and transmissions, providing smooth rotation under radial loads. The metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines and fans, 6306-2RSJEM Bearing offers quiet operation and long service life. The sealed design also helps protect against moisture and contaminants.

In automation equipment, 6306-2RSJEM Bearing supports precise movement in robotic arms and assembly lines. Its chrome steel construction ensures durability and consistent performance over time.

Medical devices such as diagnostic equipment benefit from 6306-2RSJEM Bearing’s reliability and low maintenance requirements. The sealed design is particularly useful in clean and sterile environments.
