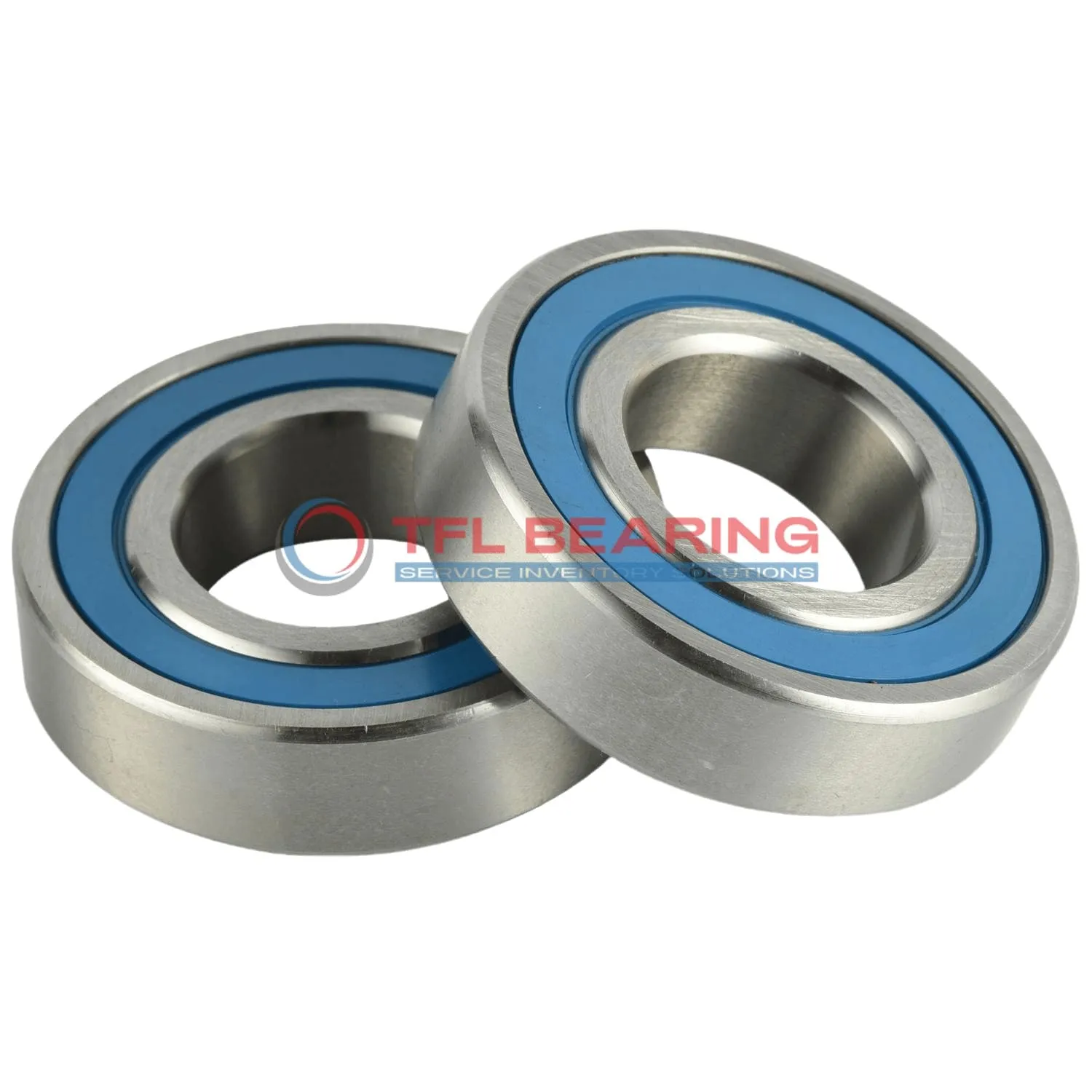

Single Row Deep Groove Ball Bearings 6306-2RS1/LHT23

The 6306-2RS1/LHT23 is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Its sealed design keeps out dust and moisture, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 346g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6306-2RS1/LHT23
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 30 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 72 mm
Outer Dia Tolerance -0.013mm to 0
Width 19 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 6002 lbf
Static Radial Load 3372 lbf
Max Speed 9600 rpm
Weight 346 g
price（$） 9.657

Single Row Deep Groove Ball Bearings 6306-2RS1/LHT23 dimension drawing

Download DWG Download PDF

Features

How Does 6306-2RS1/LHT23 Bearing Reduce Friction?

6306-2RS1/LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.

Chrome steel rings and balls in 6306-2RS1/LHT23 Bearing provide excellent wear resistance and durability.
Its dynamic radial load capacity of 6002 lbf makes it suitable for various industrial applications.

6306-2RS1/LHT23 Bearing operates efficiently within a temperature range of -30°C to 120°C.
With a maximum speed of 9,600 rpm, it offers reliable performance in high-speed scenarios.

The sealed design of 6306-2RS1/LHT23 Bearing reduces maintenance needs, saving time and costs.
Its compact size (30 mm×72 mm×19 mm) allows for easy integration into different machinery setups.

Application

Common Applications of 6306-2RS1/LHT23 Bearing
In industrial settings, 6306-2RS1/LHT23 Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6306-2RS1/LHT23 Bearing Used?
You’ll often find 6306-2RS1/LHT23 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed protection are key. It’s also a reliable choice for small machinery requiring consistent performance.

Built for Heavy-Duty Use: 6306-2RS1/LHT23 Bearing
This bearing excels in conveyor systems and agricultural equipment, handling moderate radial loads with ease. Its ABEC 1 tolerance ensures smooth operation, while the temperature range suits most working conditions.

Automotive vs Industrial: Applications of 6306-2RS1/LHT23 Bearing
In cars, 6306-2RS1/LHT23 Bearing supports components like fans and pulleys, while in factories, it’s ideal for gearboxes and light machinery. The metric sizing makes it versatile for various equipment types.

Perfect Fit for Automation: 6306-2RS1/LHT23 Bearing
Robotic arms and packaging machines benefit from 6306-2RS1/LHT23 Bearing’s smooth rotation and sealed protection. Its static and dynamic load ratings make it suitable for repetitive, precision tasks.
