Single Row Deep Groove Ball Bearings 6305 ETN9

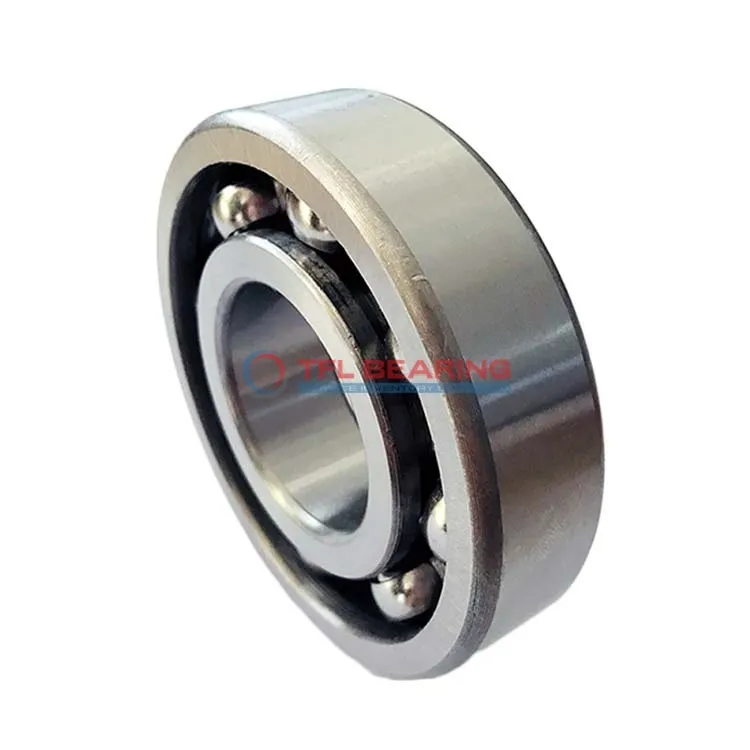

Single Row Deep Groove Ball Bearings 6305 ETN9

The 6305 ETN9 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5845 lbf and spins smoothly at speeds up to 16,000 RPM.

Its open design and nylon cage ensure low friction and easy maintenance, making it reliable for various applications. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for machinery like electric motors or pumps where radial loads are common.

Weighing just 0.22kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305 ETN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 5845 lbf
  • Static Radial Load 3012 lbf
  • Max Speed 16000 rpm
  • Weight 0.22 kg
Single Row Deep Groove Ball Bearings 6305 ETN9 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305 ETN9 Bearing

6305 ETN9 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5845 lbf.
Its nylon cage ensures smooth operation and reduces friction, making it suitable for high-speed applications.
The bearing operates efficiently within a temperature range of -30° to 120°C, adapting to various environments.
With a maximum speed of 16,000 rpm, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of 6305 ETN9 Bearing
The 6305 ETN9 Bearing is commonly used in machine tools and conveyor systems, where its single-row design handles radial loads efficiently. Its open seal type simplifies maintenance, making it suitable for industrial environments.

In automotive applications, 6305 ETN9 Bearing fits well in gearboxes and electric motors, ensuring smooth rotation under varying speeds. The P6 tolerance class provides the precision needed for reliable performance in vehicles.

For automation equipment, 6305 ETN9 Bearing’s nylon cage reduces friction in robotic arms and 3D printers. Its chrome steel construction offers durability, even in high-speed operations.

Where Is 6305 ETN9 Bearing Used?
You’ll often find 6305 ETN9 Bearing in household appliances like washing machines and fans, where quiet operation matters. Its metric sizing ensures compatibility with a wide range of consumer products.

In medical devices, 6305 ETN9 Bearing’s stable performance supports imaging equipment and lab instruments. The temperature range of -30° to 120°C makes it versatile for different clinical settings.
